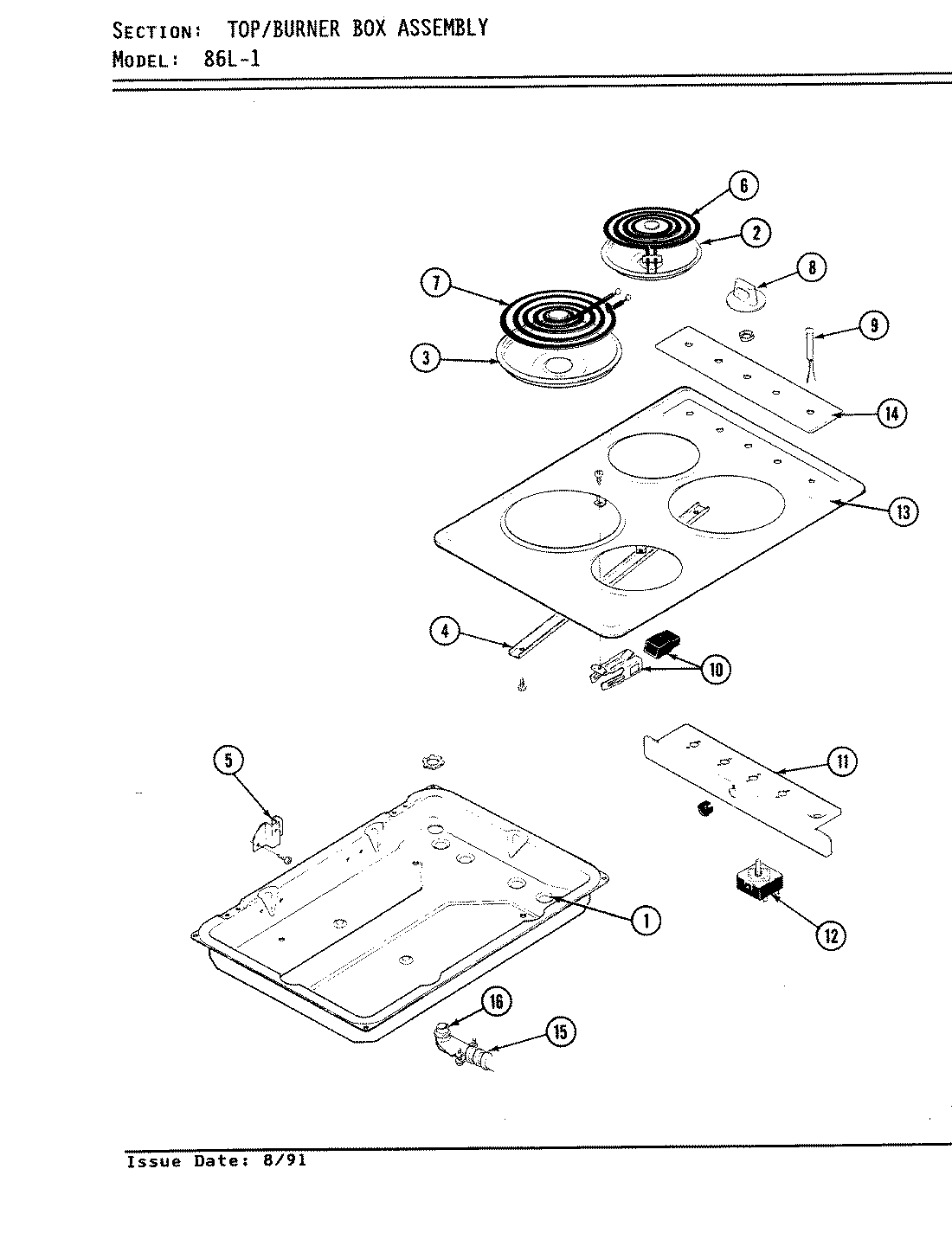

| 1 | BOTTOM, BURNER BOX |
| 2 | MAY 7725P008-60 |
| 3 | MAY 7725P009-60 |
| 4 | MAY 3802F070-80 |
| 5 | MAY 7111P002-60 |
| 5 | MAY 7101P063-60 |
| 5 | MAY 7118P004-60 |
| 5 | MAY 7807P003-60 |
| 5 | BRACKET, MAIN TOP SUPPORT |
| 6 | MAY 7406P037-60 |
| 7 | MAY 7406P030-60 |
| 7 | MAY 7406P039-60 |
| 8 | WP7737P026-60 Whirlpool Knob Switch |
| 9 | MAY 8112P001-60 |
| 9 | SCREW, GROUND (GRN) |
| 9 | MAY Y04000016 |
| 9 | MAY 7719P026-60 |
| 10 | MAY 7112P026-60 |
| 10 | MAY 7101P042-60 |
| 10 | MAY 7401P014-60 |
| 11 | MAY 3604F133-80 |
| 12 | MAY 7103P021-60 |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 13 | MAY 2002W063-81 |
| 14 | MAY 7720P147-60 |
| 14 | MAY 8008P014-60 |
| 15 | MAY 3801F072-45 |
| 15 | MAY 3414F035-44 |
| 16 | MAY 7417P004-60 |
| 16 | MAY 8018P001-60 |
