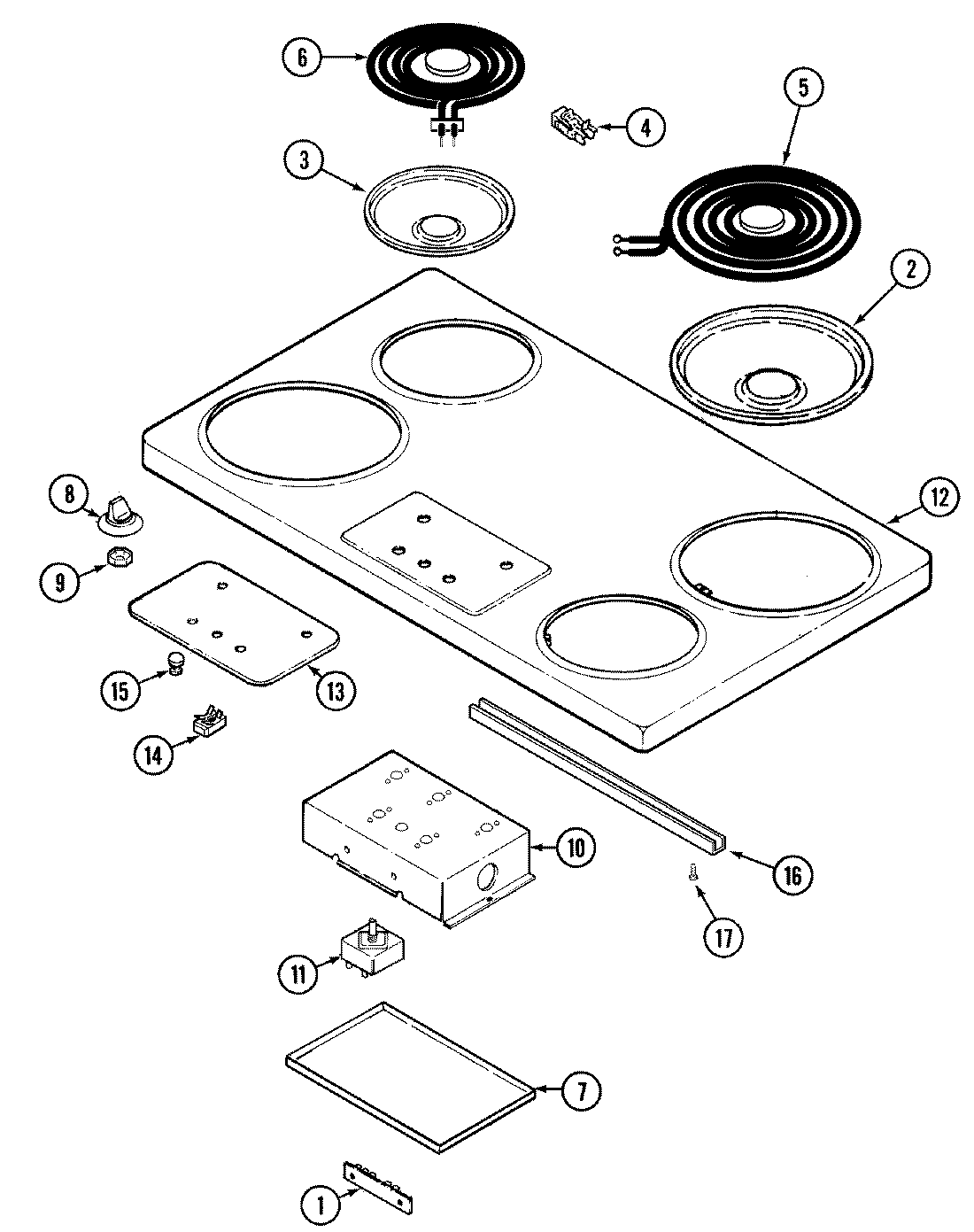

8710VV 02 – TOP ASSEMBLY

8710VV 02 – TOP ASSEMBLY

Written by

in

8710VV 02 – TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 7401P015-60
2DRIP BOWL 8" W/HOLE CHROME
3WPW10196406 Whirlpool 6" Chrome Drip Bowl
4MAY 1430306K
4SCREW
5MAY 7406P039-60
6MAY 7406P037-60
7MAY 4005F086-51
8MAY 74002090
9MAY 7103P021-60
10MAY 74002068
11MAY 74002069
12MAY 74002087
13MAY 74002089
14W10852510 Whirlpool Indicator Light
15W11690131 Whirlpool Light Lens
16BRACE, TOP
17MAY 7101P059-60
18MAY 74002091
19SCREW (10ABX1.0-ZN)
20MAY 16000329
20MAY 74002073
