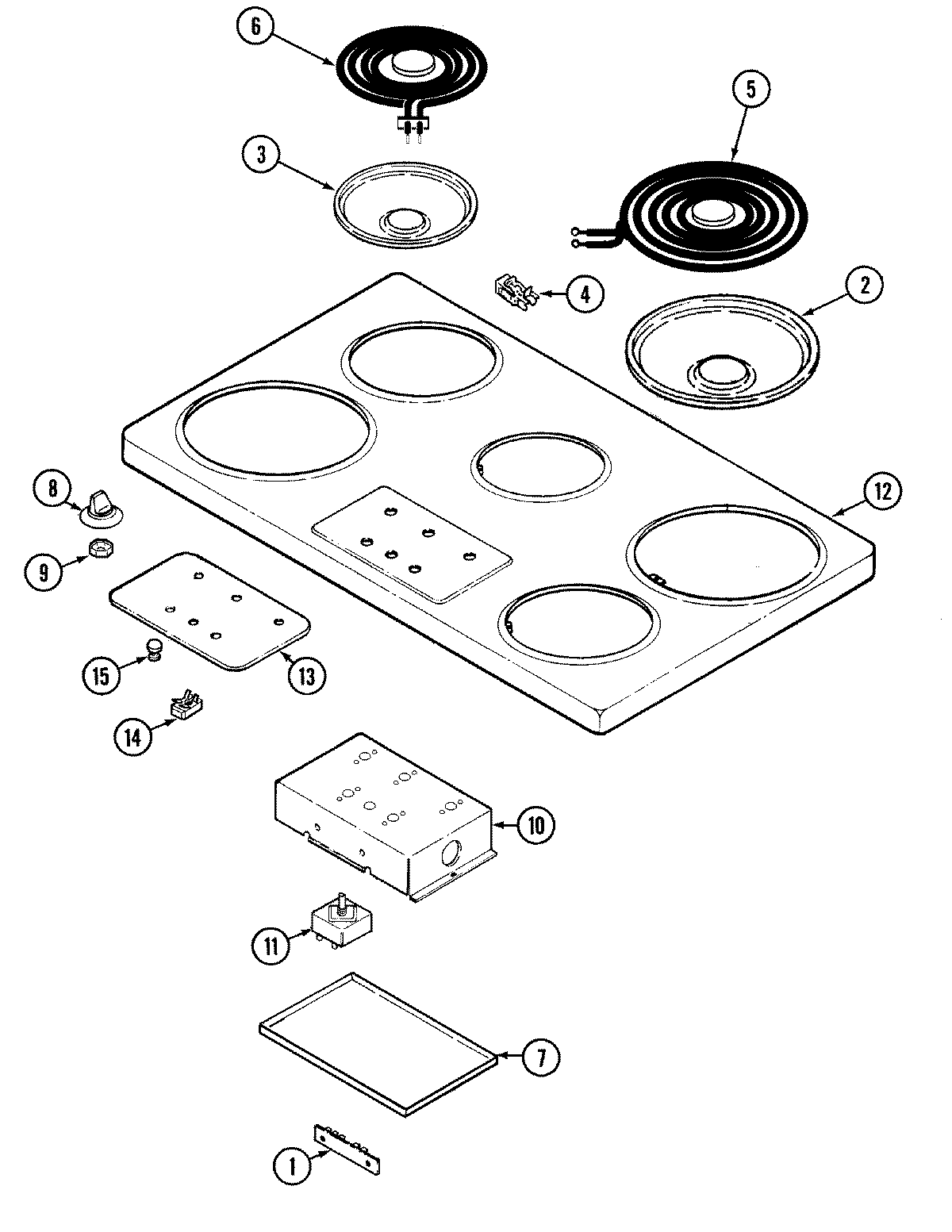

8720VQ 02 – TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 7401P015-60
2DRIP BOWL 8" W/HOLE CHROME
3WPW10196406 Whirlpool 6" Chrome Drip Bowl
4SCREW
4MAY 1430306K
5WP660532 Whirlpool Oven Surface Element
5MAY 7406P039-60
6MAY 7406P037-60
600484791 Bosch Oven Heating Element
7MAY 7101P059-60
7MAY 4005F086-51
8MAY 74005103
9MAY 7103P021-60
10MAY 74002068
11MAY 74002069
12MAY 74005104
13MAY 74005164
13MAY 74002193
14W10852510 Whirlpool Indicator Light
15W11690131 Whirlpool Light Lens
16MAY 74002072
17SCREW (10ABX1.0-ZN)
18MAY 74002073
