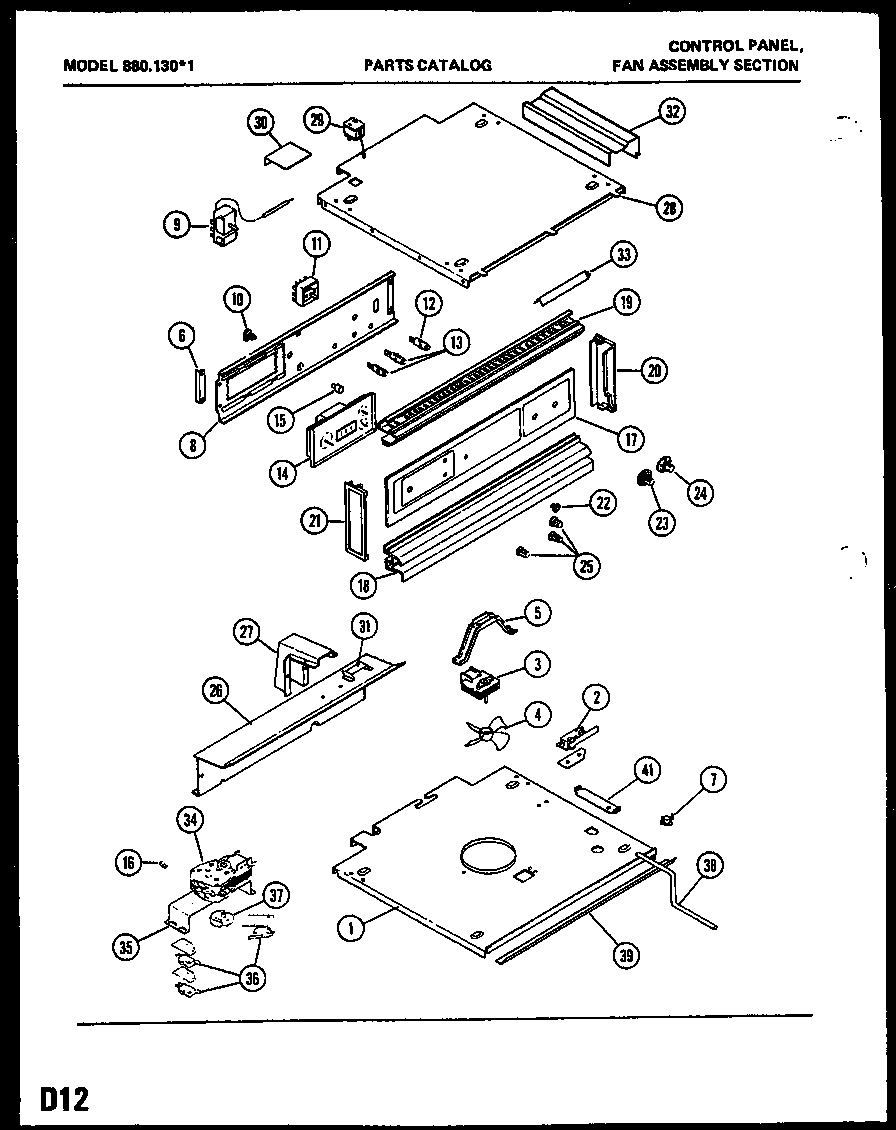

880.130×1 01 – CONTROL PANEL. FAN ASSY SECTION – Aparts

880.130×1 01 – CONTROL PANEL. FAN ASSY SECTION

Products

Position	Product
1	MAY M52D189
2	MAY M14D193
2	MAY M1D704
3	MAY M1D718
3	MAY M12D76
4	MAY M35D35
4	MAY M2D354
5	MAY M8D139
6	MAY M20D114
7	MAY M1D719
7	MAY M1D698
7	MAY M4D96
8	BRKT CONTROL K1317299
9	NET-KIT,THERMOSTAT(K1323714)
10	MAY M14D150
10	MAY M1D656
11	SWITCH, SELECTOR
11	MAY M1D715
12	MAY M9D78
13	MAY M9D79
14	MAY M1D451
14	NET-CLOCK,RANGE
15	MAY M2D346
16	MAY M2D396
17	GLASS, CONTROL PANEL
18	CP BASE
18	MAY M1D701
19	MAY M1D708
19	TOP CONT PNL
20	NOT AVAILABLE
21	MAY M1D713
21	NOT AVAILABLE
22	MAY M2D356
23	MAY M6D198
24	THERMOSTAT KNOB K1324275
25	KNOB TIMER
26	MAY M52D145
27	MAY M65D142
28	MAY M72D62
29	MAY M5D205
30	MAY M8D144
31	MAY M8D143
32	MAY M20D121
33	MAY M8D151
34	MAY M1D788
34	NET-ASSY,LOCK MOTOR
35	BRACKET, LOCK ASM. MTG.
36	MAY M1D782
36	MAY M14D191
36	MAY M5D244
37	SPRING PIN
37	MAY M1D781
37	CAM DOOR LCK
38	MAY M1D475
38	MAY M8D235
38	MAY M8D171
39	MAY M1D706
39	MAY M20D201
