880652124P0 02 – CONTROL PANEL PARTS

880652124P0 02 – CONTROL PANEL PARTS

Written by

in

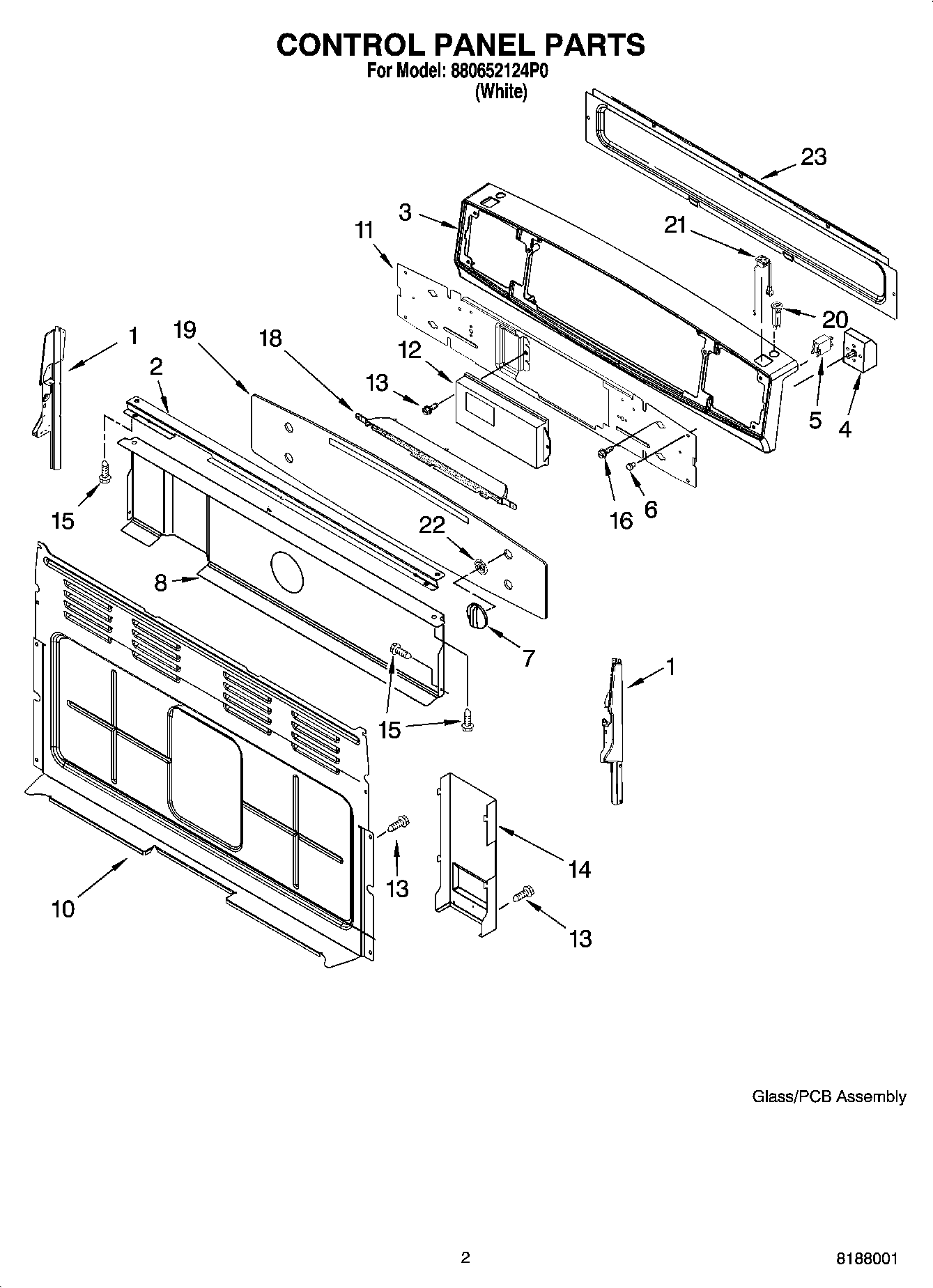

880652124P0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2Bracket, Console
3Panel, Backguard
4Switch, Infinite (LF & RF)
4W11233068 Whirlpool Infinite Switch
5Light, Indicator
6Lens, Light
7Knob, Infinite (4)
8Shield, Heat
10Cover, Rear
11Bracket, Control
12Control, Range
13SCREW
14WPW10326122 Whirlpool Black Cover
153196166 Whirlpool Screw
16WP3400882 Whirlpool Screw
18Module, Lighting
19Glass/PCB Assembly
20WP9757601 Whirlpool Breaker
21Receptacle (2)
22Nut, Retainer
23Cover, Rear (Console)
