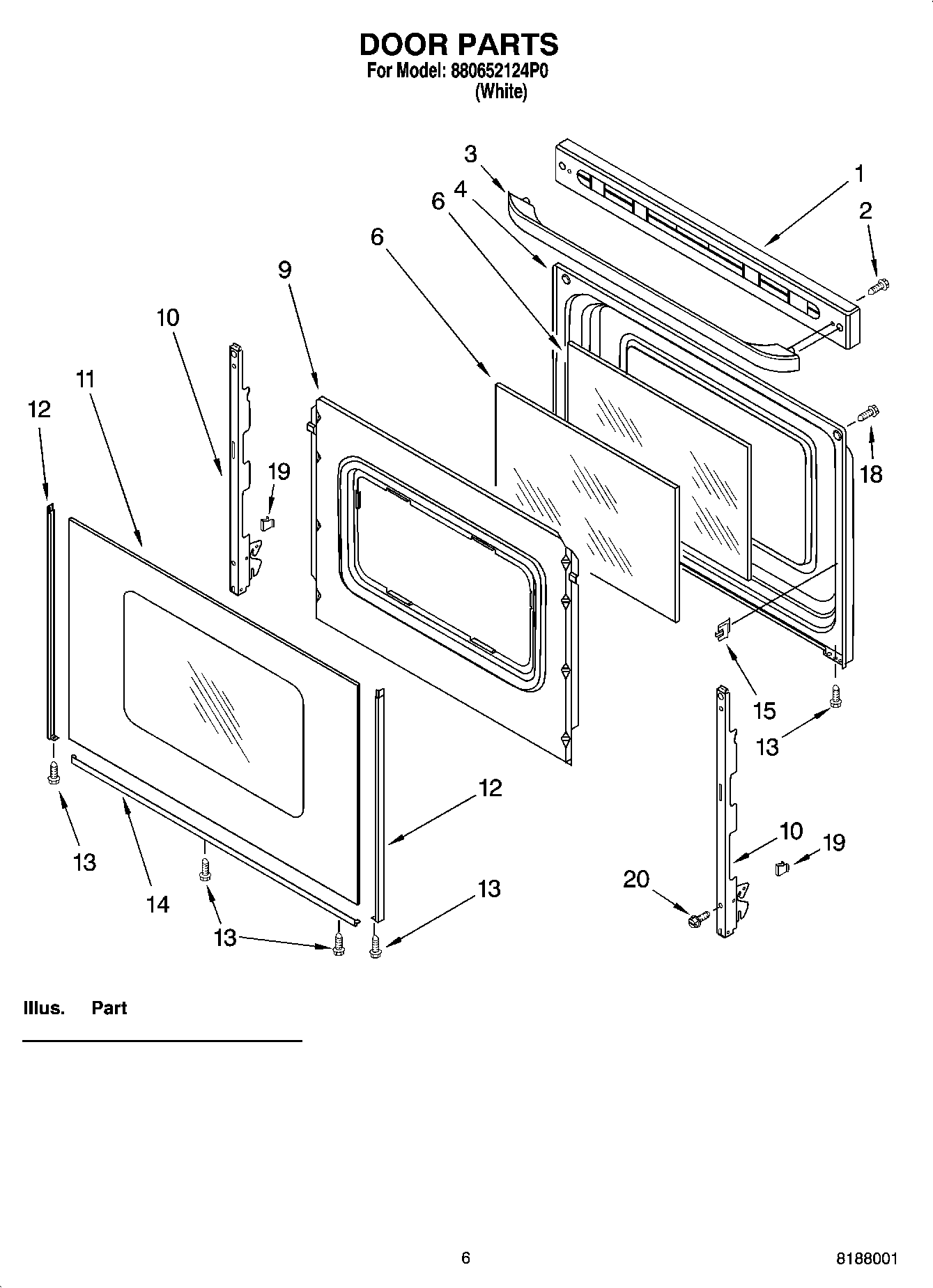

880652124P0 05 – DOOR PARTS, MISCELLANEOUS PARTS

880652124P0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

880652124P0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI143333A
	W10465644 Whirlpool Wire Harness
	WPL 8524132
	WPL 8273266
	WP3196154 Whirlpool Screw Assembly
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	3196896 Whirlpool Clip
	WPL 9756350
	WPL 9756779
	WPL ARI143332A
	WPL ARI143331A
	WPL ARI143330A
	WPL ARI143329A
	WPL ARI143328A
	WPL ARI143327A
	WPL ARI143326A
	WPL 9759775
	WPL 9759774
	WPL 9759593
	WPL 9758550
	WPL 9757289
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
1	Trim, Top
2	WP3196164 Whirlpool Screw
3	Handle, Door
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
9	Retainer, Insul.
10	Hinge, Door (2)
11	WPW10118454 Whirlpool Door Outer Glass White
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
