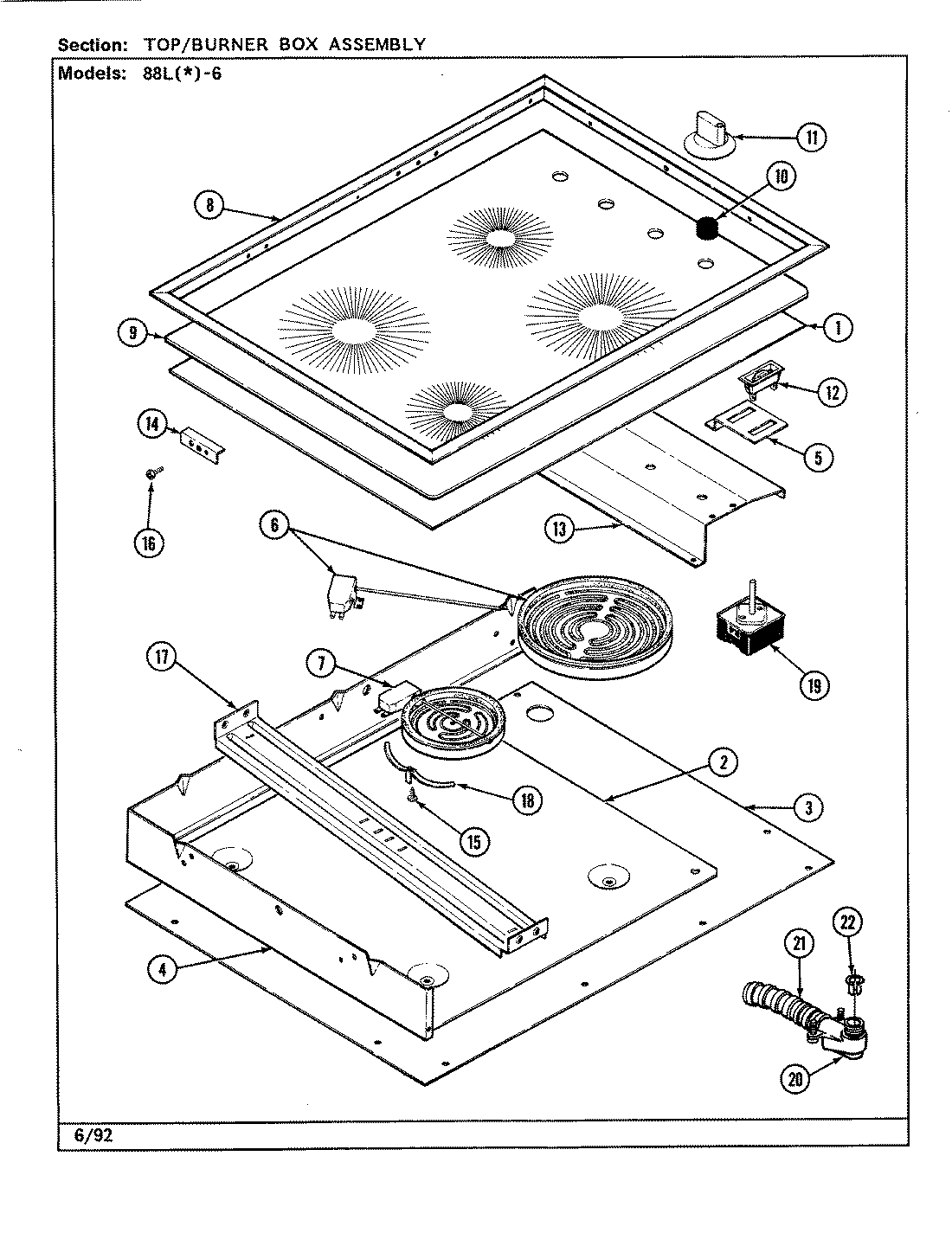

88LK-6 01 – TOP ASSEMBLY

Products

Position	Product
1	MAY 3601F164-80
2	MAY 3601F173-51
3	MAY 4011F136-80
4	MAY 4016F023-45
5	MAY 3801F188-45
6	MAY 7406P057-60
6	MAY 7406P073-60
7	MAY 7406P074-60
7	MAY 7406P058-60
8	MAY 7746P023-60
9	MAY 7918P046-60
9	MAY 7918P008-60
10	MAY 8008P033-60
11	WP7737P026-60 Whirlpool Knob Switch
12	MAY 7407P074-60
13	MAY 3605F143-45
13	WP7101P072-60 Whirlpool Screw
13	MAY 7103P071-60
13	MAY 3605F175-45
14	MAY 3804F092-45
15	MAY 7101P042-60
16	MAY 7101P059-60
17	MAY 3807F326-80
18	MAY 8004P015-60
19	MAY 7403P267-60
19	MAY 7403P266-60
19	W11122008 Whirlpool Surface Element Switch
20	MAY 7417P004-60
21	MAY 3414F035-44
22	MAY 8018P001-60
23	MAY 8308P002-60
23	WA906B Whirlpool Cooktop Glass Scraper
23	MAY 3801F072-45
