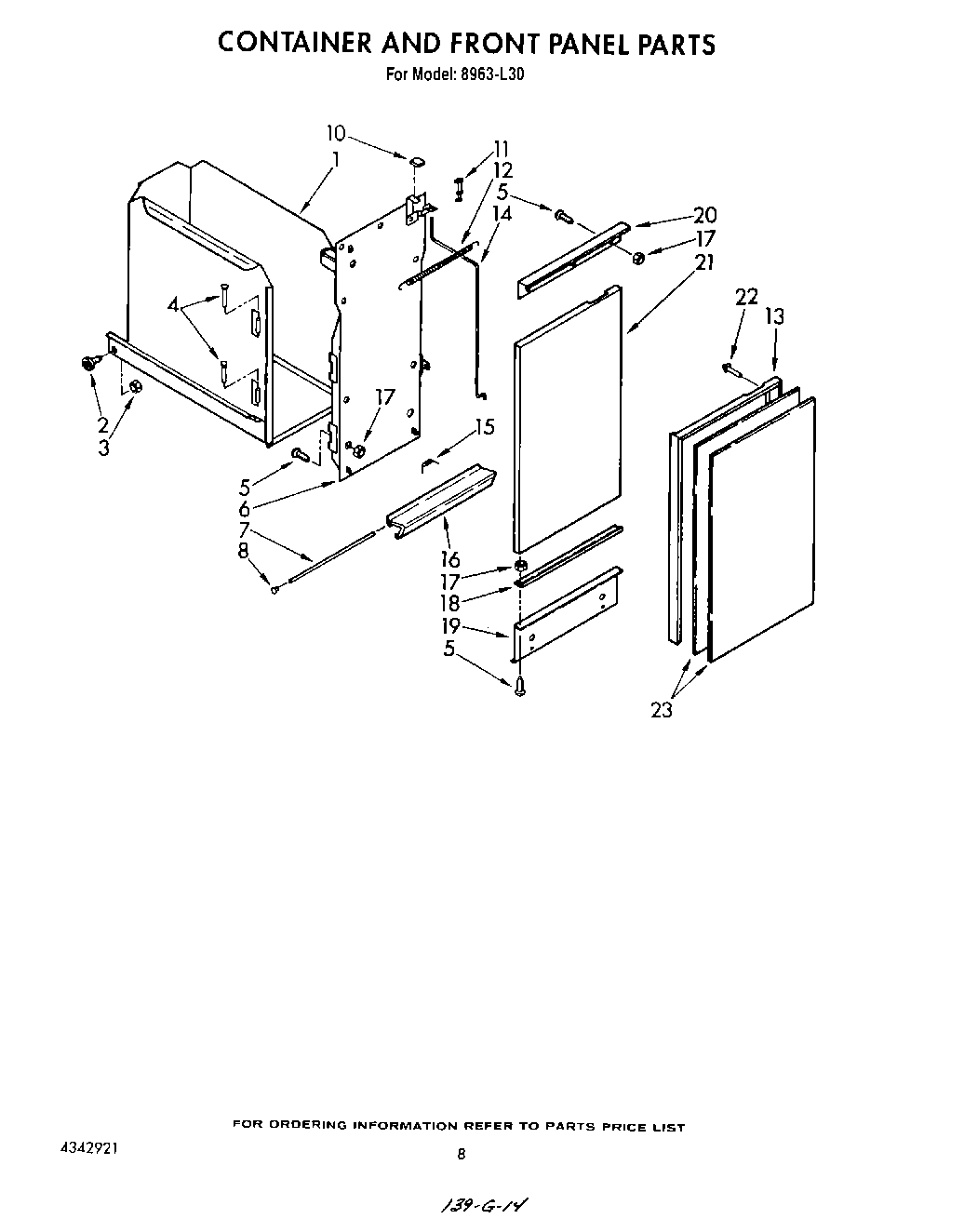

8963L30 05 – CONTAINER AND FRONT PANEL , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Manual, Owners
1	Drawer Assembly (Includes No.19 and No.14)
2	Roller (4)
3	Nut, Whizlock (4)
4	Pin, Hinge
5	Screw, 8-18 x 1/2 (19)
6	Liner, Door (Includes No.11, No.12 And No.14)
7	Pin, Hinge (Foot Pedal)
8	Retainer, Foot Pedal (2)
10	Knob, Latch Lever
11	Clip, Link Rod
12	Spring, Latch
13	Trim, Door
14	Latch, Link Rod
15	Spring, Foot Pedal
16	Foot Pedal And Push Rod Assembly
17	Nut
18	Trim, Door Bottom
19	Space Cover, Toe
20	Handle
21	Door
22	Rivet, Pop (6)
23	Harness, Wiring
23	Panel, Door
