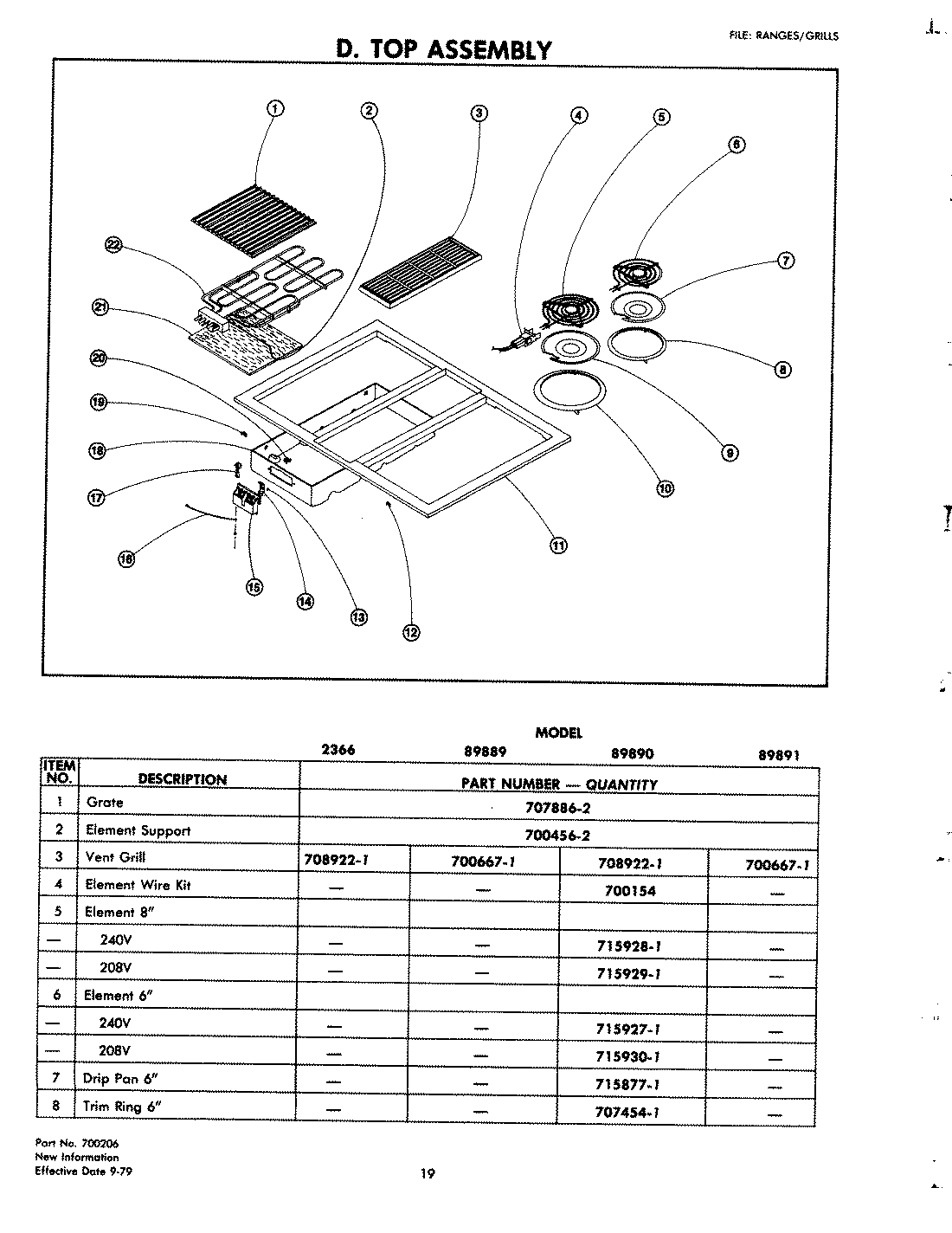

89890 03 – TOP ASSEMBLY

89890 03 – TOP ASSEMBLY

Written by

in

89890 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 707886
2MAY 700456
3MAY Y708922
4MAY 700154
5MAY 715928
5MAY 715929
6MAY Y715930
6MAY 715927
7715877 Whirlpool Electric Range 6" Chrome Drip Pan
8WPY707454 Whirlpool Range Chrome 6" Adaptor Ring
9715878 Whirlpool Range 8" Chrome Drip Pan
10WPY707453 Whirlpool Range 8" Chrome Adaptor Ring
11MAY 700669
13MAY Y707172
14MAY 715121
15MAY Y715120
17MAY Y708558
17MAY Y707341
18MAY Y700673
19WP90767 Whirlpool Screw
20MAY Y700503
21MAY 708929
22MAY 700491
22MAY 700492
