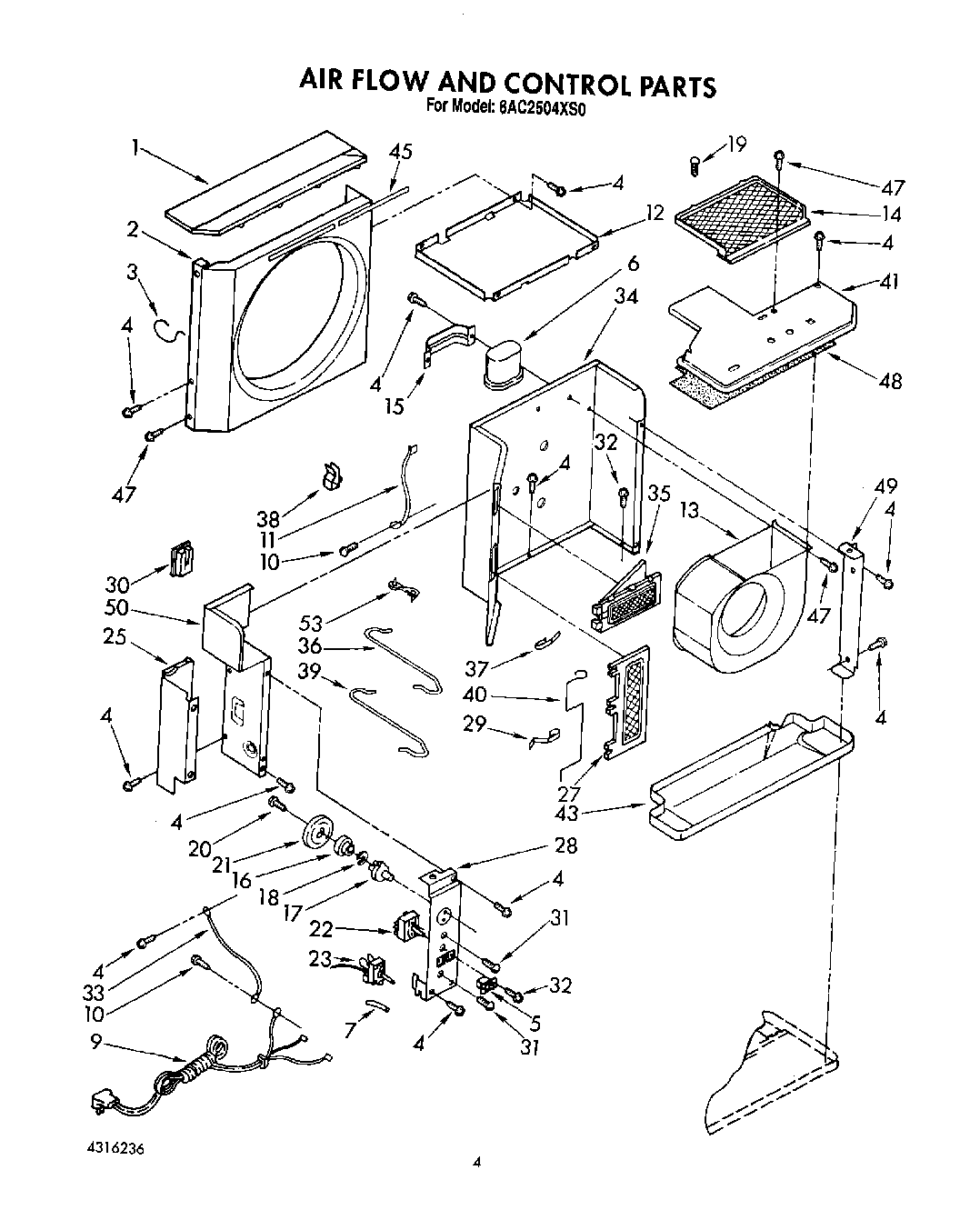

8AC2504XS0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud, Condenser
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Switch, Sliding
6	Capacitor, Run
7	Insulation, Sleeve
9	Cable, Appliance
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	Support, Unit
13	Housing, Blower Wheel
14	Guard, Impeller
15	Bracket (Upper)
16	Bushing, Shaft
17	Shaft, Control
18	Washer
20	Screw, 7-18 x 5/8
21	Cam, Exhaust
22	Switch, Rotary (On - Off)
23	Switch, Thermostat
25	Cover, Controls
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing
35	Door, Exhaust
36	Wire, Control (Fresh Air)
37	Spring, Door
38	Clamp, Cable
39	Wire, Control
40	Actuator, Door
41	Cover, Evaporator
43	Pan, Condensate (Includes No.49)
45	Seal, Condenser Fin
45	seal, strip (shroud) (side)
45	WP854334 Whirlpool Air Conditioner Sealing Strip
47	WP488729 Whirlpool Refrigerator Door Screw
48	Insulation, Evaporator Cover
49	Adapter, Evaporator Header Plate
50	Extension Assembly, Divider Wall
53	Clamp, Cable
