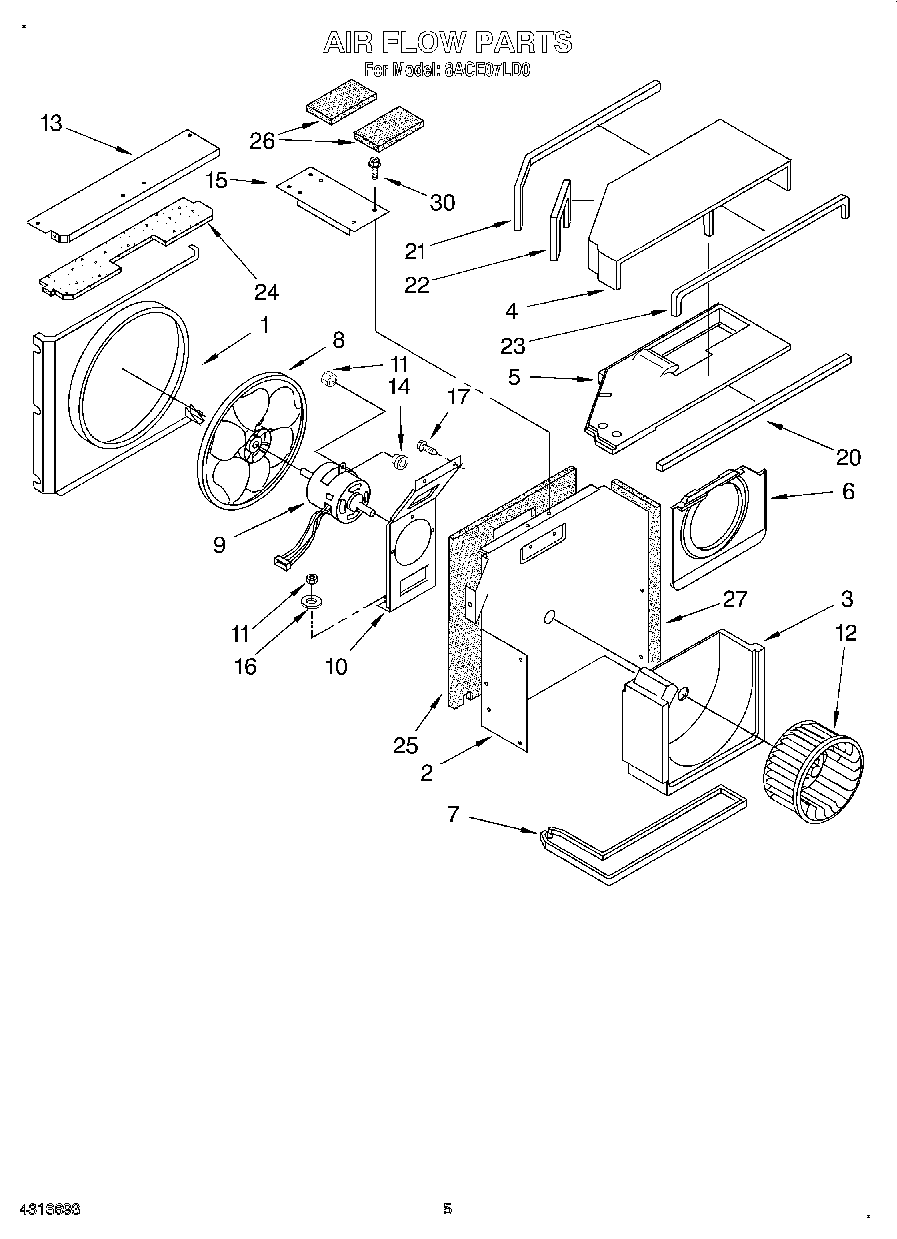

8ACE07LD0 03 – AIRFLOW

Products

Position	Product
1	Shroud, Condenser
2	Wall, Dividing
3	Scroll, Air Housing
4	Hood, Air Housing
5	Cover, Evaporator Top
6	Orifice, Air Housing
7	Pan, Drain
8	Blade, Fan
9	Motor, Fan
10	Bracket, Motor Mount
11	Nut, Hex 5MM
12	Wheel, Blower
13	Cover, Condenser Top
14	Grommet, Fan Motor
15	Support, Unit
16	Washer, Bonded
17	Screw, 8-18 x 3/8
21	WP854334 Whirlpool Air Conditioner Sealing Strip
24	Seal, Condenser Top Cover
25	Insulation (Back, Dividing Wall)
26	Seal, Anti-Rub
27	Insulation (Side, Dividing Wall)
30	WP1163283 Whirlpool Air Conditioner Screw
