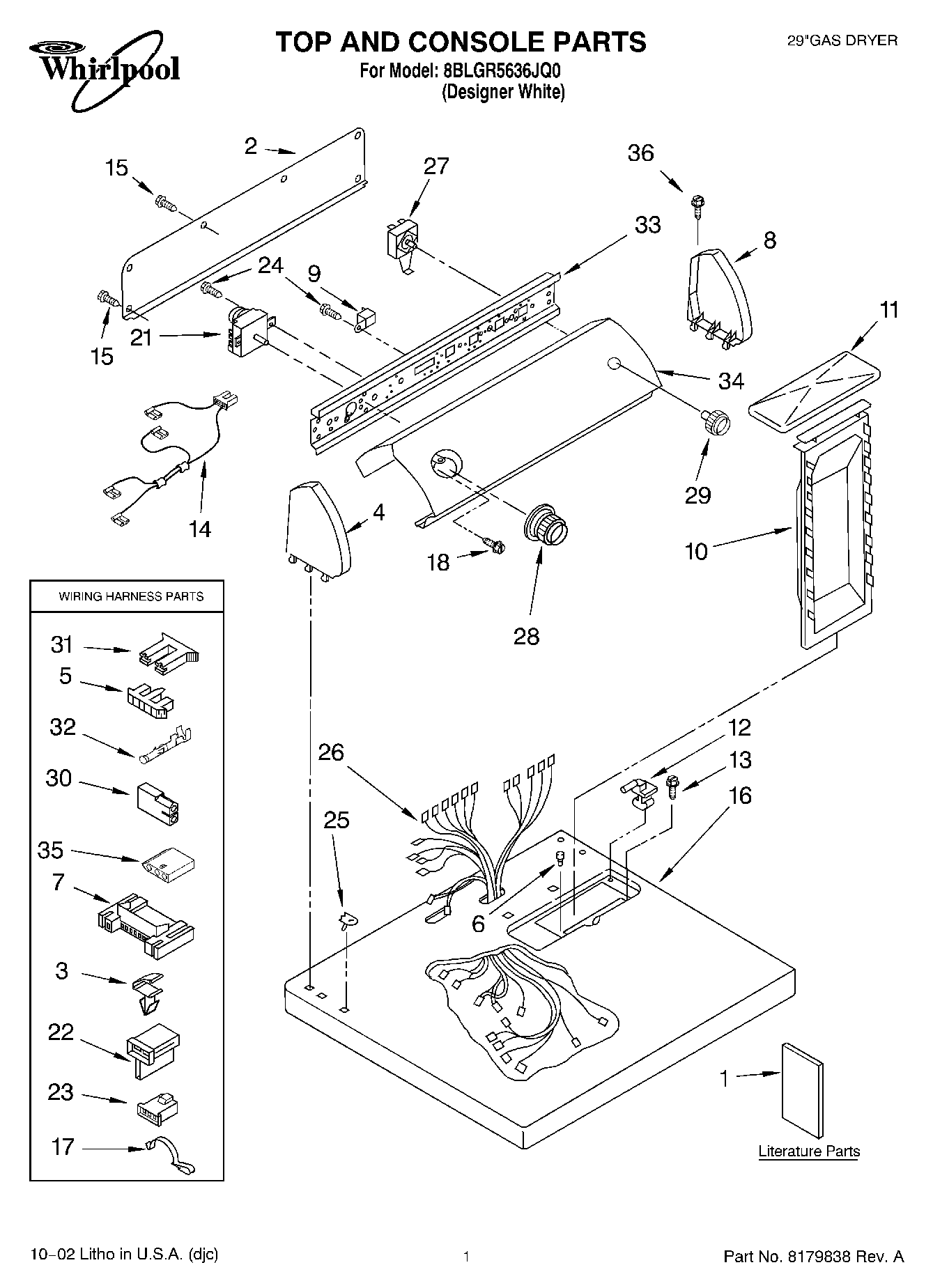

8BLGR5636JQ0 01 – TOP AND CONSOLE, LITERATURE

Products

Position	Product
	Dryer
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Label, Wiring Diagram)
2	W10103406 Whirlpool Rear Panel
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	Bumper, Lint Lid
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper
15	WP693995 Whirlpool Screw
16	Top
17	8528351 Whirlpool Clip
18	3400859 Whirlpool Screw
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	WPW10139210 Whirlpool Screw
25	WP357213 Whirlpool Hinge Stopper
26	Harness, Wiring
27	Switch, Push-To-Start
28	WP3957754 Whirlpool Knob Assembly
29	WP3957799 Whirlpool Knob
30	Receptacle, Latching (2-Way) (Uses Terminal 94614)
31	3354925 Whirlpool Connector
32	WP94614 Whirlpool Terminal
33	Bracket, Control
34	Panel, Control
35	3936144 Whirlpool Connector
36	350938 Whirlpool Spray Gun
36	72017 Whirlpool Appliance Touch-Up Paint White
36	799344 Whirlpool Refrigerator Paint
36	350930 Whirlpool White Spray Paint
36	WP388326 Whirlpool Screw
36	4392065 Whirlpool Dryer Maintenance Kit
36	W11224254 Whirlpool Test Kit
36	3404351 Whirlpool Dryer Rack
