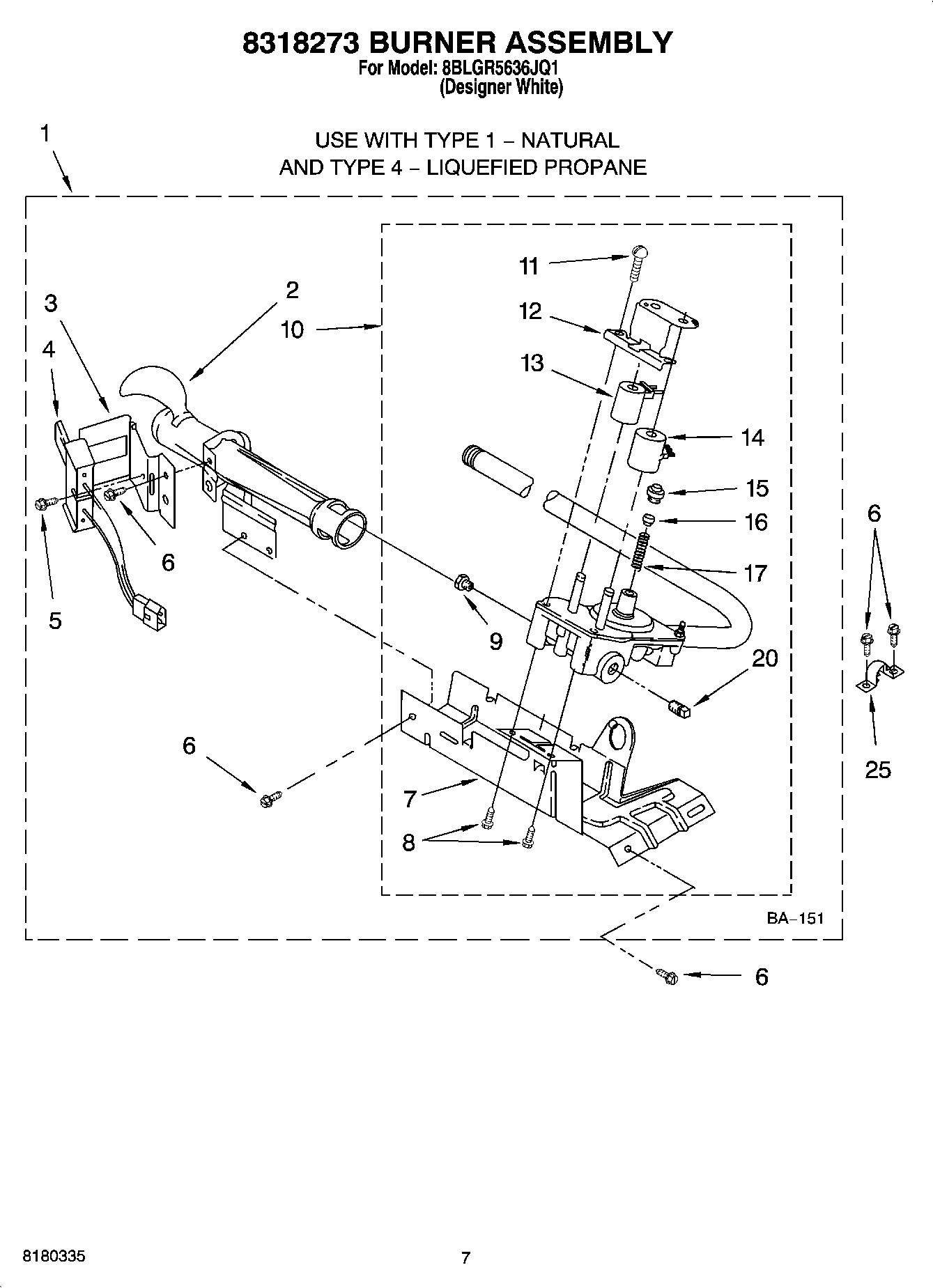

8BLGR5636JQ1 04 – 8318273 BURNER ASSEMBLY

8BLGR5636JQ1 04 – 8318273 BURNER ASSEMBLY

Written by

in

8BLGR5636JQ1 04 – 8318273 BURNER ASSEMBLY

Products

PositionProduct
1279991 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP229742 Whirlpool Gas Orifice
10Valve, 60 Hz. (Includes Pipe & Illus. 7)
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
25Conversion Kit (Type 4) to Type (1) Natural
25FOLLOWING PARTS NOT ILLUSTRATED
25341029 Whirlpool Clamp
