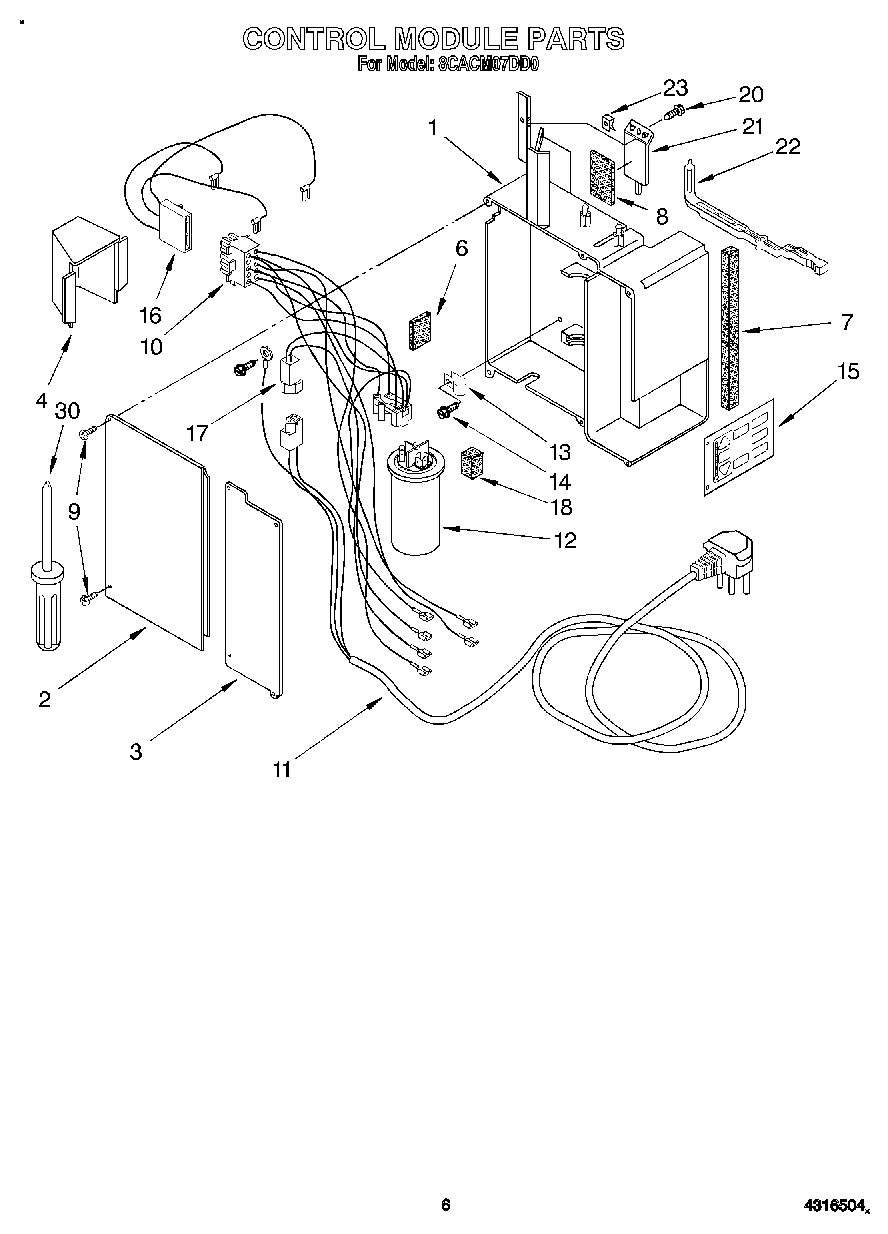

8CACM07DD0 04 – CONTROL MODULE

Written by

Products

Position	Product
1	Housing, Controls (Not Serviceable)
2	Lid, Capacitor
3	Lid, Controls
4	Shield, Rain
6	Seal
7	Seal
8	Seal, Door
9	Screw (Tamper- Resistant)
10	Harness, Wiring 10 Pin (Not Serviceable)
11	Cable, Appliance
12	Capacitor
13	Relief, Strain
14	Screw No.8
15	Overlay (Chinese)
16	Harness, Compressor
17	Harness, Appliance Cable (Not Serviceable)
18	Spacer
20	489392 Whirlpool Refrigerator Screw
21	Door, Exhaust
22	Linkage, Exhaust Door
23	Clip, Cabinet Front (2)
30	Control Box (Complete)
30	Screwdriver (For Tamper Proof Screw)
