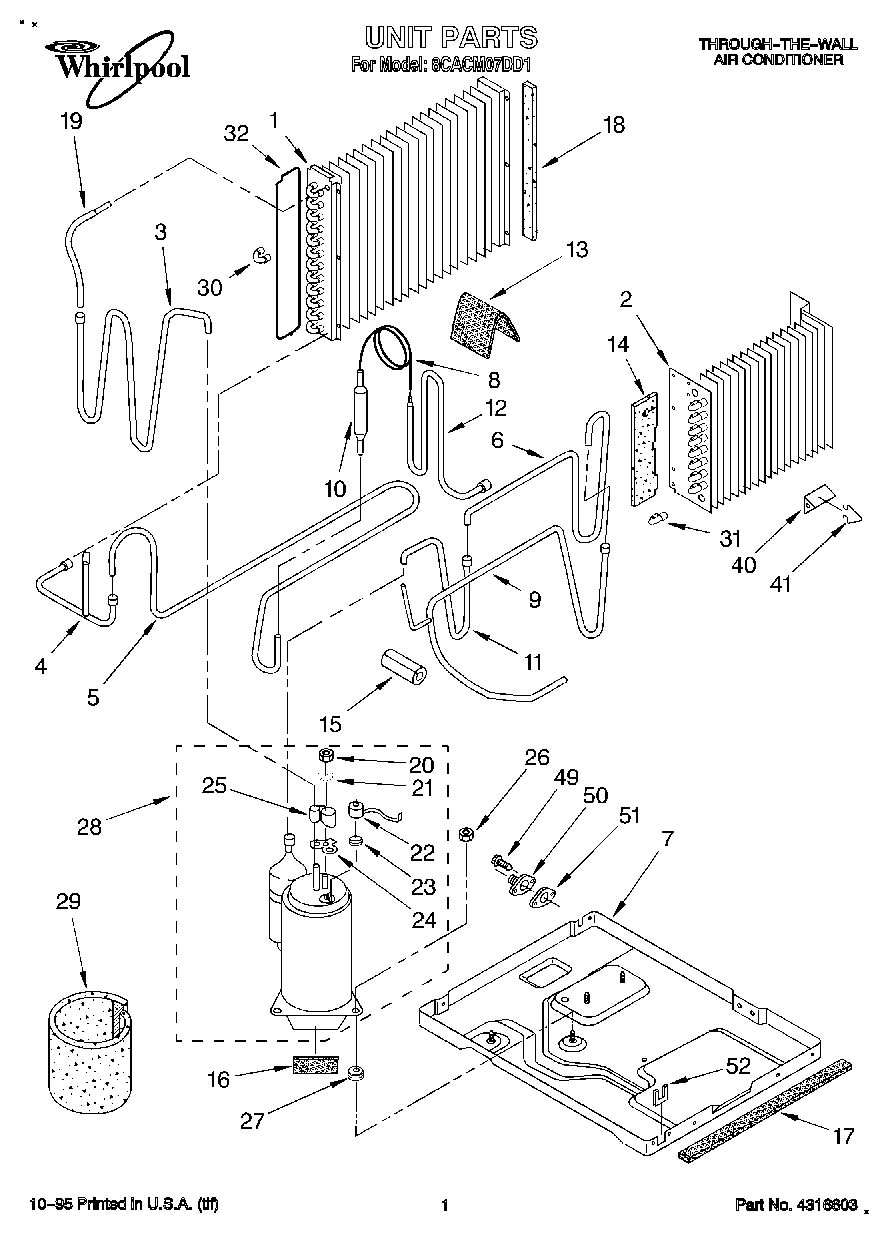

8CACM07DD1 01 – UNIT, LITERATURE

Products

Position	Product
	Owners Manual/Installation Instructions
	Wiring Diagram
	Deluxe Remote Owners Manual
1	Condenser
2	Evaporator
3	Tube, Discharge (Compressor)
4	Tube, Process
5	Tube, Wet Loop
6	Tube, Suction (Connecting)
7	Base
8	Tube, Restrictor
9	Tube, Suction (To Evaporator)
10	Strainer
11	Tube, Suction (To Compressor)
12	Tube, Evaporator Inlet
13	WPL 1162650
14	Seal, Tube
15	Insulation, Suction Tube Support
16	Seal, Anti-Rub
17	Seal
18	Insulation, Condenser (R.S.)
19	Tube, Discharge (To Condenser)
20	WP950027 Whirlpool Mounting Nut
21	Gasket, Nut
22	Protector, Overload
23	Spring, Overload
24	WP950035 Whirlpool Cover Gasket
25	WP950036 Whirlpool Cover Assembly
26	Nut, 8MM
27	Grommet, Compressor Mounting
28	Compressor
29	Blanket, Compressor
30	Bend, Return Condenser (10)
31	WP855199 Whirlpool Bend Return
32	Cover, Return Bend (Condenser)
40	Anticipator
41	Clip, Anticipator
49	Screw No.8 x 1
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
