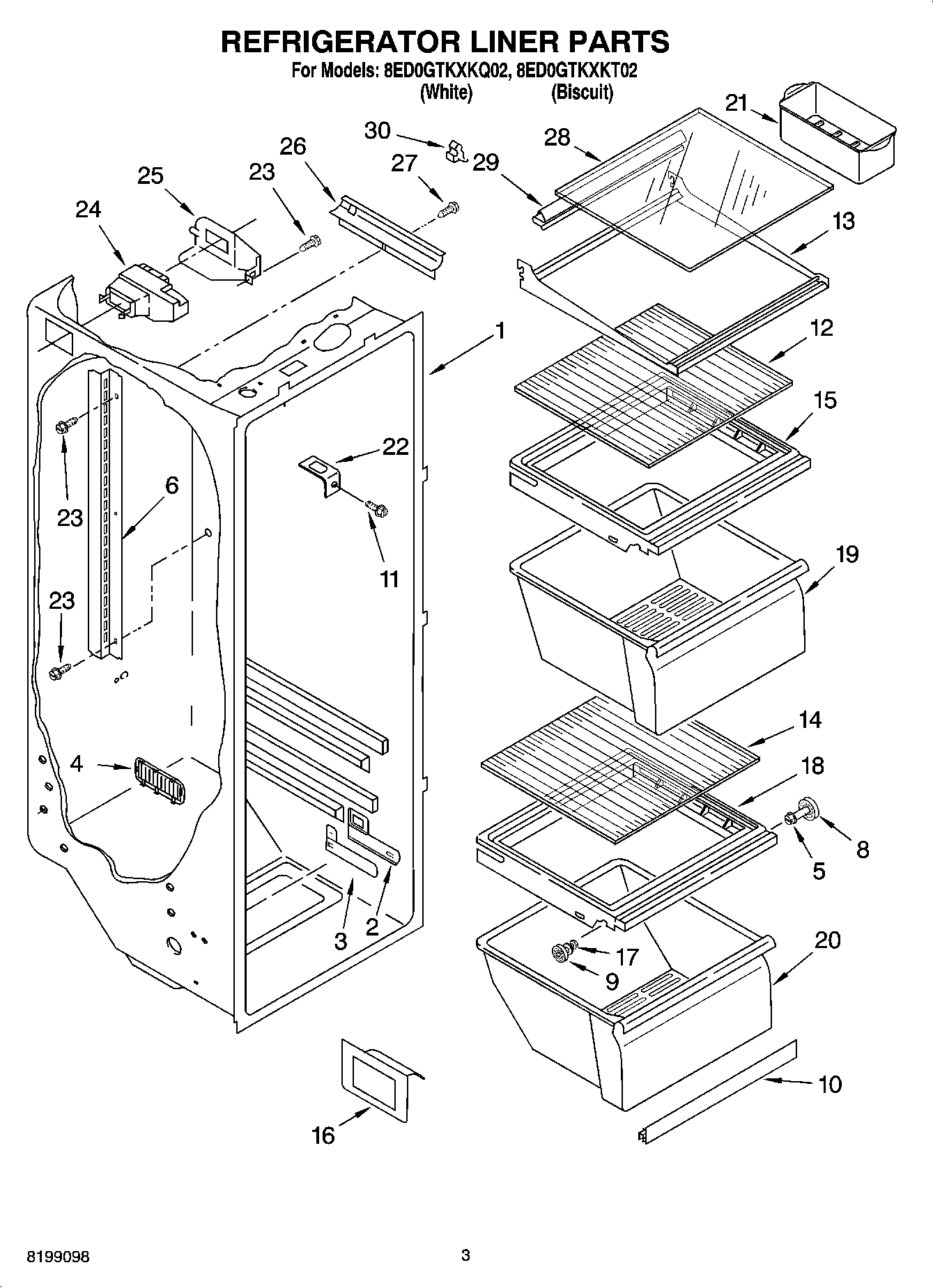

8ED0GTKXKQ02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	WP3400806 Whirlpool Screw
6	Shelf Ladder
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	W11223328 Whirlpool Refrigerator Shelf Stud
10	Extension
11	WP488488 Whirlpool Refrigerator Screw
12	W10864399 Whirlpool Glass Shelf
13	Shelf, Cantilever
15	W10508993 Whirlpool Refrigerator Cover Pan
16	2179350 Whirlpool Refrigerator Deflector
17	WP3-24004-109 Whirlpool Refrigerator Screw
18	Cover, Meat Pan
19	WP2188661 Whirlpool Crisper Pan
20	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
21	W10136387A Whirlpool Refrigerator Egg Container
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	W10759522 Whirlpool Screw
28	Glass, Shelf
29	Retainer
30	2215823 Whirlpool Refrigerator Clip
