8ED0GTKXKQ02 08 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
WPL ARI17854A4
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI17853A4
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP503695 Whirlpool Refrigerator Sealer
WPL ARI17855A9
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI17852A3
876370 Whirlpool Refrigerator Insulation
WPL ARI17856A5
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal

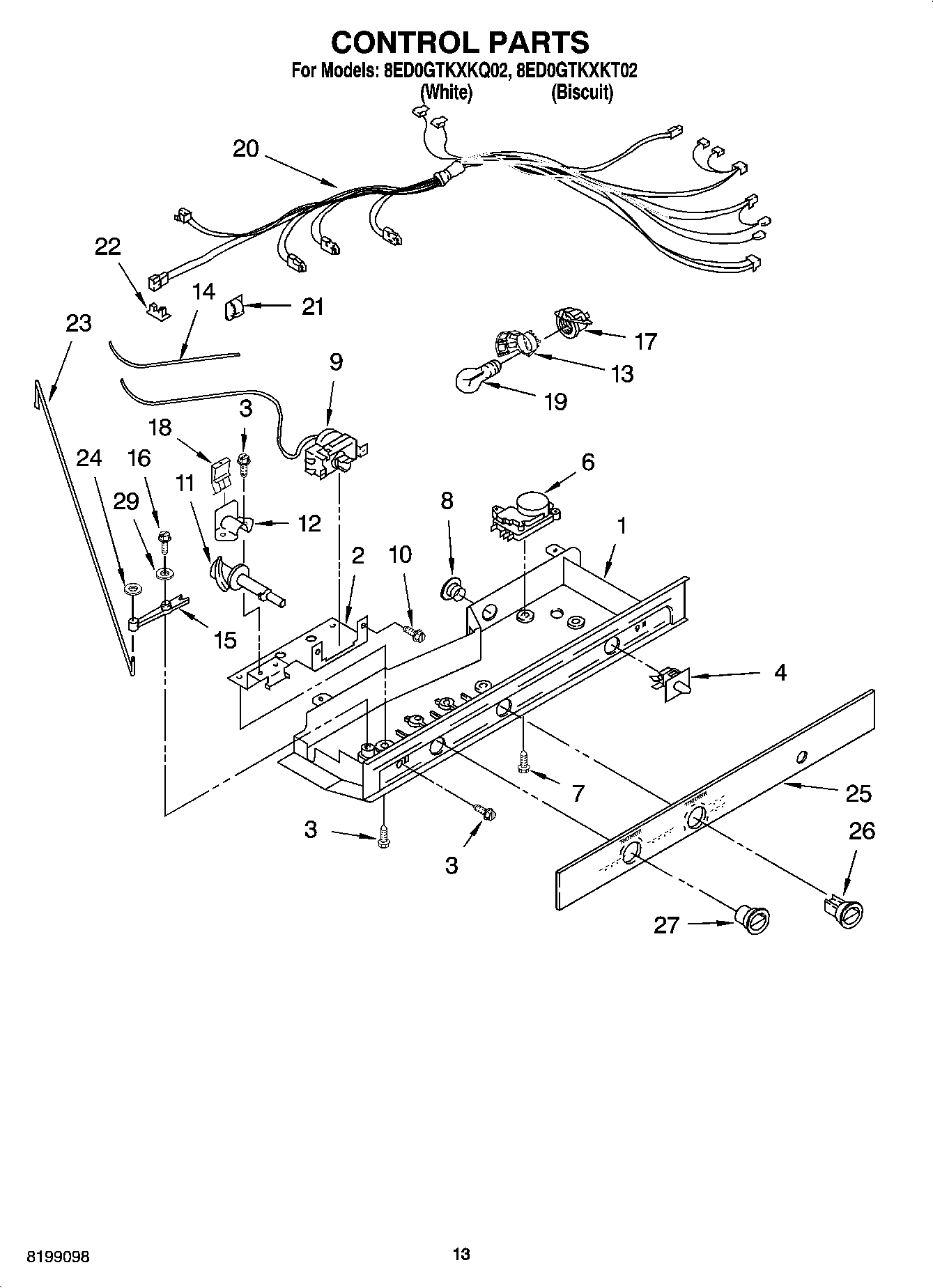

1Control Box
2Mounting Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6W10822278 Whirlpool Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
13WP2175210 Whirlpool Refrigerator Shroud
14WP2196003 Whirlpool Refrigerator Bar Riser
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18WP2196062 Whirlpool Refrigerator Clip
194396822 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
