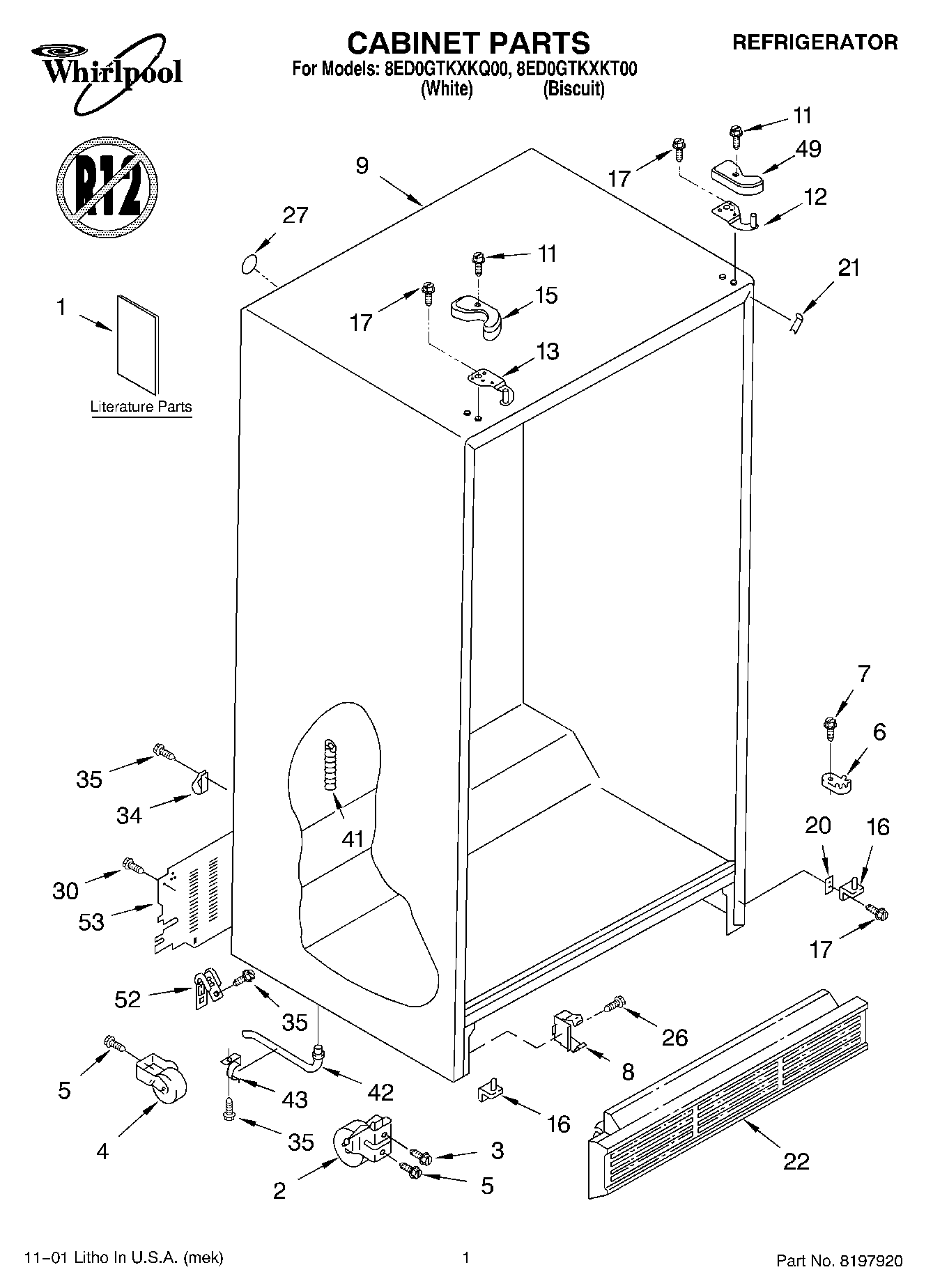

8ED0GTKXKT00 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Service & Wiring Sheet)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	Cabinet (Not A Serviceable Part)
11	WP8281227 Whirlpool Screw
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
15	2203407T Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP489497 Whirlpool Screw
20	WP2209697 Whirlpool Refrigerator Shim
21	Filler, Wrapper (White)
21	Filler, Wrapper (Biscuit)
22	Grille (Biscuit)
22	W10804014 Whirlpool Refrigerator Grille
26	WP489478 Whirlpool Refrigerator Screw
27	Hole Plug
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
49	WP2203408W Whirlpool Refrigerator Cover
49	Hinge Cover (Biscuit)
52	549193 Whirlpool Refrigerator Power Clamp
53	WP2188756 Whirlpool Refrigerator Unit Cover
