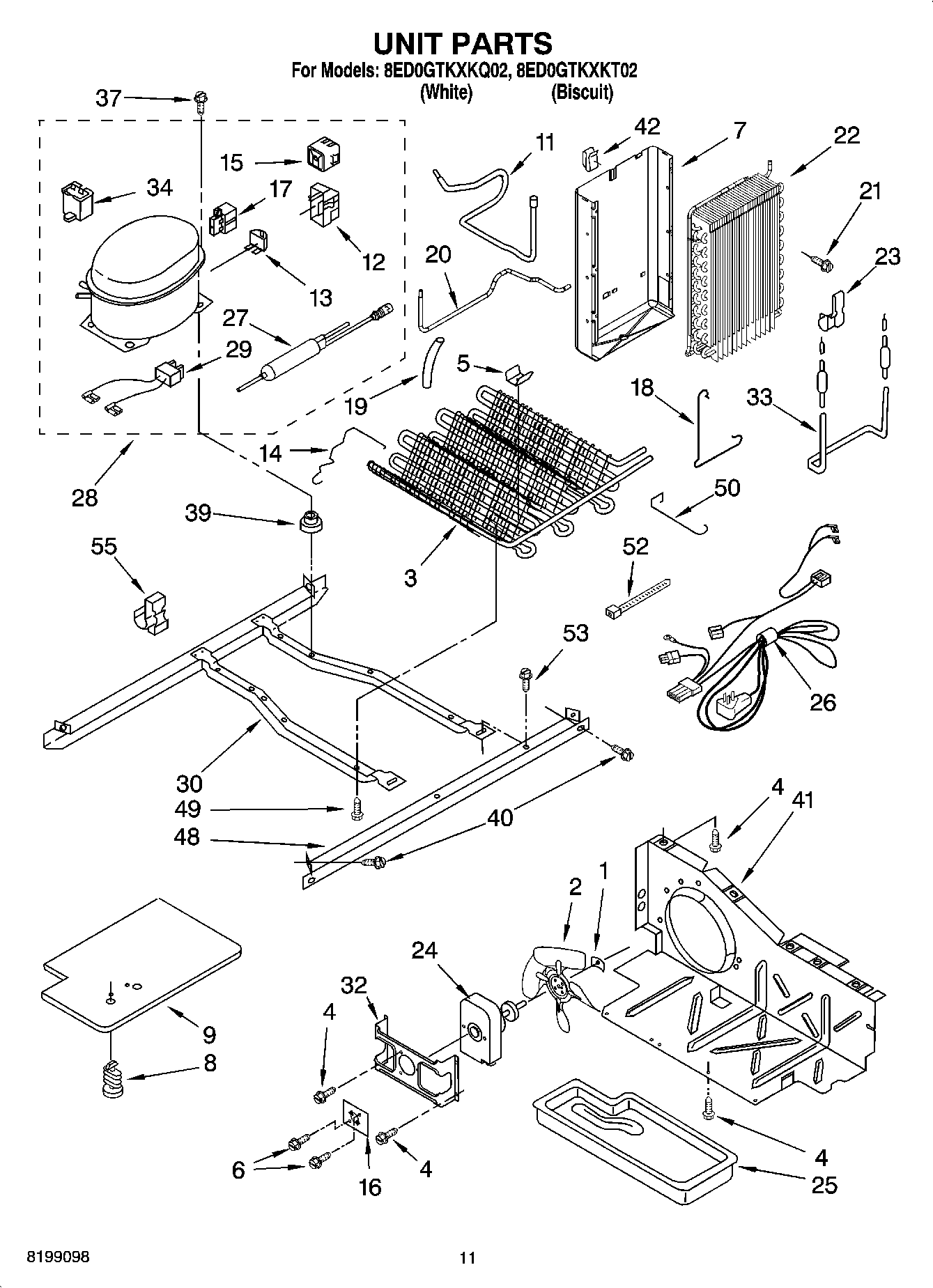

8ED0GTKXKT02 07 – UNIT PARTS

8ED0GTKXKT02 07 – UNIT PARTS

Written by

in

8ED0GTKXKT02 07 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
68281160 Whirlpool Screw
7Heat Shield
8489396 Whirlpool Refrigerator Clip
9Unit Cover, Bottom
112205764 Whirlpool Refrigerator Tube
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2187145 Whirlpool Refrigerator Overload
142223313 Whirlpool Clip
158201786 Whirlpool Relay and Overload Start Kit
16Insert, Bracket
17W10920279 Whirlpool Refrigerator Start Relay
18Clamp
19SLEEVE
202261599 Whirlpool Refrigerator Tube
21WP965173 Whirlpool Dishwasher Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23W11623163 Whirlpool Refrigerator Clip
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
29WP2172890 Whirlpool Refrigerator Wire
30Unit Mounting Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34WPW10662129 Whirlpool Refrigerator Run Capacitor
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP978025 Whirlpool Refrigerator Valve
55Following Parts Not Illustrated and Optional Parts Not Included
55VALVE, ACCESS (5/8“)
55VALVE, ACCESS (1/2“)
55Clip, Wire & Tube
55876764 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55978026 Whirlpool Refrigerator Primary Valve
55REFRIGERANT CHARGE 5.0 o
