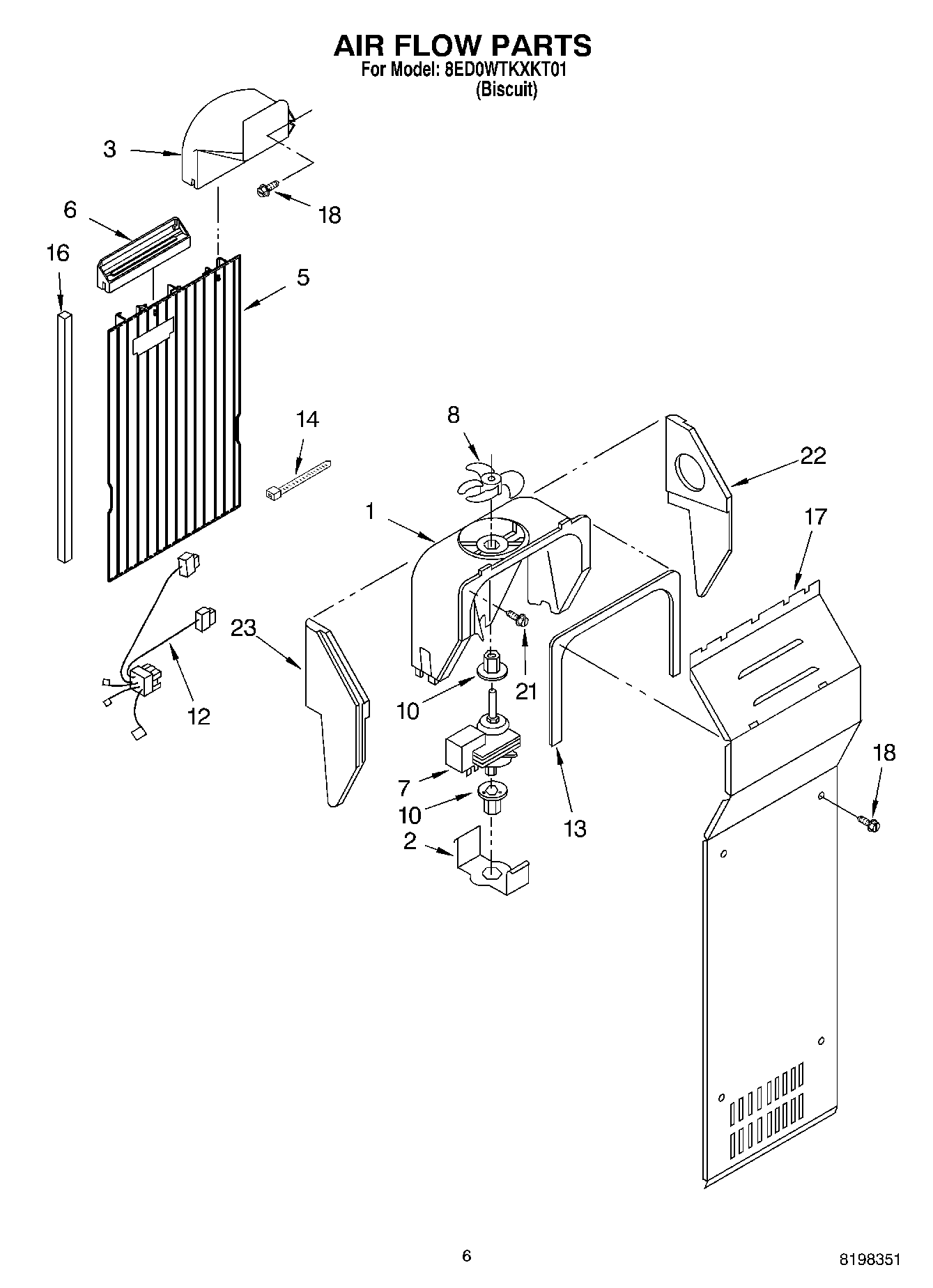

8ED0WTKXKT01 04 – AIR FLOW

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
5	Air Duct Freezer
6	Diffuser, Air Duct
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
12	W11234406 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	4388500 Whirlpool Refrigerator Gasket
17	4388357 Whirlpool Refrigerator Evaporator Cover
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
