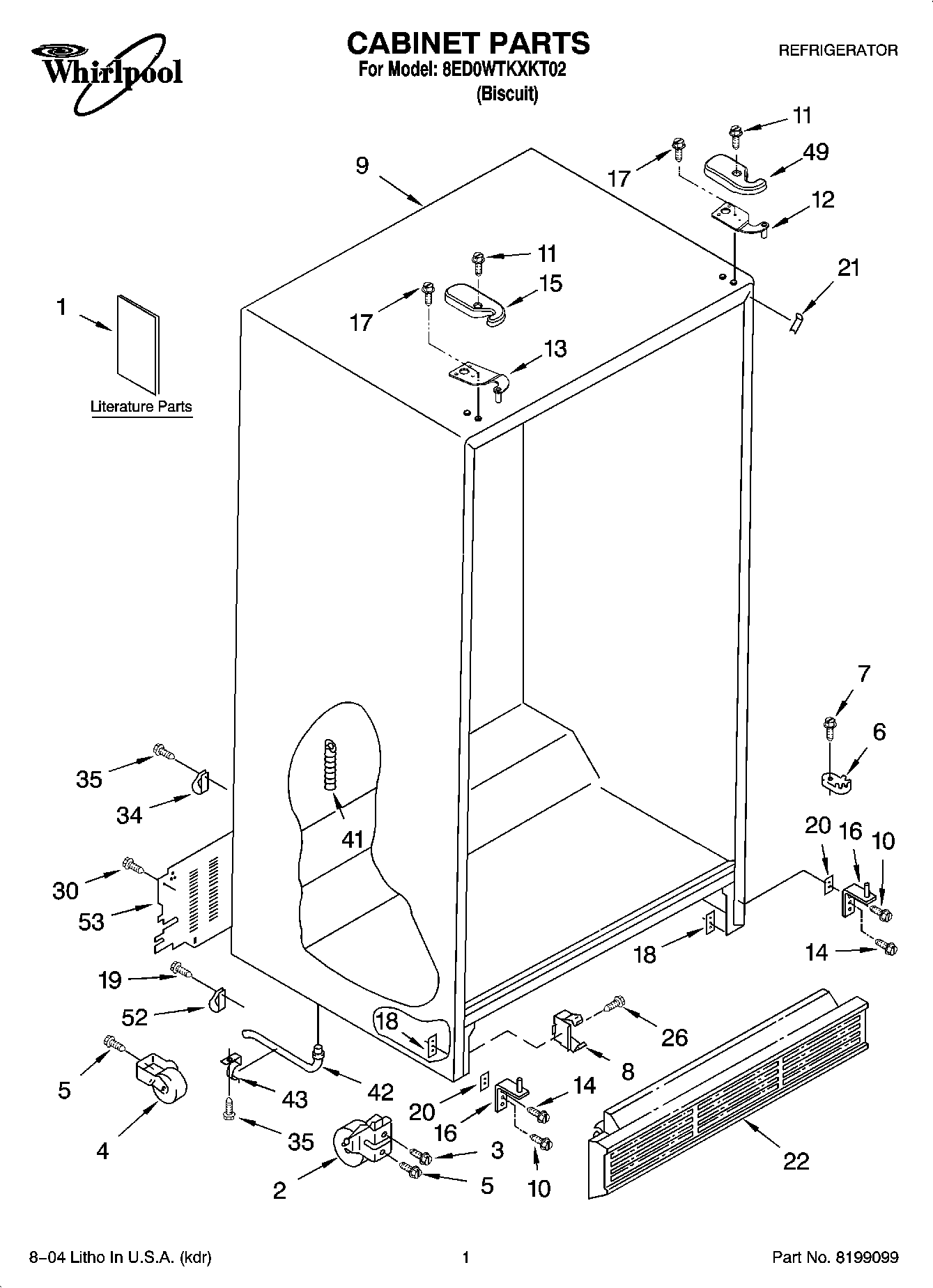

8ED0WTKXKT02 01 – CABINET PARTS

8ED0WTKXKT02 01 – CABINET PARTS

Written by

in

8ED0WTKXKT02 01 – CABINET PARTS

Products

PositionProduct
1Chinese
1English
1Service & Wiring Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WPW10329686 Whirlpool Door Cam Black
7WP489483 Whirlpool Screw
8WP2155013 Whirlpool Refrigerator Clip
9Cabinet (Not A Serviceable Part)
10W10856122 Whirlpool Refrigerator Screw
11WP8281227 Whirlpool Screw
12WP2203771 Whirlpool Refrigerator Door Hinge
13WP2203770 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
152203407T Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
18WP2304249 Whirlpool Refrigerator Plate
19W11693756 Whirlpool Screw Assembly
20WP2209697 Whirlpool Refrigerator Shim
21Filler, Wrapper (Biscuit)
22Grille (Biscuit)
26WP489478 Whirlpool Refrigerator Screw
34WP488366 Whirlpool Refrigerator Clamp
35WP489464 Whirlpool Refrigerator Screw
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
49Hinge Cover (Biscuit)
52489348 Whirlpool Refrigerator Tube Clamp
53Cover, Unit
