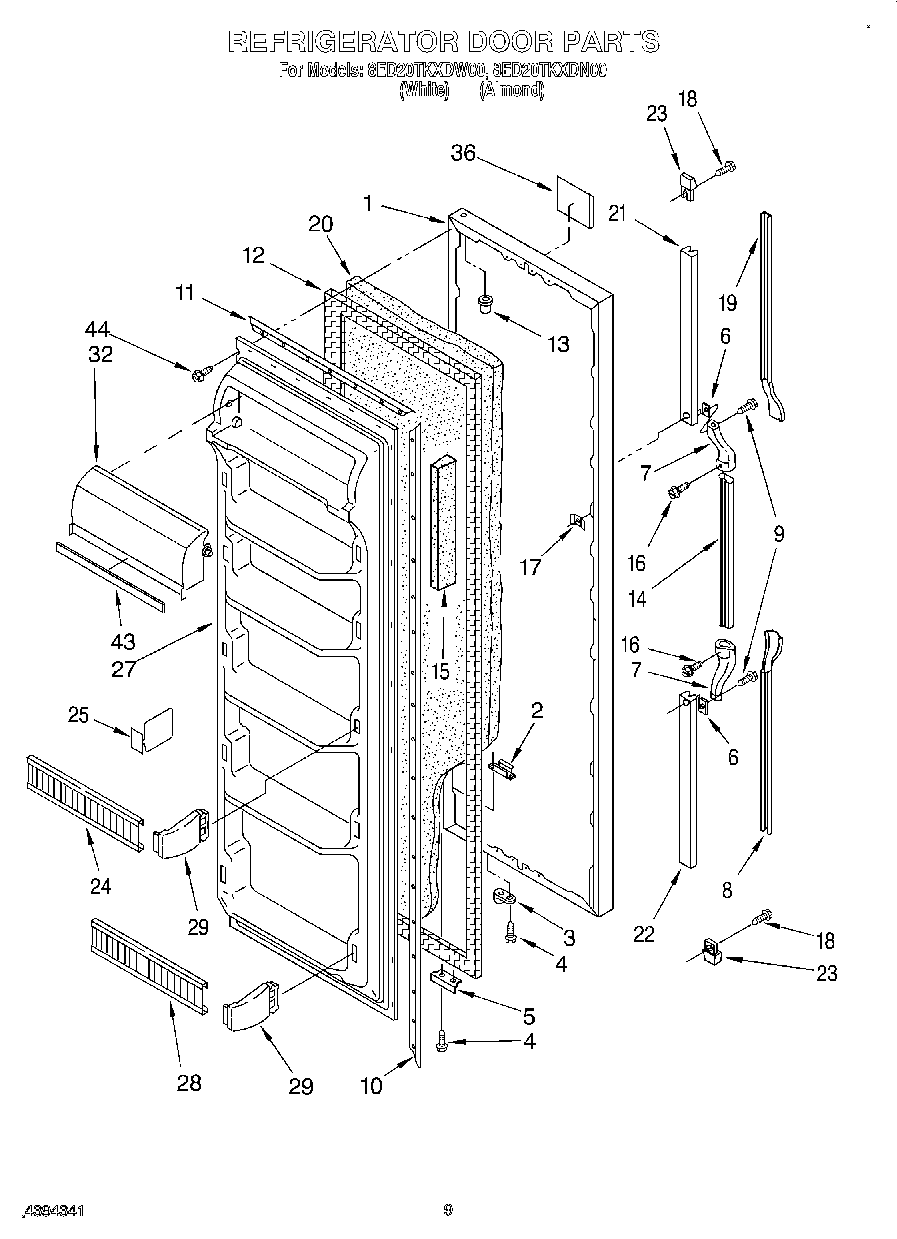

8ED20TKXDN00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (White)
1	Refrigerator Door (Almond (Also Order Item 18))
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP999367 Whirlpool Refrigerator Screw
5	Bracket, Door Stop
6	Shim
7	End Cap, Center Handle
8	Insert, Handle (Almond)
8	Insert, Handle (White)
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (Almond)
14	Handle, Center (White)
15	Reinforcement, Shelf
16	Screw
17	Screw Anchor (2)
18	Screw
19	Insert, Handle
19	Insert, Handle (Almond)
20	WPL 876029
21	Retainer, Insert
22	Retainer, Insert (Bottom)
23	End Cap (2)
24	Shelf Bin (2)
25	Divider-Door
27	Panel, Interior Door
28	Shelf Bin (2)
29	4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
32	Door, Compartment
36	Nameplate (Almond)
36	Nameplate (White)
43	Trim, Compartment Door
44	WP489069 Whirlpool Compactor Screw
