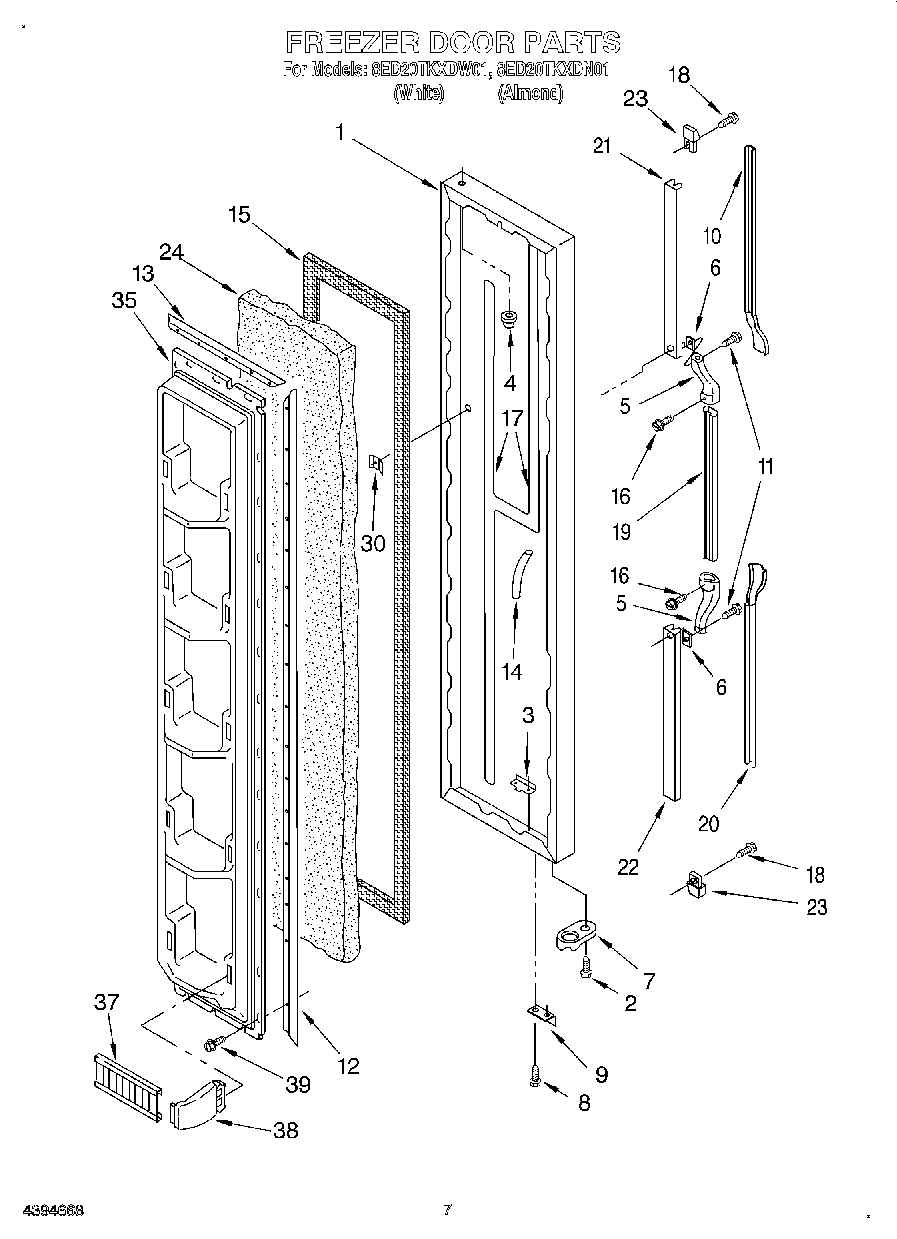

8ED20TKXDN01 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Almond (Also Order Item 24))
1	Freezer, Door Panel (White)
2	WP3400012 Whirlpool Refrigerator Screw
3	Tap, Plate
4	Cap, Hinge Sleeve (2)
5	End Cap, Center Handle
6	Shim
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Chrome)
10	Insert, Top (White)
10	Insert, Top (Almond)
11	WP489463 Whirlpool Refrigerator Screw
12	Retainer, Gasket
13	Retainer, Gasket
14	Tube, Door Wiring
15	2188405A Whirlpool Refrigerator Door Gasket
16	Screw
17	Connector
18	Screw
19	Handle, Center (White)
19	Handle, Center (Almond)
20	Insert, Bottom (White)
20	Insert, Bottom (Almond)
21	Insert Retainer (Top)
22	Retainer, Bottom
23	End Cap (2)
24	WPL 876029
30	Screw Anchor (2)
35	Panel, Interior Door
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
