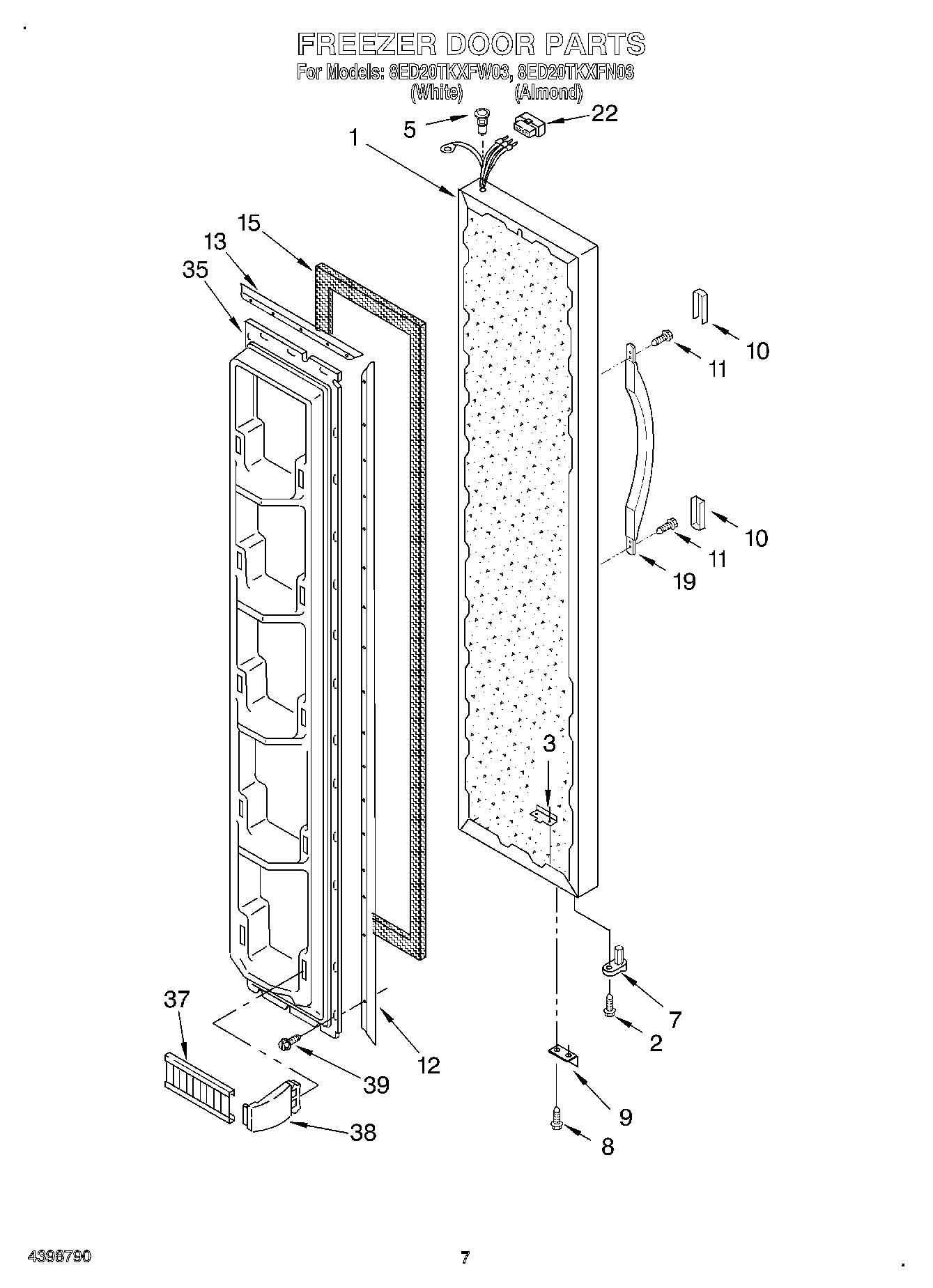

8ED20TKXFW03 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond)
2	WP3400012 Whirlpool Refrigerator Screw
3	SCREW PLATE
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP2182179 Whirlpool Cam Closer
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Chrome)
10	WP2193353W Whirlpool Refrigerator Trim Handle
10	Endcap, Handle (2) (Almond)
11	WP489491 Whirlpool Refrigerator Screw
12	Retainer, Gasket
13	Retainer, Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
19	Handle, Center (White)
19	Handle, Center (Almond)
22	Connector
35	Interior, Door Panel
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
