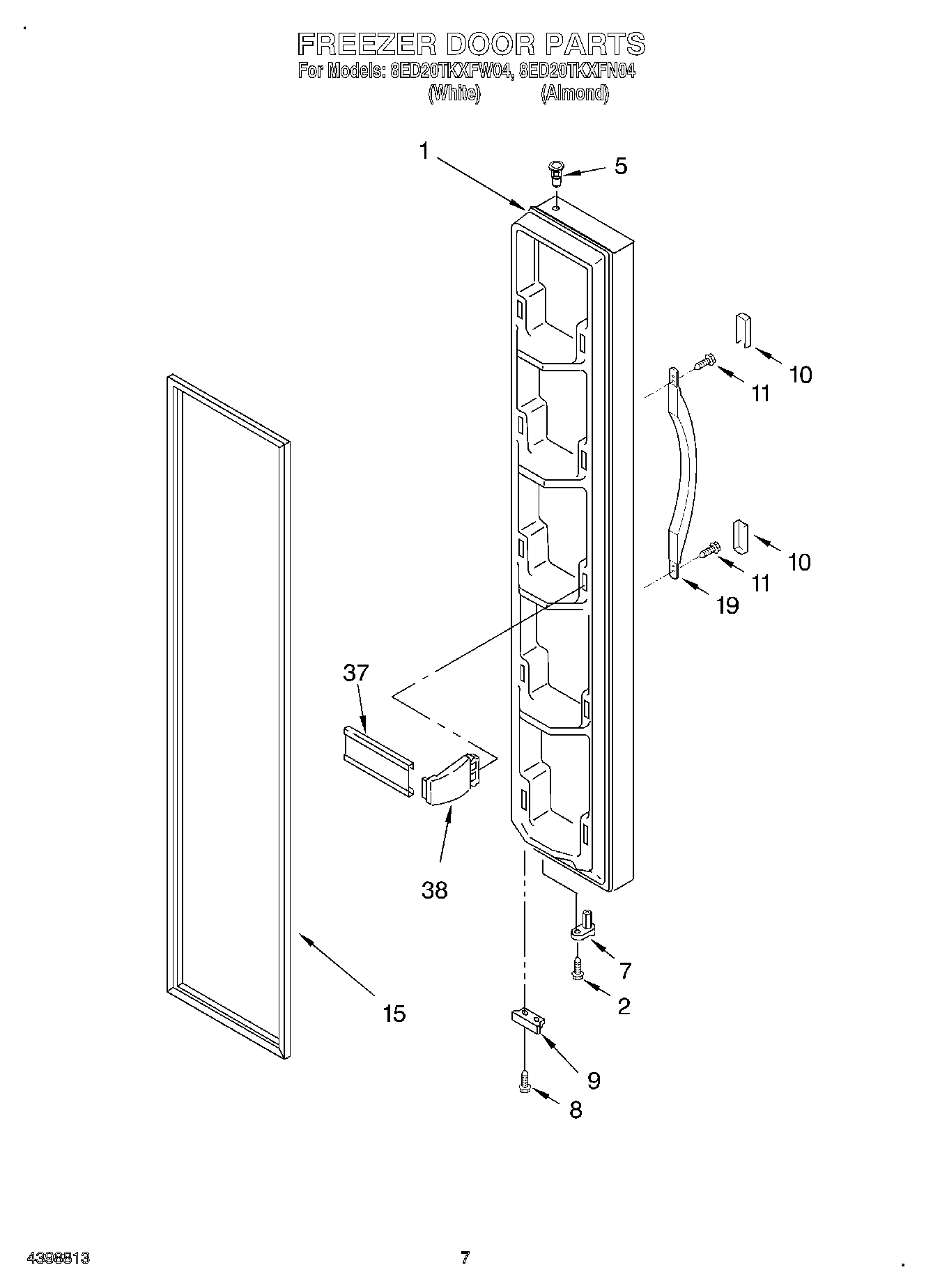

8ED20TKXFW04 05 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door (Almond)
1Freezer Door
2WP3400012 Whirlpool Refrigerator Screw
5WP2182181 Whirlpool Refrigerator Thimble
7WP2182179 Whirlpool Cam Closer
8WP489483 Whirlpool Screw
9Bracket, Door Stop (Chrome)
10Endcap, Handle (2) (Almond)
10WP2193353W Whirlpool Refrigerator Trim Handle
11WP489491 Whirlpool Refrigerator Screw
152159072 Whirlpool Refrigerator FIP Gasket
19Handle, Center (White)
19Handle, Center (Almond)
37Trim, Door Shelf
38WP2195917K Whirlpool Refrigerator Endcap
38ENDCAP
