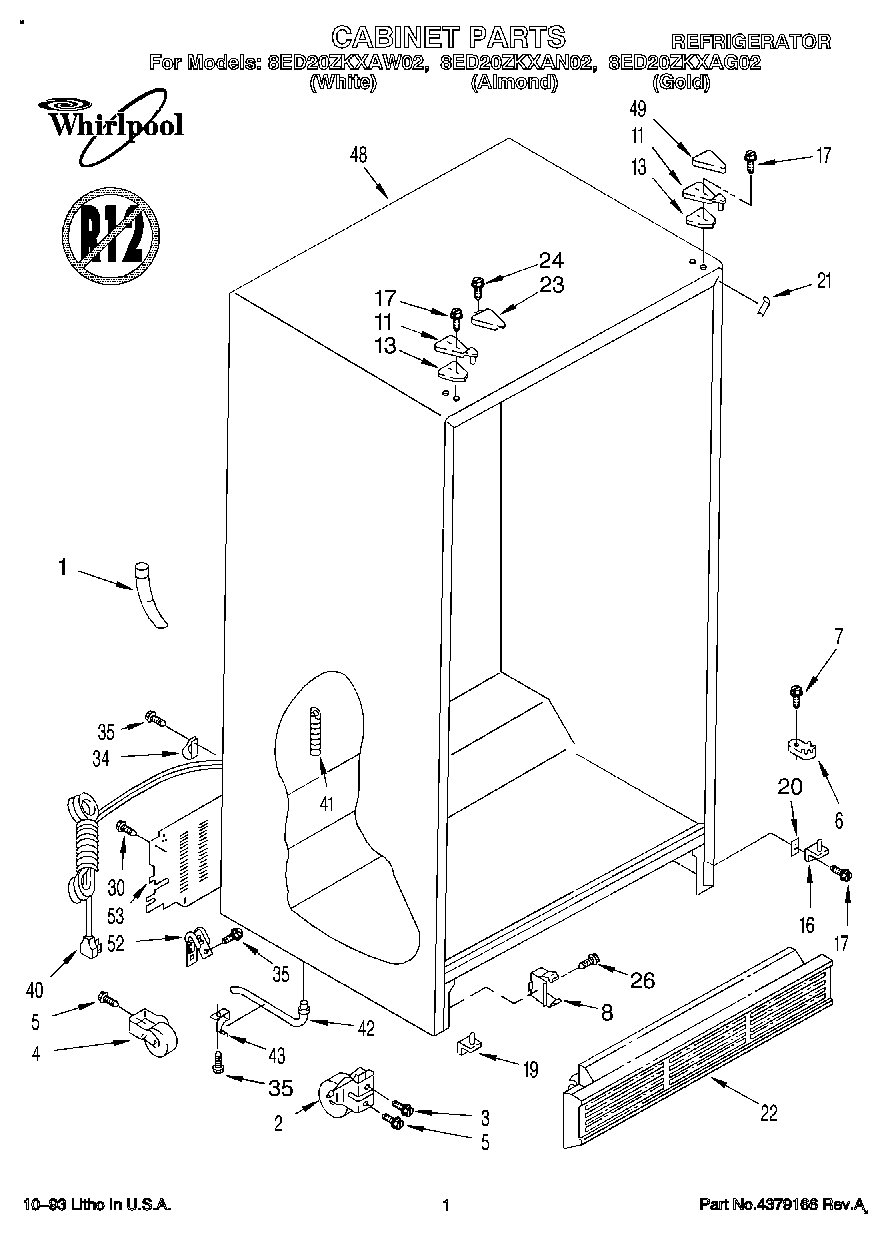

8ED20ZKXAG02 01 – CABINET

Products

Position	Product
1	Tube, Water Inlet
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
11	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
16	Hinge Bottom (R.H) (Black)
17	WP999367 Whirlpool Refrigerator Screw
19	Hinge Bottom (L.H) (Black)
20	Shim, Bottom Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (Golden Harvest)
21	Filler, Wrapper (White)
22	Grille
23	WP1129262 Whirlpool Refrigerator Cover
23	Cover, Hinge (Gold)
24	Screw
26	WP489478 Whirlpool Refrigerator Screw
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
53	WP2188756 Whirlpool Refrigerator Unit Cover
