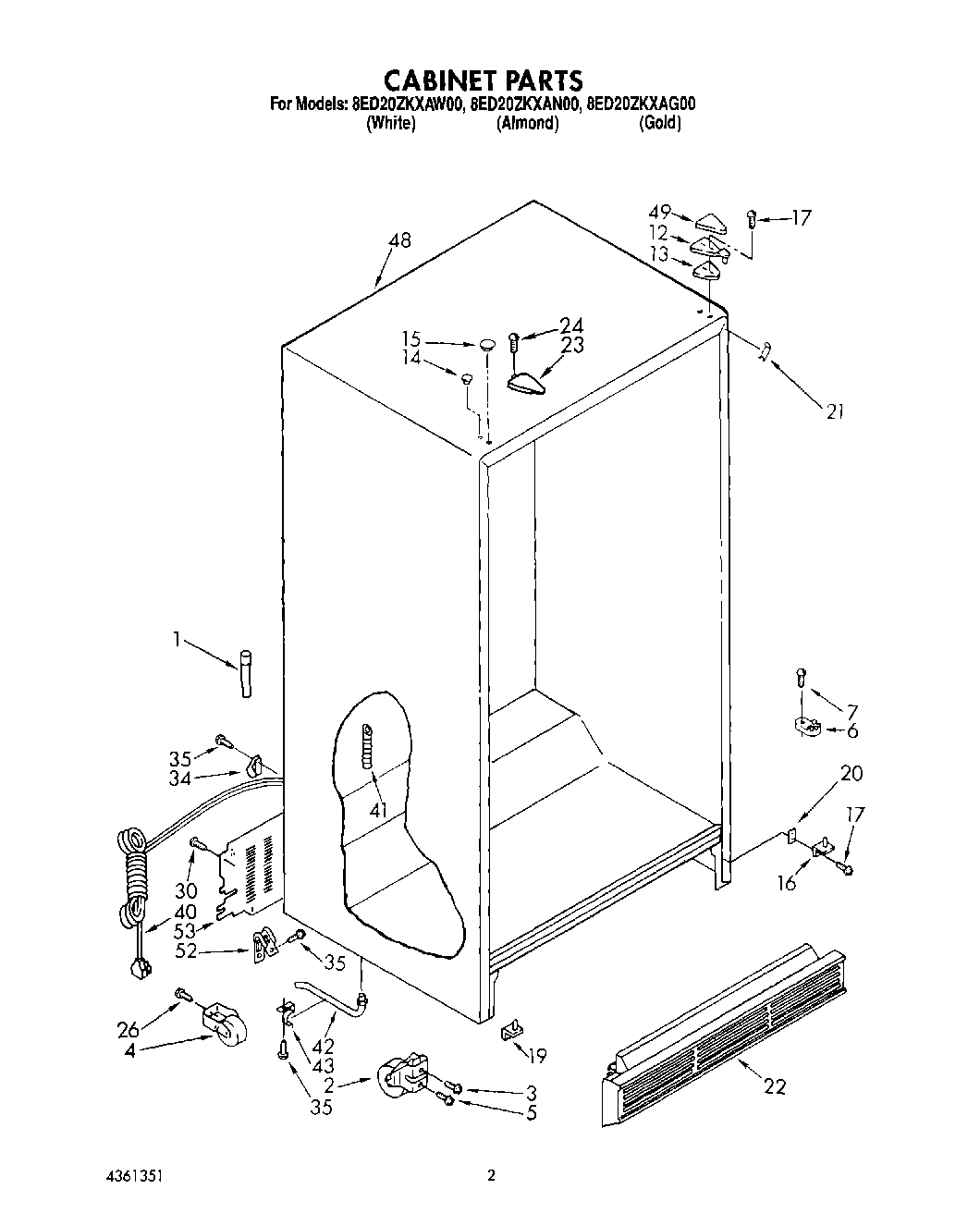

8ED20ZKXAN00 02 – CABINET

Products

Position	Product
1	Tube, Water Inlet
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489399 Whirlpool Refrigerator Screw
12	Hinge, Top
12	Hinge, Top (L.H.)
13	Shim, Hinge Top
13	Shim, Hinge Freezer Door
14	Hole Plug (Almond)
14	Hole, Plug (White)
14	Hole, Plug (Golden Harvest)
15	Hole Plug (Bold)
15	Hole Plug (White)
15	Hole Plug (Almond)
16	Hinge Bottom (R.H.)
17	Screw
19	hinge Bottom (L.H.)
20	Shim, Bottom Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Golden Harvest)
21	Filler, Wrapper (Almond)
22	Grille (Black)
23	Cover, Hinge (Gold)
23	WP1129262 Whirlpool Refrigerator Cover
24	Screw
26	Screw, 1/4-28 x 1/2 (2)
34	WP488366 Whirlpool Refrigerator Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
53	Cover, Unit
