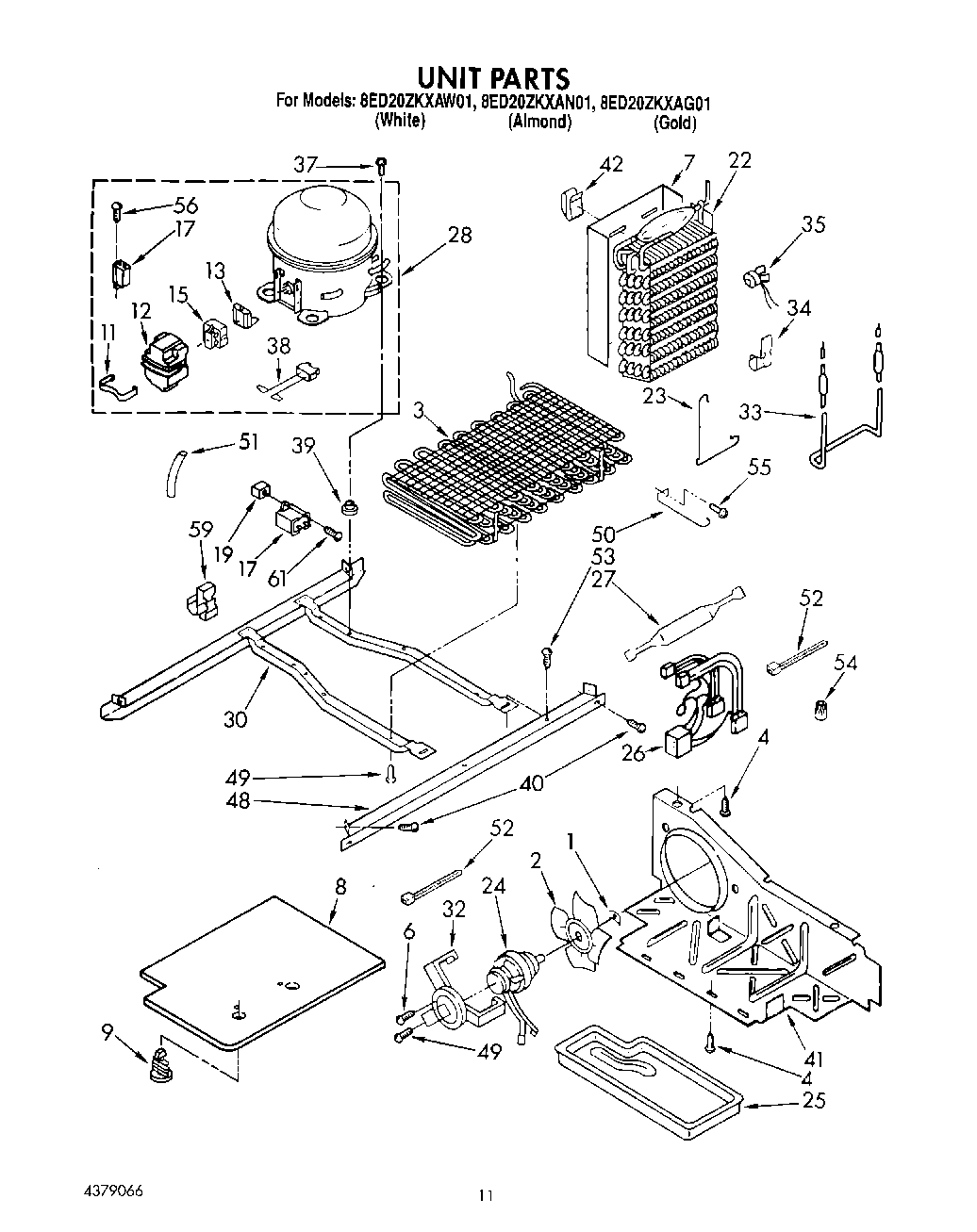

8ED20ZKXAW01 06 – UNIT

8ED20ZKXAW01 06 – UNIT

Written by

in

8ED20ZKXAW01 06 – UNIT

Products

PositionProduct
WPL LIT2155745
Torx Key
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT2162708
WPL LIT2167061
WPL LIT2167112
WPL LIT4379066
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8Cover-Unit Btm.
9489396 Whirlpool Refrigerator Clip
11Strap
12Cover
13OVERLOAD
13Overload
15Relay (See Overload)
17Running Capacitor (Service)
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19Screw Grommet
22WP2188822 Whirlpool Refrigerator Evaporator
23Clip, Defrost Heater
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Wiring Assembly, Intermediate
27W10843121 Whirlpool Refrigerator Tube
28W10439652 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
30Unit Mounting Frame
32Fan, Motor Bracket
33Heater, Defrost
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air, Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WP489478 Whirlpool Refrigerator Screw
56W11693756 Whirlpool Screw Assembly
59Clip, Wire
6172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61Transformer (115-230 Volt)
61VALVE, ACCESS (1/2“)
61833938 Whirlpool Refrigerator Terminal
61606755 Whirlpool Refrigerator Bag
61511873 Whirlpool Refrigerator Paint
61350942 Whirlpool Spray Paint
61212643 Whirlpool Refrigerator Permagum Sealer
61Golden Harvest (Uncut)
61Golden Harvest
61VALVE, ACCESS (5/8“)
61Almond (Uncut)
61Leveler (Thinner)
61WP72107 Whirlpool Touchup
61799344 Whirlpool Refrigerator Paint
6172017 Whirlpool Appliance Touch-Up Paint White
61350956 Whirlpool Spray Assembly
61876370 Whirlpool Refrigerator Insulation
61WP503695 Whirlpool Refrigerator Sealer
6172032 Whirlpool Touch Up Paint Black
61285006 Whirlpool Spray
61WPL 876029
61WPL 799833
61Enamel, Black (1 Qt. Uncut)
61CEMENT, ALUMILASTIC (1 1/4 OZ.)
61TAPE, VINYL (3/4 X 108“)
61WP978025 Whirlpool Refrigerator Valve
61978030 Whirlpool Refrigerator Valve
61WP542638 Whirlpool Refrigerator Grease
61978027 Whirlpool Refrigerator Primary Valve
61WP505587 Whirlpool Refrigerator Sealer
61978026 Whirlpool Refrigerator Primary Valve
61876764 Whirlpool Refrigerator Primary Valve
61350930 Whirlpool White Spray Paint
