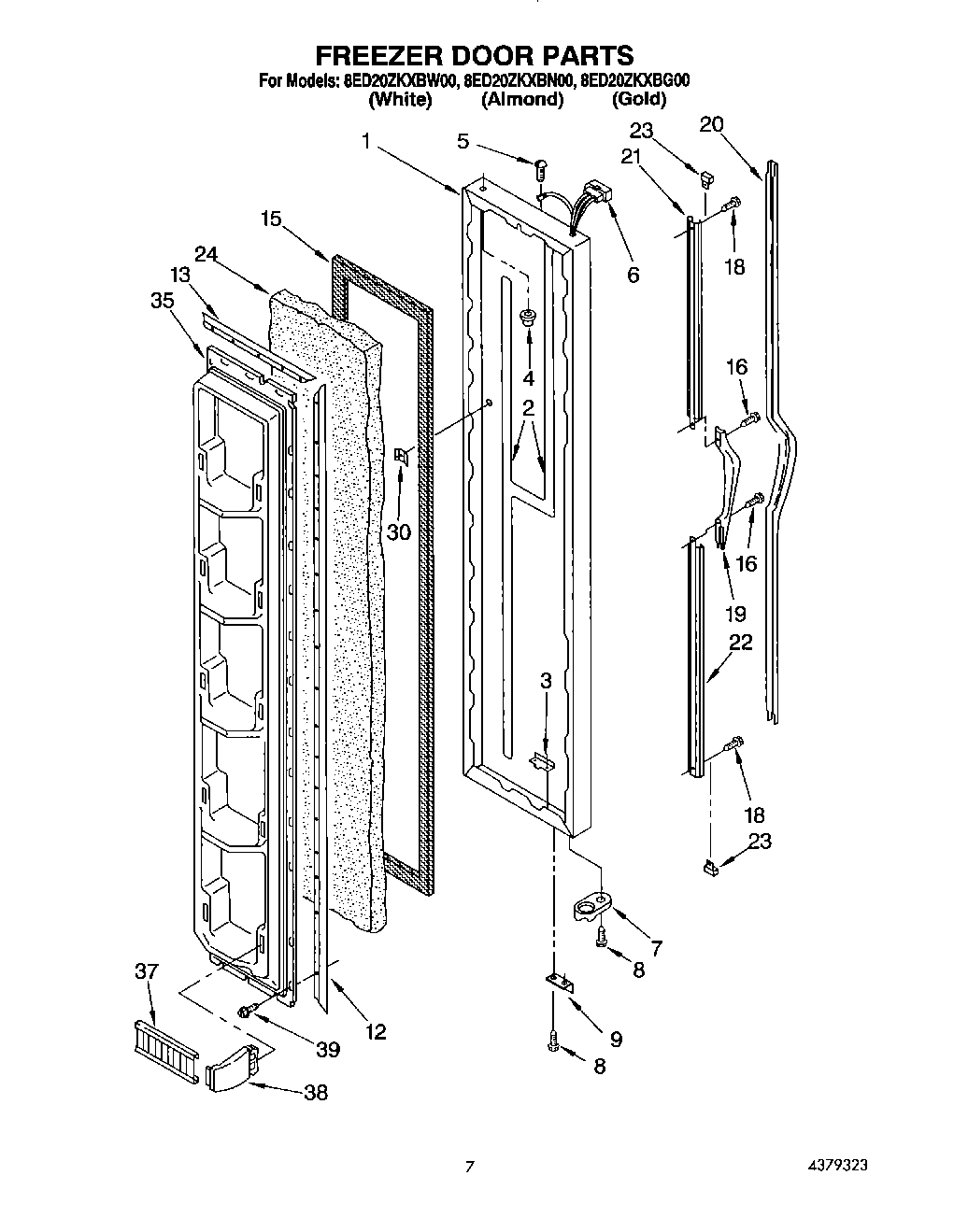

8ED20ZKXBN00 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Gold (Also Order Item 24))
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond)
2	Connector
3	Tap, Plate
4	Cap, Hinge Sleeve (2)
5	WP488234 Whirlpool Air Conditioner Screw
6	Connector
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP999367 Whirlpool Refrigerator Screw
9	Bracket, Door Stop
12	Retainer, Gasket
13	Retainer, Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
16	WP488729 Whirlpool Refrigerator Door Screw
18	Screw
19	Handle
20	Insert Handle (Gold)
20	Insert, Handle (Almond)
20	Insert, Handle (White)
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
24	WPL 876029
30	WP939101 Whirlpool Refrigerator Plate
35	Panel, Interior Door
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
