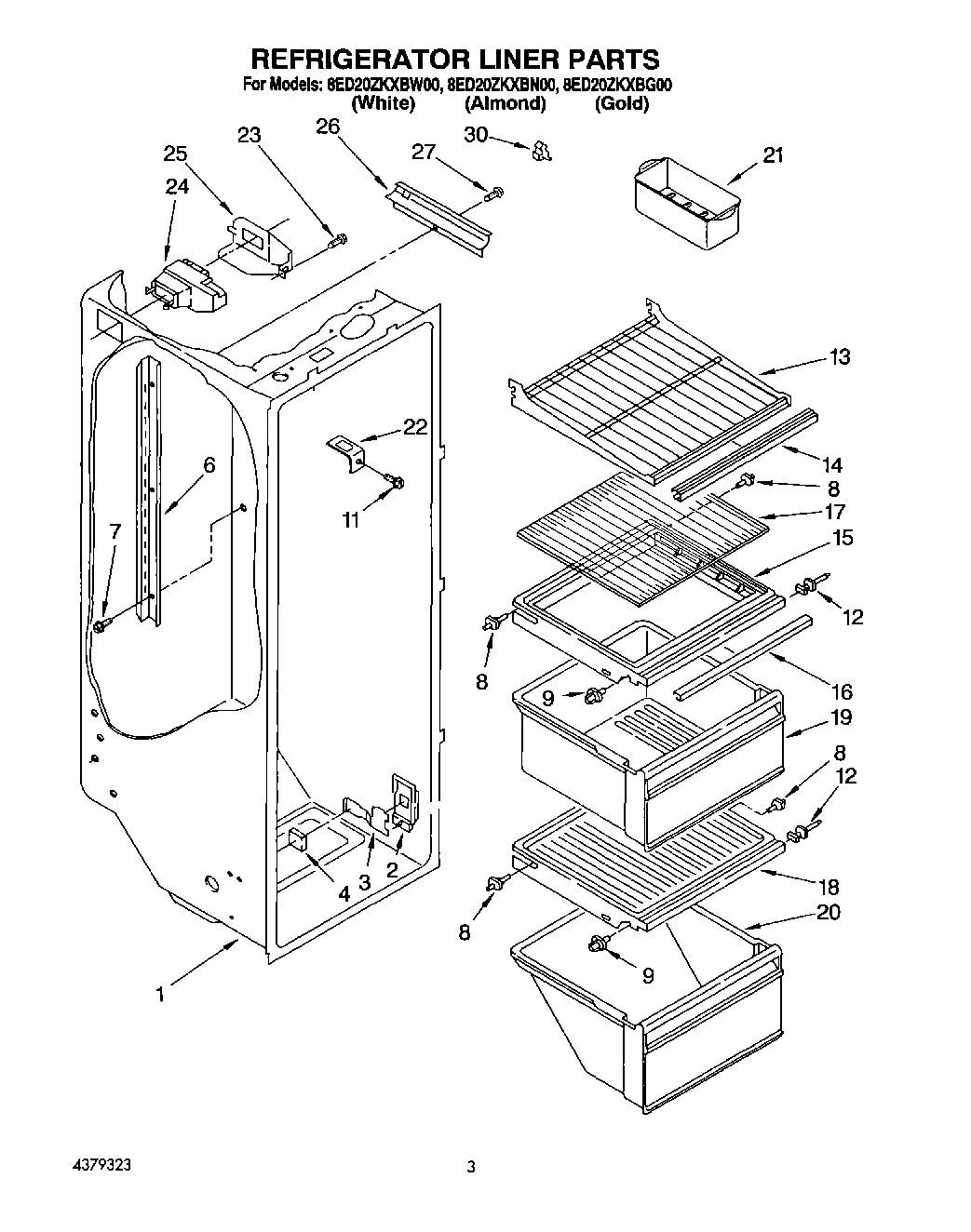

8ED20ZKXBW00 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
6	Ladder, Shelf
7	WP488729 Whirlpool Refrigerator Door Screw
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	WP2149540 Whirlpool Shelf Support
11	WP488488 Whirlpool Refrigerator Screw
13	Shelf, Cantilever
14	Trim, Shelf
15	WP1126289 Whirlpool Refrigerator Cover
16	Trim, Crisper Cover
17	Glass, Crisper Cover
18	WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
19	WP2148279 Whirlpool Refrigerator Crisper Pan
20	Meat Pan
21	W10136387A Whirlpool Refrigerator Egg Container
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	W10759522 Whirlpool Screw
30	2215823 Whirlpool Refrigerator Clip
