8ED20ZKXDW02 08 – CONTROL, LIT/OPTIONAL

8ED20ZKXDW02 08 – CONTROL, LIT/OPTIONAL

Written by

in

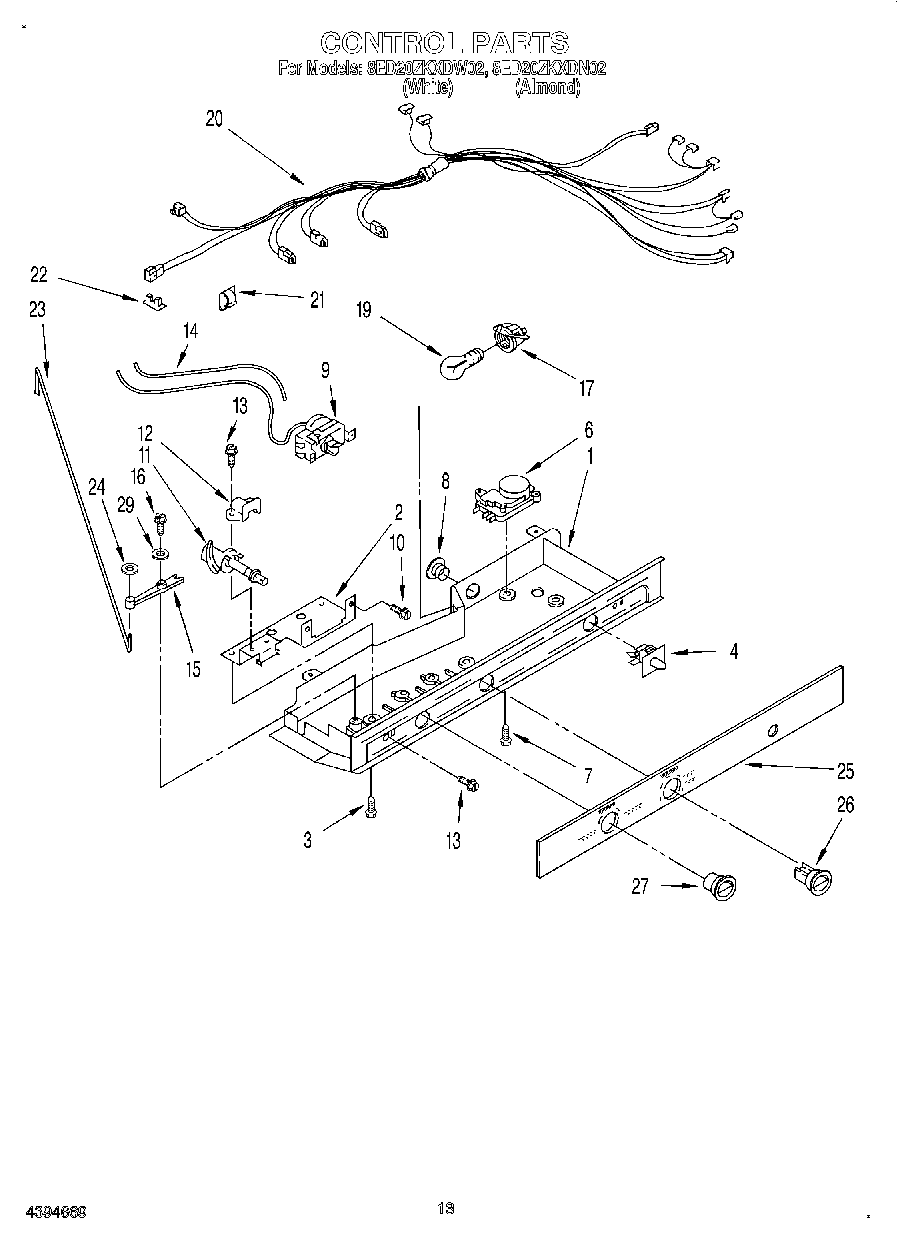

8ED20ZKXDW02 08 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2182955
	W11729596 Whirlpool Ice Maker Field Install Kit
	Torx Key
	WPL LIT2183746
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	Cam Assembly
12	1110560 Whirlpool Refrigerator Bearing
13	WP489478 Whirlpool Refrigerator Screw
14	WP2196003 Whirlpool Refrigerator Bar Riser
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
29	285006 Whirlpool Spray
29	350942 Whirlpool Spray Paint
29	WP542638 Whirlpool Refrigerator Grease
29	WP505587 Whirlpool Refrigerator Sealer
29	350930 Whirlpool White Spray Paint
29	489203 Whirlpool Refrigerator Washer
29	WP503695 Whirlpool Refrigerator Sealer
29	876370 Whirlpool Refrigerator Insulation
29	833938 Whirlpool Refrigerator Terminal
29	606755 Whirlpool Refrigerator Bag
29	212643 Whirlpool Refrigerator Permagum Sealer
29	TAPE, VINYL (3/4 X 108“)
29	350956 Whirlpool Spray Assembly
29	72032 Whirlpool Touch Up Paint Black
29	WPL 876029
29	WPL 799833
29	Enamel, Black (1 Qt. Uncut)
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	Almond (Uncut)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	511873 Whirlpool Refrigerator Paint
