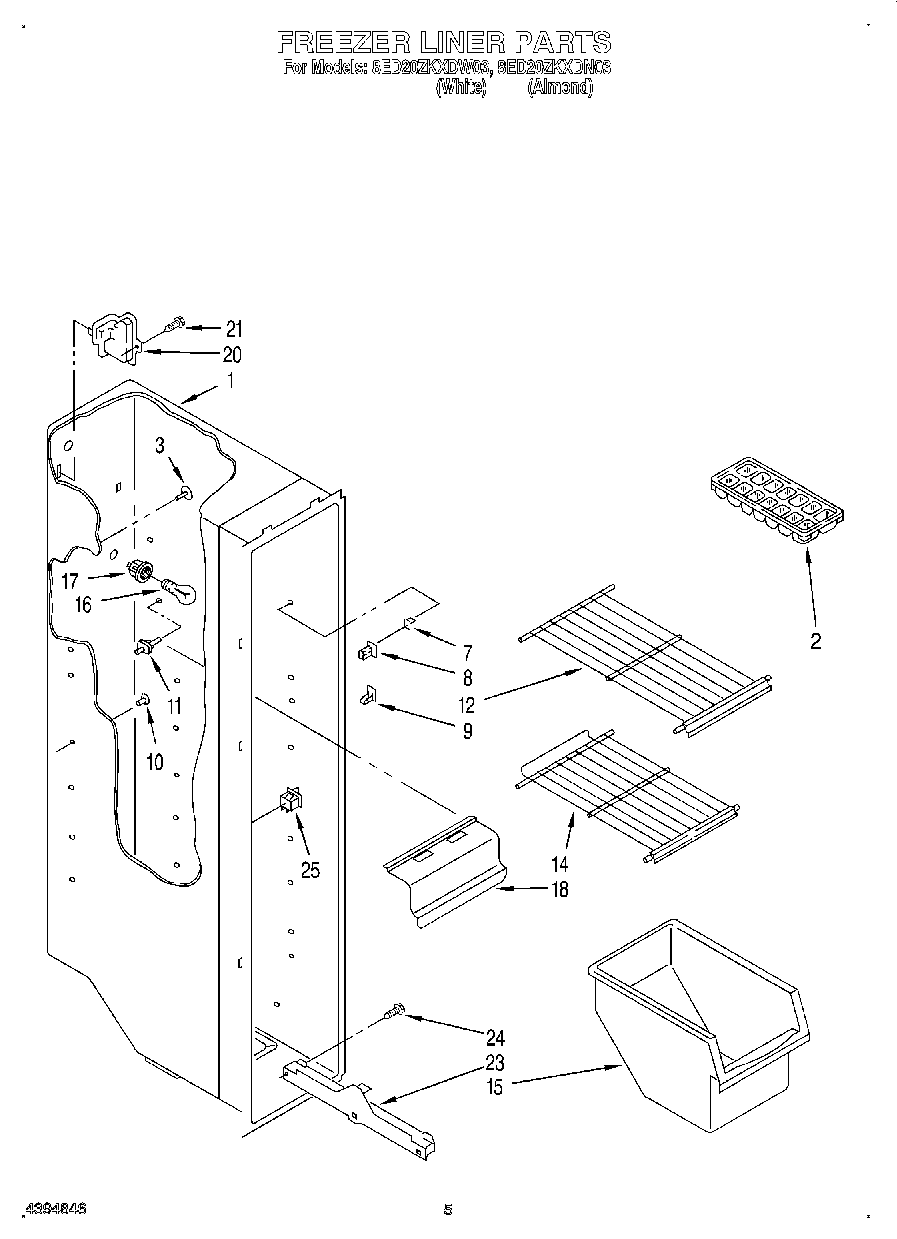

8ED20ZKXDW03 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP841180A Whirlpool Microwave Glass Turntable Tray
3	WP941839 Whirlpool Refrigerator Button Plug
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
14	Shelf (1)
14	Shelf (2)
15	Bin, Freezer
16	RANGE ONLY 40W 120V APPL BULB
17	SOCKET
18	WP2155595 Whirlpool Refrigerator Light Lens
20	Cover, Wiring
21	SCREW
23	Slide, Basket (Left Side)
23	W10845583 Whirlpool Refrigerator Track
24	718257 Whirlpool Dishwasher Screw
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
