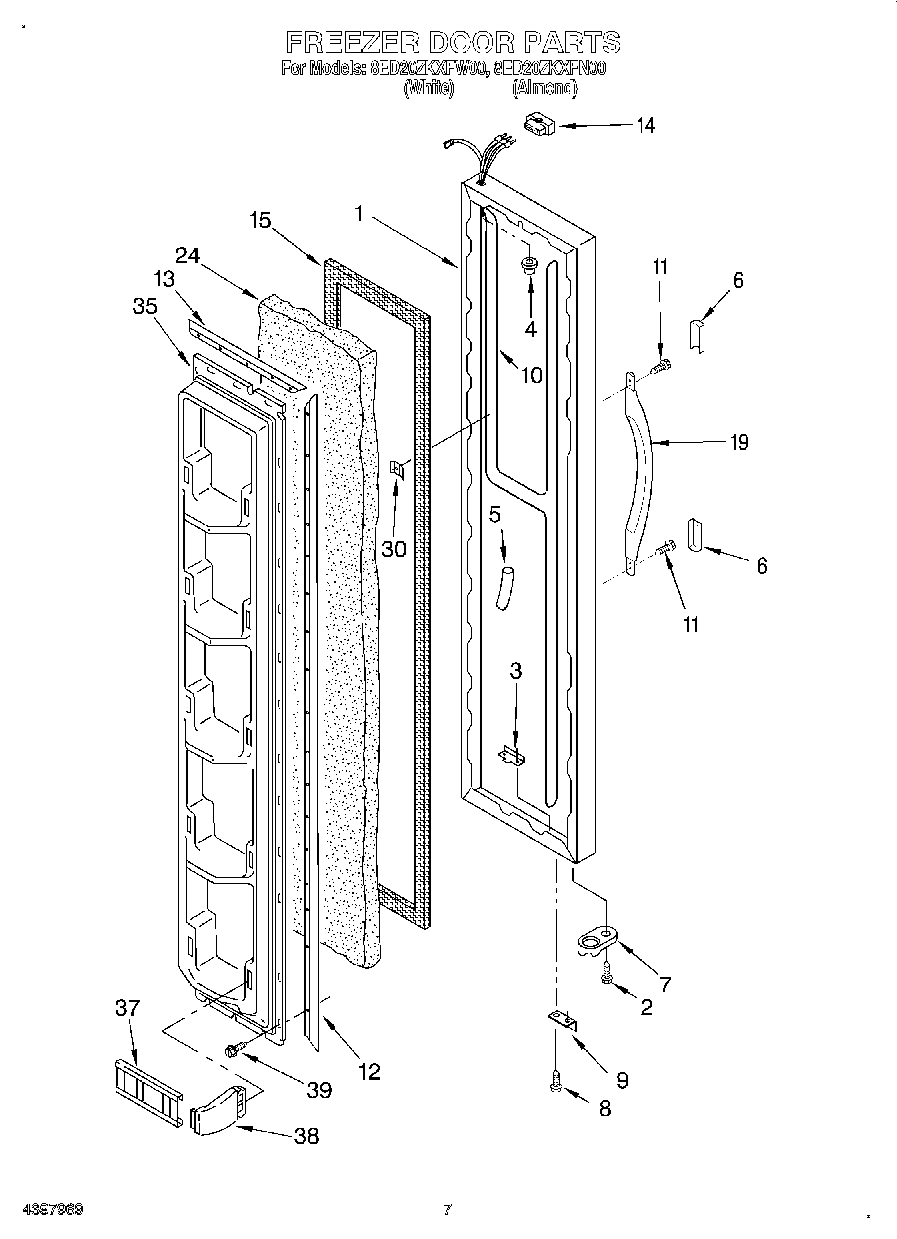

8ED20ZKXFN00 05 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond)
2	WP3400012 Whirlpool Refrigerator Screw
3	Tap, Plate
4	Cap, Hinge Sleeve (2)
5	Tube, Door Wiring
6	WP2193353W Whirlpool Refrigerator Trim Handle
6	Endcap, Handle (2) (Almond)
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Chrome)
10	Connector
11	WP489491 Whirlpool Refrigerator Screw
12	Retainer, Gasket
13	Retainer, Gasket
14	Connector
15	2188405A Whirlpool Refrigerator Door Gasket
19	Handle, Center (White)
19	Handle, Center (Almond)
24	WPL 876029
30	Screw Anchor (2)
35	Panel, Interior Door
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
