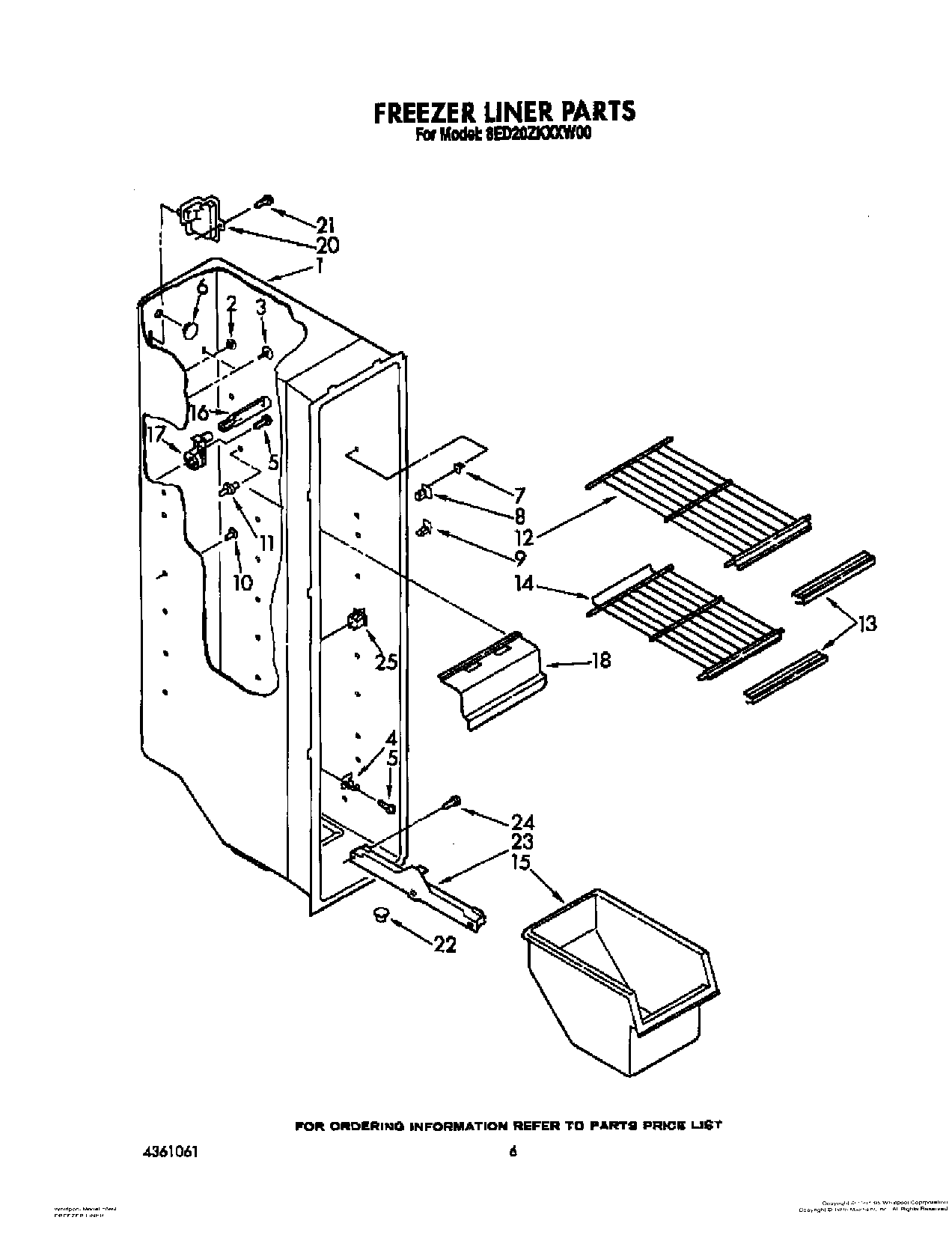

8ED20ZKXXN00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Hole Plug (2)
3WP941839 Whirlpool Refrigerator Button Plug
4Evaporator, Support
5WP489478 Whirlpool Refrigerator Screw
6WPL 655411
7Stud, Support
8Stud, Front R.S.
9Stud, Rear R.S.
10Grommet (8)
114388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12Shelf
13Trim Shelf
14Shelf (3)
15Bin, Freezer
16WP548049 Whirlpool Refrigerator Light Bulb
17Socket Assembly
18Lens, Light
20Cover, Wiring
21WP488729 Whirlpool Refrigerator Door Screw
22Fitting, Drain
23Slide, Basket (Left Side)
24718257 Whirlpool Dishwasher Screw
25W11384469 Whirlpool Door Switch
