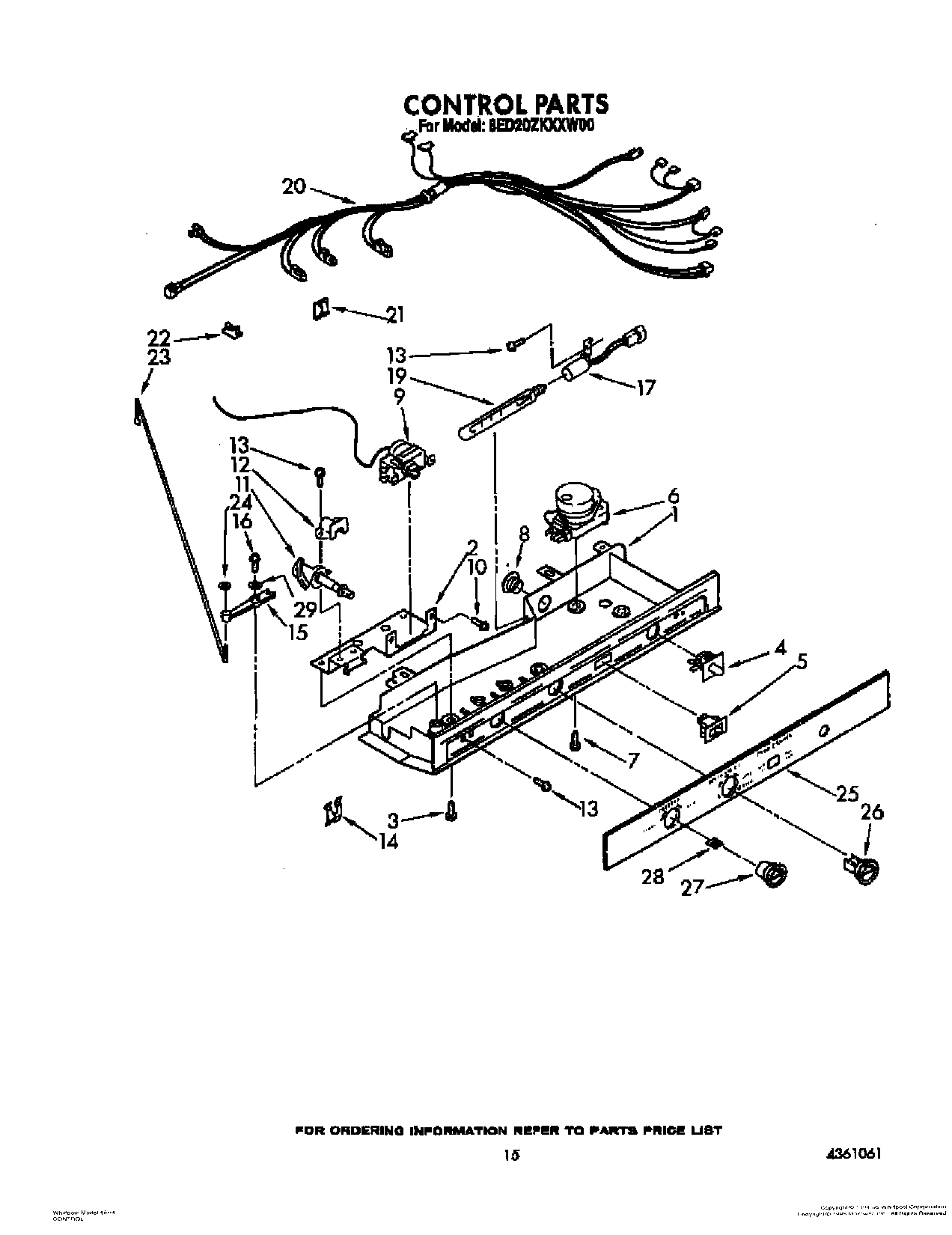

8ED20ZKXXN00 09 – CONTROL, LIT/OPTIONAL

8ED20ZKXXN00 09 – CONTROL, LIT/OPTIONAL

Written by

in

8ED20ZKXXN00 09 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Golden Harvest
Torx Key
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
350942 Whirlpool Spray Paint
Leveler (Thinner)
WPL LIT2148111
WPL LIT2156455
WPL LIT4361061
350956 Whirlpool Spray Assembly
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP938213 Whirlpool Refrigerator Power Switch
6Defrost Timer, (10 Hr.)
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
14Retainer, Damper
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
17Light Socket
19WP548049 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon Control
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
28Knob, Retainer
29876370 Whirlpool Refrigerator Insulation
29WP542638 Whirlpool Refrigerator Grease
29511873 Whirlpool Refrigerator Paint
29WP505587 Whirlpool Refrigerator Sealer
29TAPE, VINYL (3/4 X 108“)
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29833938 Whirlpool Refrigerator Terminal
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
2972032 Whirlpool Touch Up Paint Black
29606755 Whirlpool Refrigerator Bag
29WP503695 Whirlpool Refrigerator Sealer
29WPL 876029
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29489203 Whirlpool Refrigerator Washer
29212643 Whirlpool Refrigerator Permagum Sealer
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29Golden Harvest (Uncut)
29Transformer (115-230 Volt)
