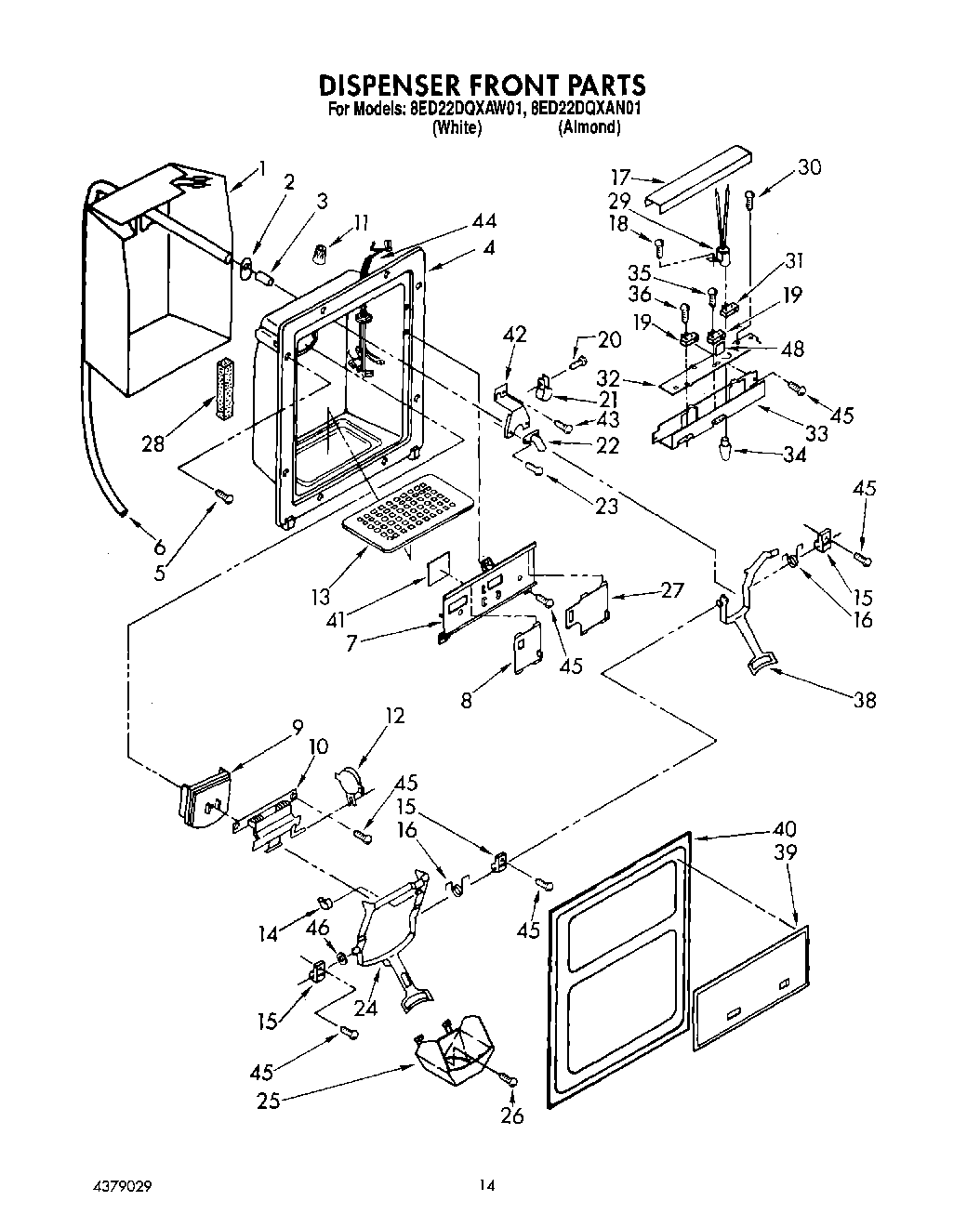

8ED22DQXAN01 09 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Frame, Slides
7	Frame, Slides (Almond)
8	Slide, Cube/Crush Switch (Almond)
8	Slide, Cube/Crush Switch
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	814037 Whirlpool Microwave Switch
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
24	Lever Assembly, Ice Dispenser (Almond)
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch (Almond)
28	Seal
29	Lamp Holder
30	Screw, 4-40 x 1
31	Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Screw
36	Screw,
38	Lever Assembly, Water Dispenser
38	Lever Assembly, Water Dispenser (Almond)
39	Plaque, Fr
39	WPL 2162690
40	Front Cover Housing (For Almond Model)
40	Front Cover, Housing
41	Heat Shield, Frame
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
48	Spacer, Switch (2)
