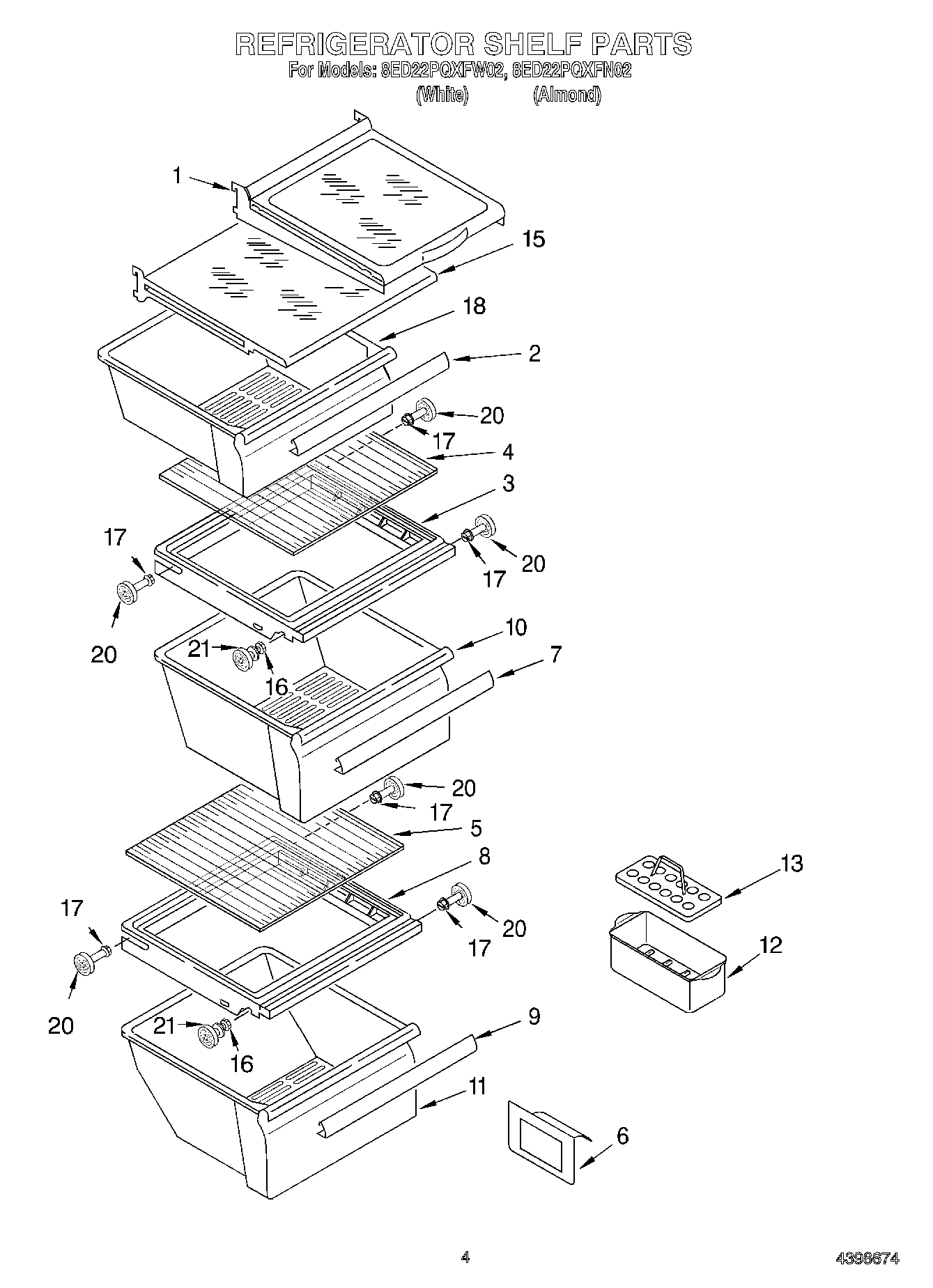

8ED22PQXFN02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2WP2179243 Whirlpool Refrigerator Pan Trim
4W10864399 Whirlpool Glass Shelf
62179350 Whirlpool Refrigerator Deflector
7Trim, Pan
8W10508993 Whirlpool Refrigerator Cover Pan
9WP2179234 Whirlpool Refrigerator Pan Trim
10WP2188661 Whirlpool Crisper Pan
11WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12W10136387A Whirlpool Refrigerator Egg Container
13WP2177817 Whirlpool Refrigerator Egg Container
15Shelf, Snack Bin
16WP3-24004-109 Whirlpool Refrigerator Screw
17WP3400806 Whirlpool Screw
18W11497323 Whirlpool Snack Pan
20WP2196483 Whirlpool Refrigerator Shelf Stud
21W11223328 Whirlpool Refrigerator Shelf Stud
