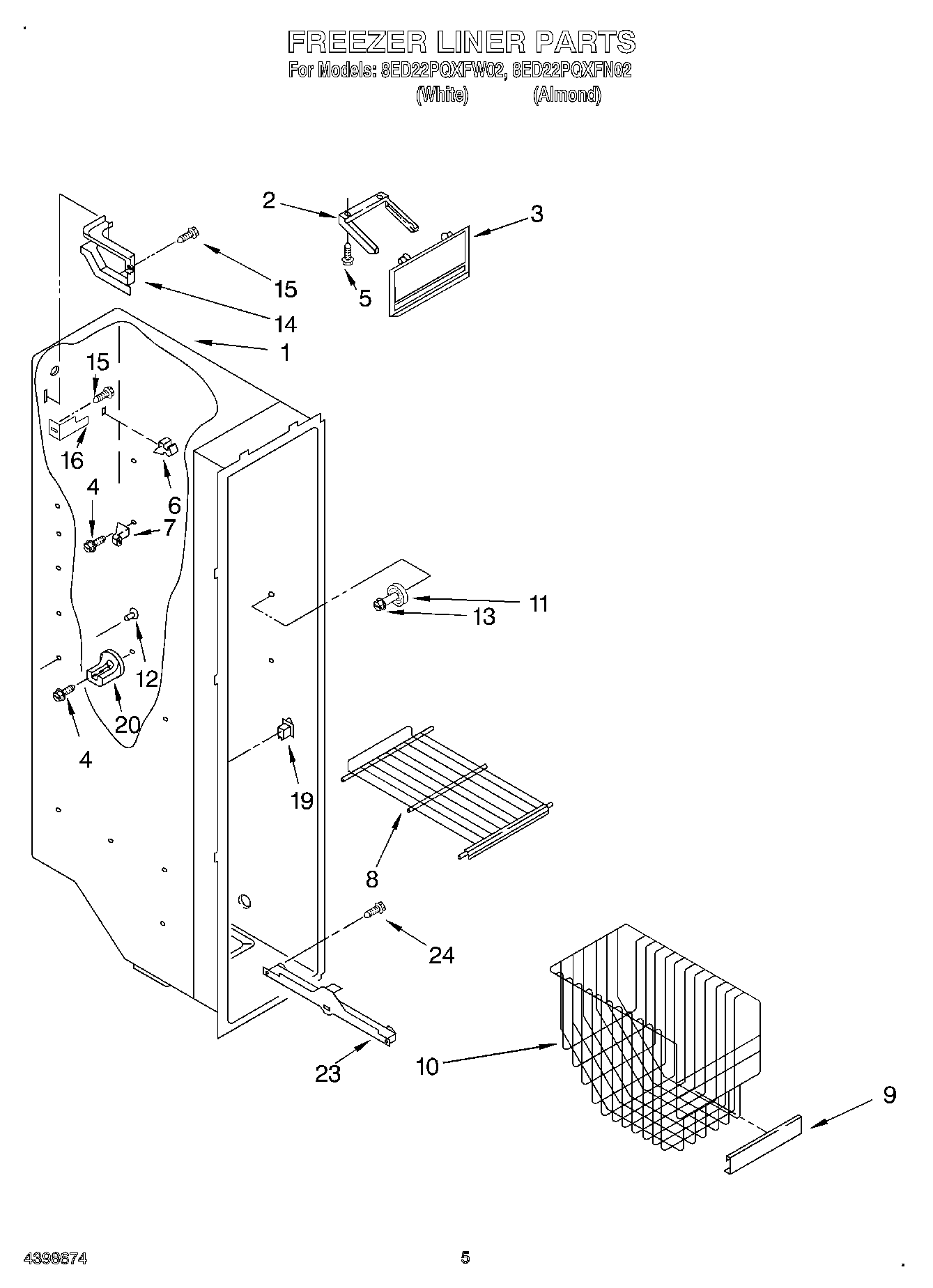

8ED22PQXFN02 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	W10142289 Whirlpool Air Conditioner Screw
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
8	Shelf (2)
9	2195904K Whirlpool Refrigerator Basket Trim
10	Freezer Bin
11	WP2196483 Whirlpool Refrigerator Shelf Stud
12	Grommet
13	WP3400806 Whirlpool Screw
14	Cover, Wiring
15	SCREW
16	Bracket, Fill Tube
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Rear
23	Slide, Basket (Left Side (2))
23	Slide, Basket (Right Side (2))
24	W10759522 Whirlpool Screw
