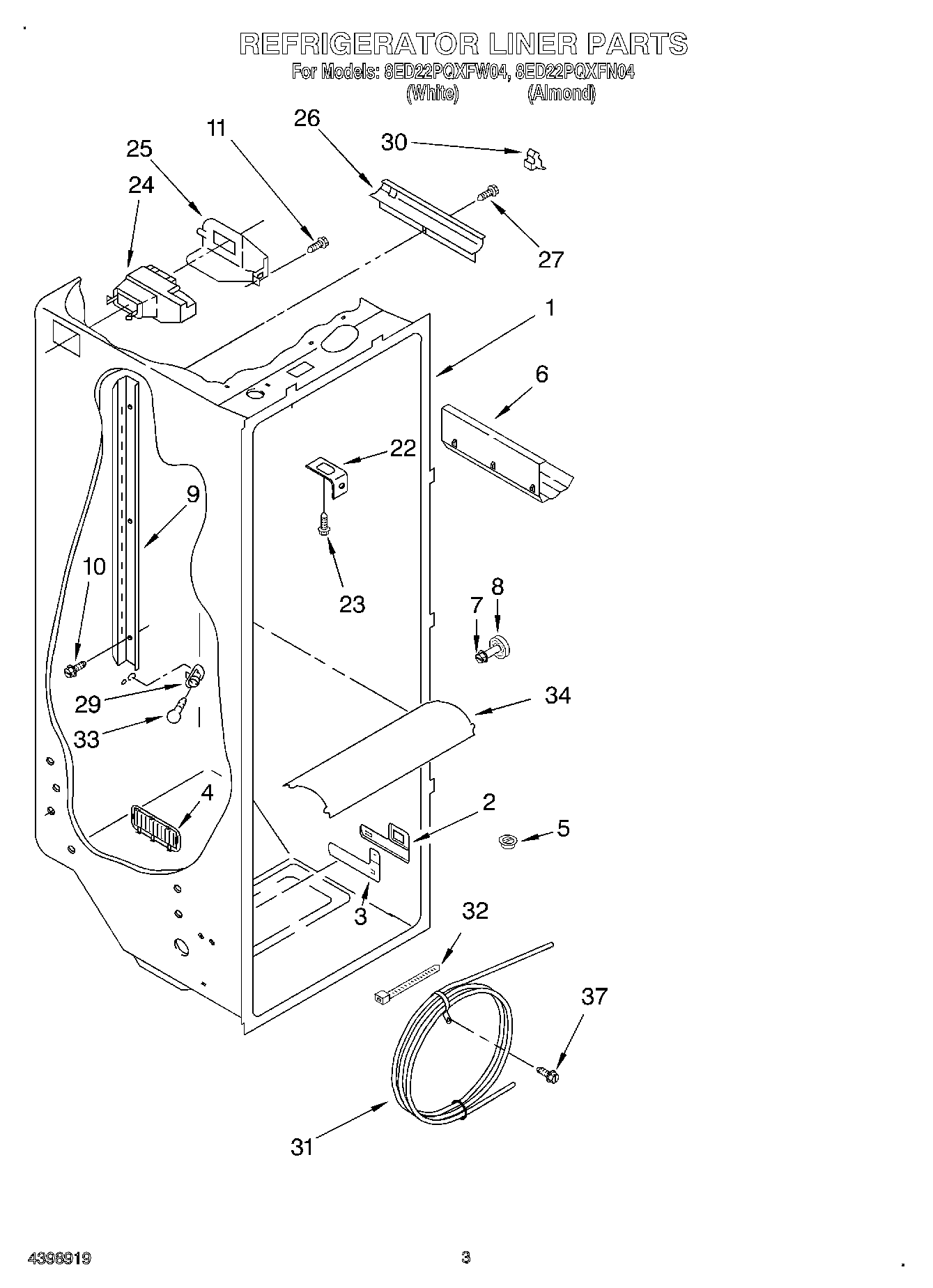

8ED22PQXFN04 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	2171846 Whirlpool Refrigerator Release Valve
6	W10777924 Whirlpool Refrigerator Wine Rack
7	WP3400806 Whirlpool Screw
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	Ladder, Shelf
10	WP488729 Whirlpool Refrigerator Door Screw
11	WP489478 Whirlpool Refrigerator Screw
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
32	WPW10339879 Whirlpool Wire Tie
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
