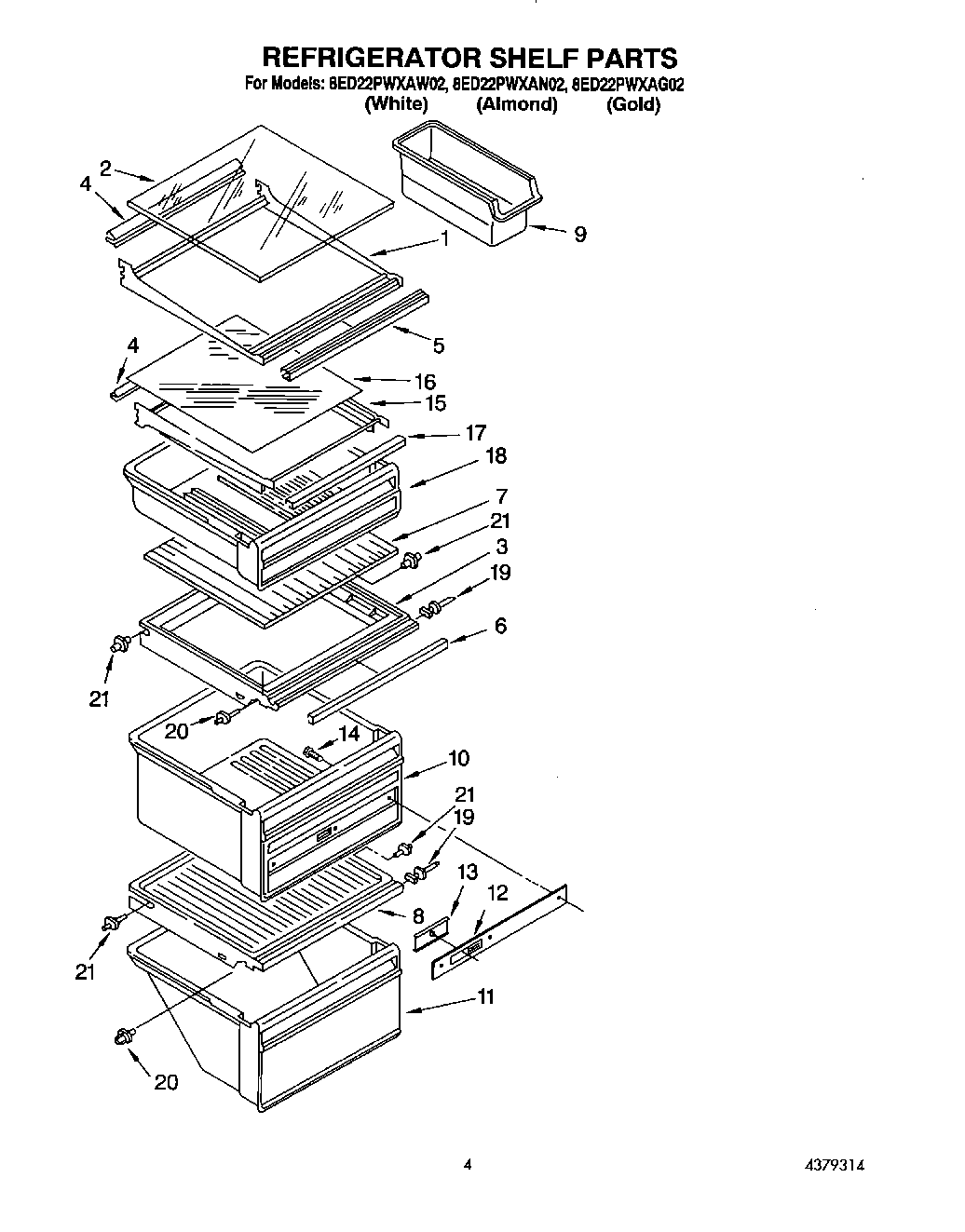

8ED22PWXAN02 03 – REFRIGERATOR SHELF

8ED22PWXAN02 03 – REFRIGERATOR SHELF

Written by

in

8ED22PWXAN02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3WP1126289 Whirlpool Refrigerator Cover
4Reflector, Shelf
5Trim, Shelf
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
9WP982704 Whirlpool Refrigerator Container
10Pan, Crisper
11Pan, Meat
12Front, Crisper Pan
13Slide
14Screw (3)
15Pan Shelf & Slide Assembly
16Glass, Shelf
17Trim, Shelf
18Snack Bin
20WP2149540 Whirlpool Shelf Support
214388538 Whirlpool Refrigerator Stud Shelf Kit (White)
