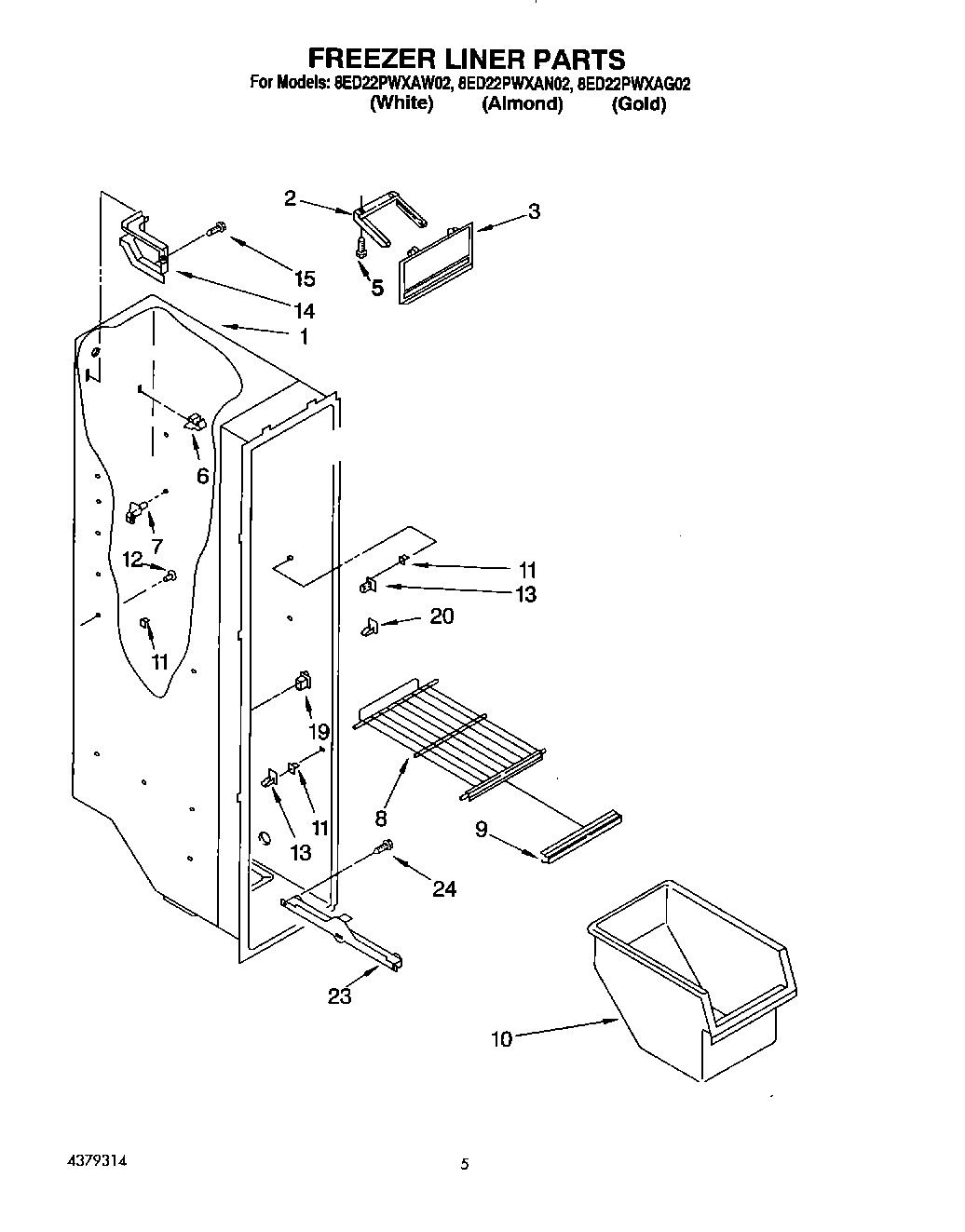

8ED22PWXAW02 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (Small)
8	Shelf (Long)
9	Trim Shelf
10	Bin, Freezer
11	Stud, Support
12	Grommet (8)
13	Stud, Front R.S.
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Rear R.S.
23	Slide, Basket (Left Side)
23	W10845583 Whirlpool Refrigerator Track
24	718257 Whirlpool Dishwasher Screw
