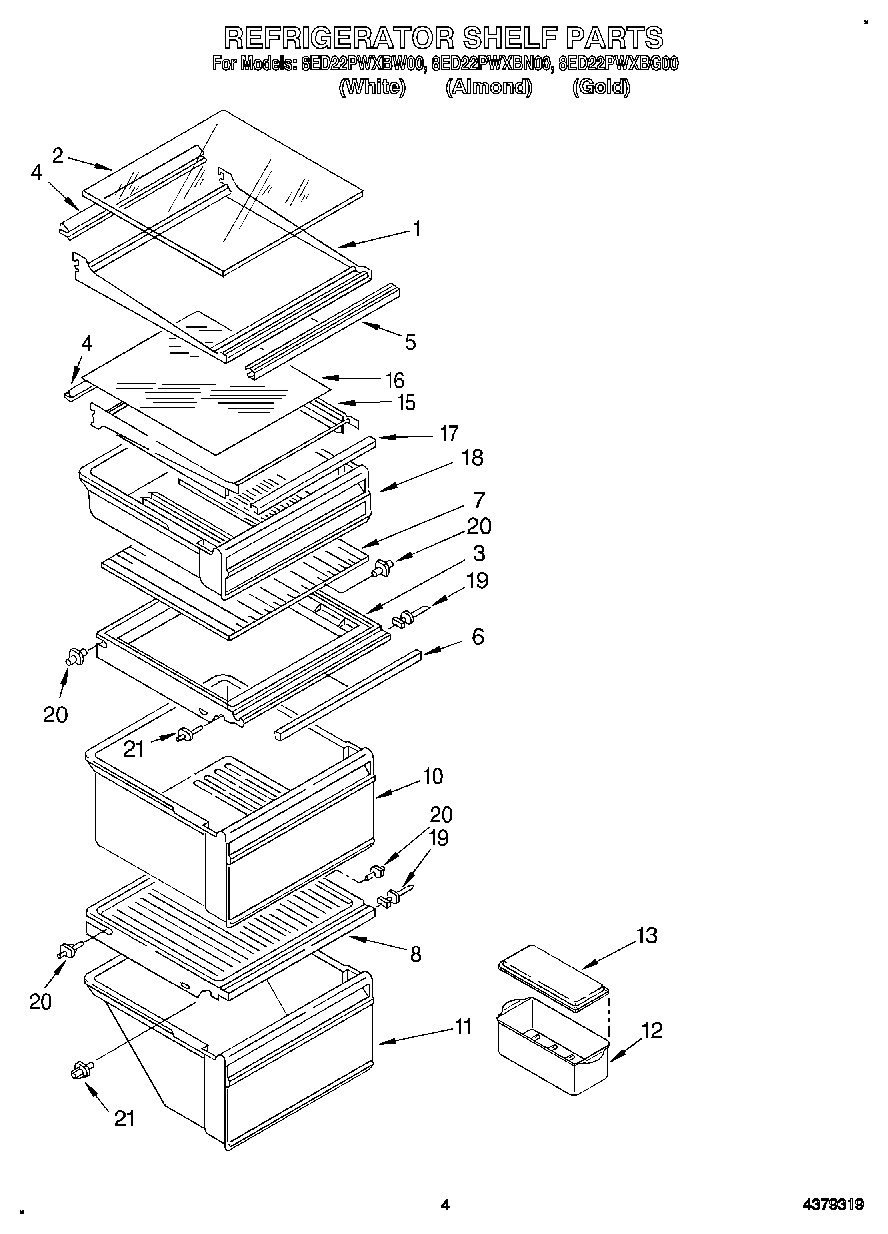

8ED22PWXBG00 03 – REFRIGERATOR SHELF

8ED22PWXBG00 03 – REFRIGERATOR SHELF

Written by

in

8ED22PWXBG00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3WP1126289 Whirlpool Refrigerator Cover
4Reflector
5Trim, Shelf
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
10WP2148279 Whirlpool Refrigerator Crisper Pan
11Meat Pan
12W10136387A Whirlpool Refrigerator Egg Container
13Cover
15Pan Shelf & Slide Assembly
16Glass, Shelf
17Trim, Front
18Snack Bin
204388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21WP2149540 Whirlpool Shelf Support
