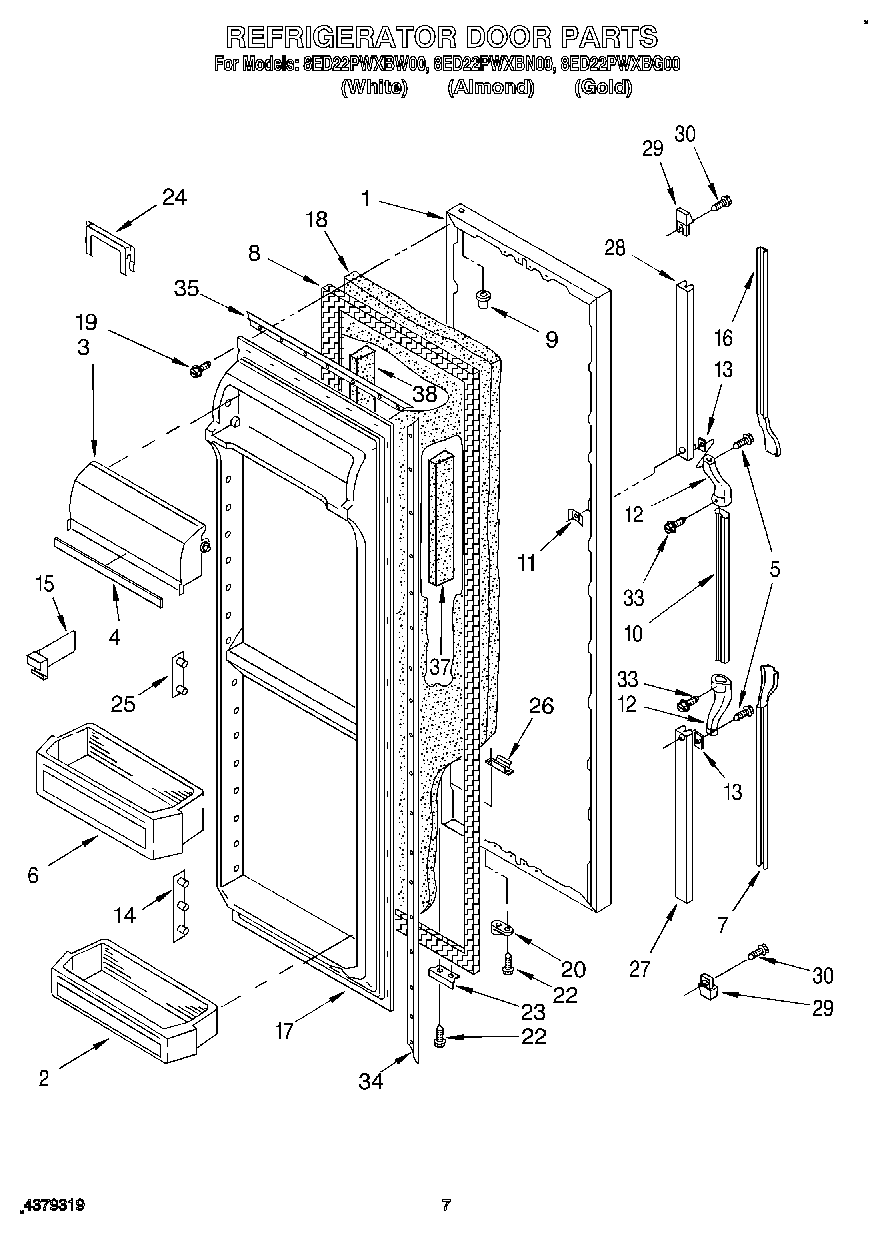

8ED22PWXBG00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Gold (Also Order Item 20))
1	Refrigerator Door (White)
1	Refrigerator Door (Almond (Also Order Item 18))
2	Shelf Bin
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (Almond)
7	Insert, Handle (White)
7	Insert, Top (Black)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Pin Plate (8)
15	Divider (3)
16	Insert, Handle (Almond)
16	Insert, Handle
16	Insert, Handle (Black)
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop
24	Retainer, Bottle
25	Pin Plate (6)
26	Tap, Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
33	Screw
34	Retainer, Gasket
35	Gasket Retainer, Top & Bottom
37	Door Dike, Hinge Side
38	Black Handle Insert
38	Trimless Black Decor Panel
38	woodgrain handle insert
38	Door Dike, Handle Side
