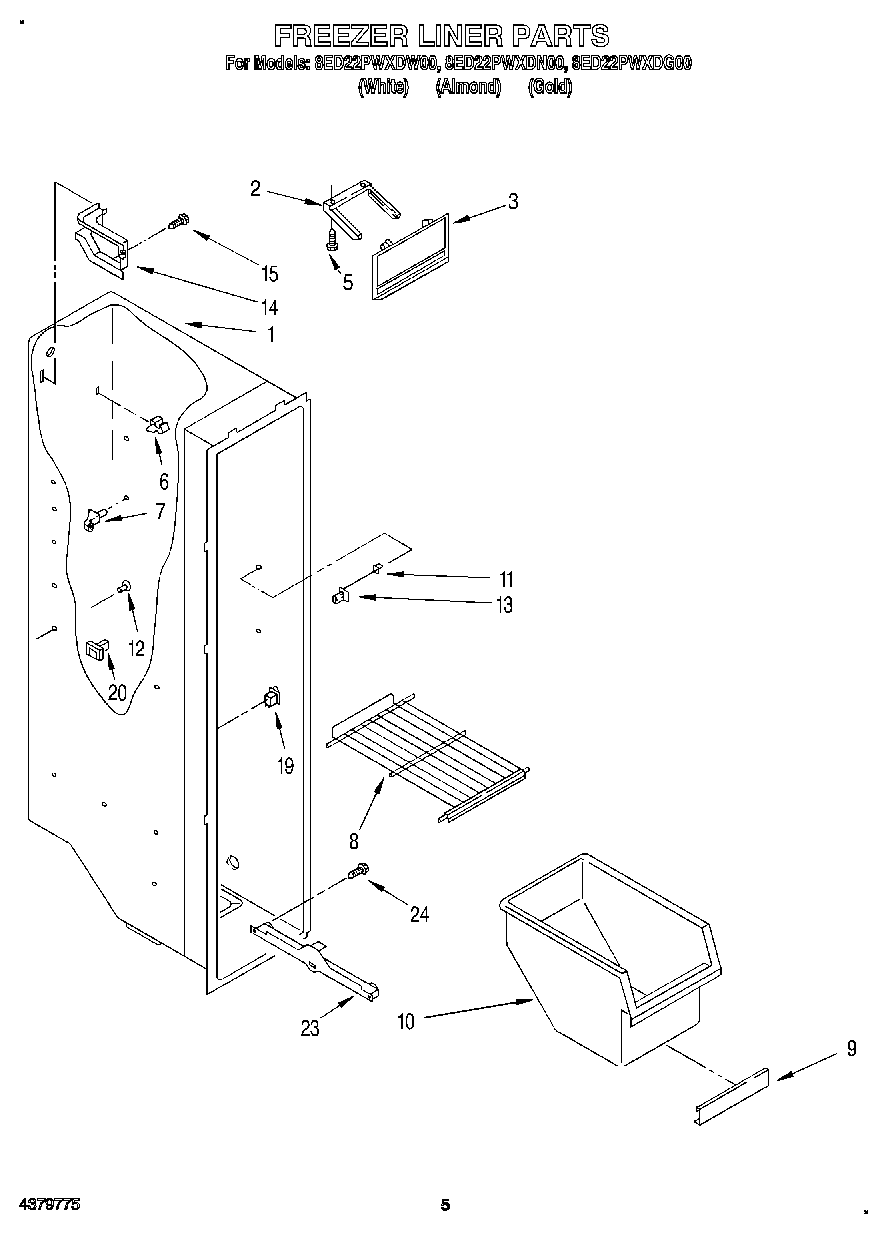

8ED22PWXDG00 04 – FREEZER LINER

8ED22PWXDG00 04 – FREEZER LINER

Written by

in

8ED22PWXDG00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
8Shelf (2)
9Trim, Basket
10Freezer Basket
11Stud, Support
12Grommet
13Stud, Front R.S.
14Cover, Wiring
15WP488729 Whirlpool Refrigerator Door Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Rear R.S.
23Slide, Basket (Left Side)
23Slide, Basket (Right Side)
24W11693756 Whirlpool Screw Assembly
