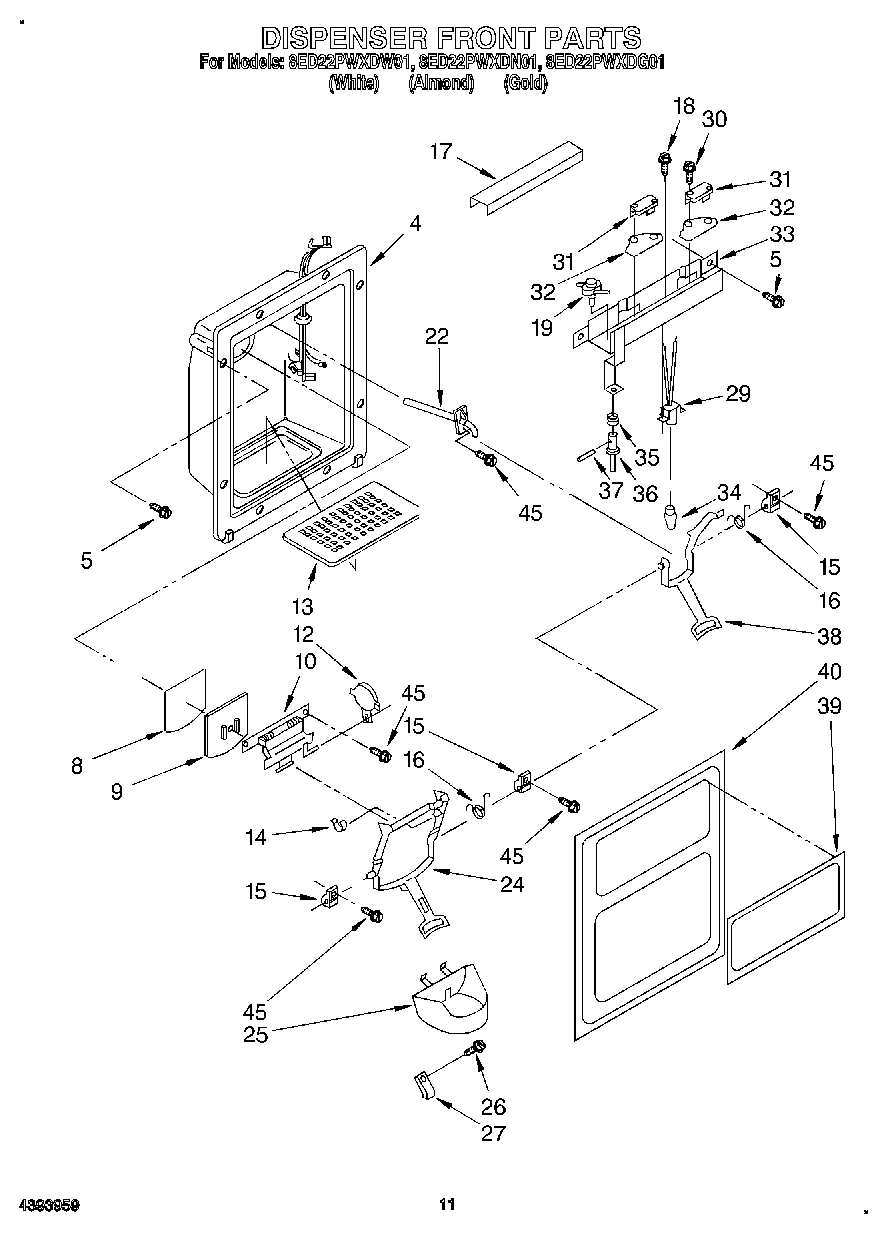

8ED22PWXDW01 08 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
8	Shield, Ice Door
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
13	Grille, Overflow (Almond)
13	Grille, Overflow (White)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever Assembly, Ice Dispenser (Black)
24	Lever, Ice Dispenser (Almond)
24	Lever, Ice Dispenser (White)
25	Guide, Ice (White)
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
27	Stop, Glass (White)
27	Stop, Glass (Almond)
27	Stop, Glass
29	Socket, Lamp
30	Screw
31	WP2162361 Whirlpool Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Spring, Plunger
36	Plunger
37	Pin, Retainer
38	Lever Assembly, Water Dispenser (Black)
38	Lever, Water Dispenser (Almond)
38	Lever, Water Dispenser (White)
39	Plaque, Front Cover (White)
39	Plaque, Front Cover
39	Plaque, Front Cover (Almond)
40	front cover, housing (includes item 39)
40	Front Cover, Housing (Includes Item 39) (White)
40	Front Cover, Housing (Includes Item 39) (Almond)
45	WP3400906 Whirlpool Refrigerator Screw
