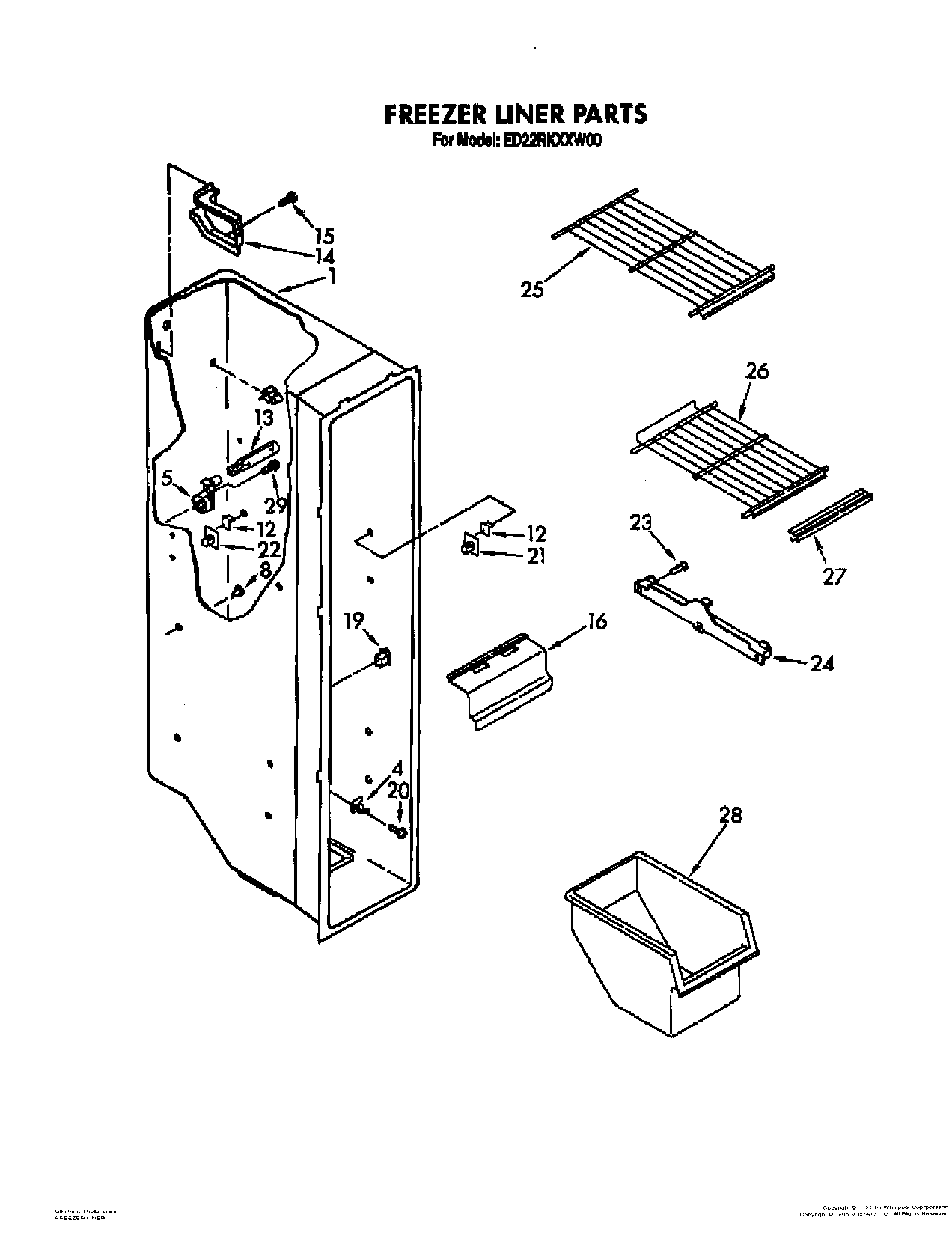

8ED22RKXXW00 05 – FREEZER LINERadmin2025-04-26T10:56:23+00:008ED22RKXXW00 05 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 4 | Evaporator, Support |
| 5 | Socket Assembly |
| 8 | Grommet (8) |
| 12 | Stud, Support |
| 13 | WP548049 Whirlpool Refrigerator Light Bulb |
| 14 | Cover, Wiring |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | Lens, Light |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | WP489478 Whirlpool Refrigerator Screw |
| 21 | Stud, Front R.S. |
| 22 | Stud, Rear R.S. |
| 23 | Screw, 8 x 1 |
| 24 | Slide, Basket (Left Side) |
| 25 | Shelf (1) |
| 26 | Shelf (Long) |
| 27 | Trim, Shelf |
| 28 | Bin, Freezer |
