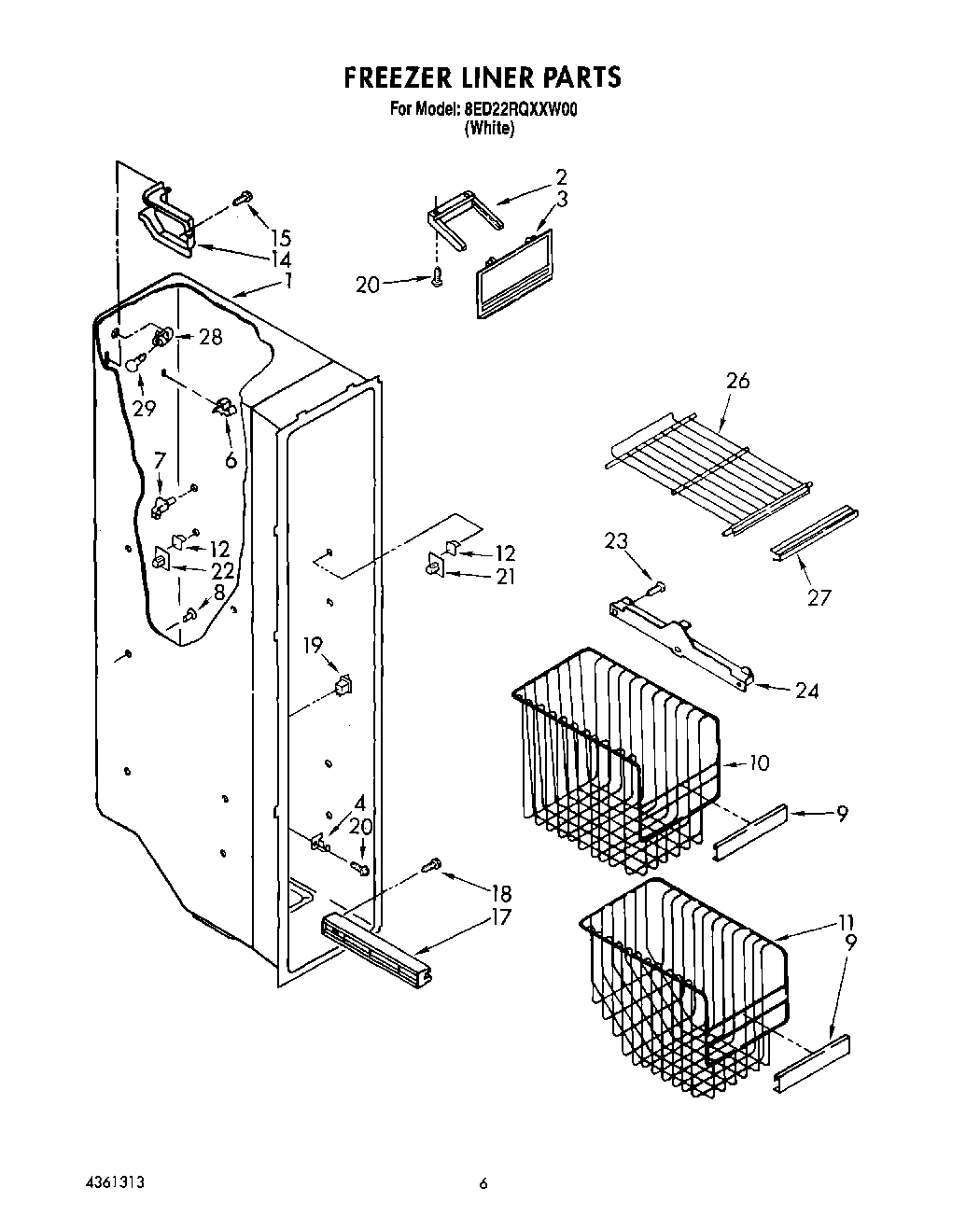

8ED22RQXXW00 05 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
4Evaporator, Support
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Grommet (8)
9Trim, Basket
10Basket, Tall
11Basket, Slope
12Stud, Support
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
17Shelf Track (Left Side (4))
17Shelf Track (Right Side (4))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP489478 Whirlpool Refrigerator Screw
21Stud, Front R.S.
22Stud, Rear R.S.
23718257 Whirlpool Dishwasher Screw
24W10845583 Whirlpool Refrigerator Track
24W10845585 Whirlpool Refrigerator Track
26Shelf (Small)
27Trim, Shelf
284387478 Whirlpool Refrigerator Light Socket
29RANGE ONLY 40W 120V APPL BULB
