8ED25DQXAW01 03 – REFRIGERATOR SHELF

8ED25DQXAW01 03 – REFRIGERATOR SHELF

Written by

in

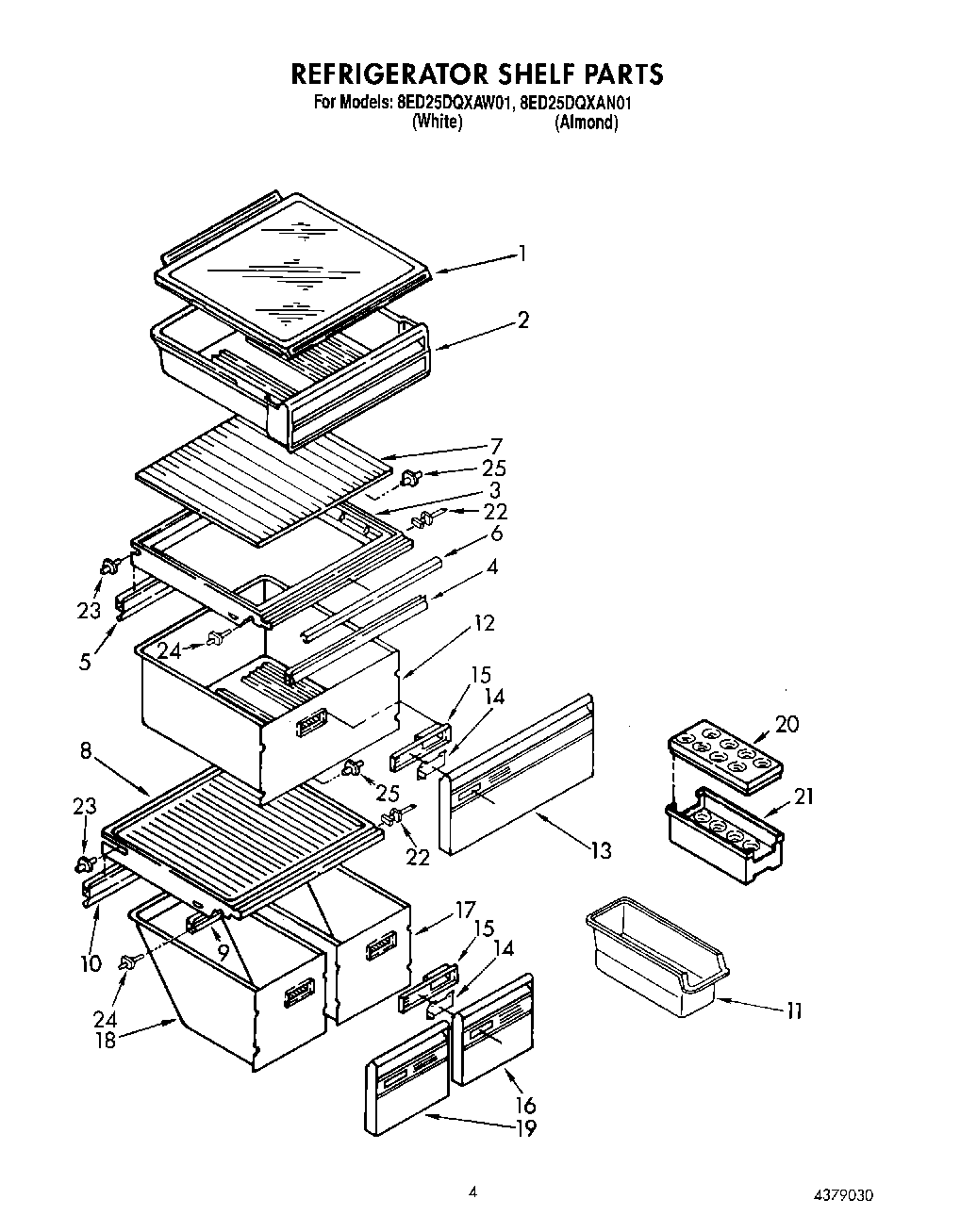

8ED25DQXAW01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Glass Sliding (3)
2Snack Bin
3WP1126289 Whirlpool Refrigerator Cover
4Gasket, Crisper (Front)
5Gasket, Crisper (Rear)
6Trim, Crisper Cover
7Glass, Crisper Cover
8Cover, Meat Pan
9Gasket (Front)
10Gasket (Rear)
11WP982704 Whirlpool Refrigerator Container
12WP2148279 Whirlpool Refrigerator Crisper Pan
13Front, Meat Pan
14Slide, Humidity Control
15Housing, Humidity Control
16Front, Crisper Pan
17Meat Pan
18Meat Pan
19Front, Meat Pan
20Egg Container-Top
21Egg Container- Bottom
23Stud (2)
24WP2149540 Whirlpool Shelf Support
254388538 Whirlpool Refrigerator Stud Shelf Kit (White)
