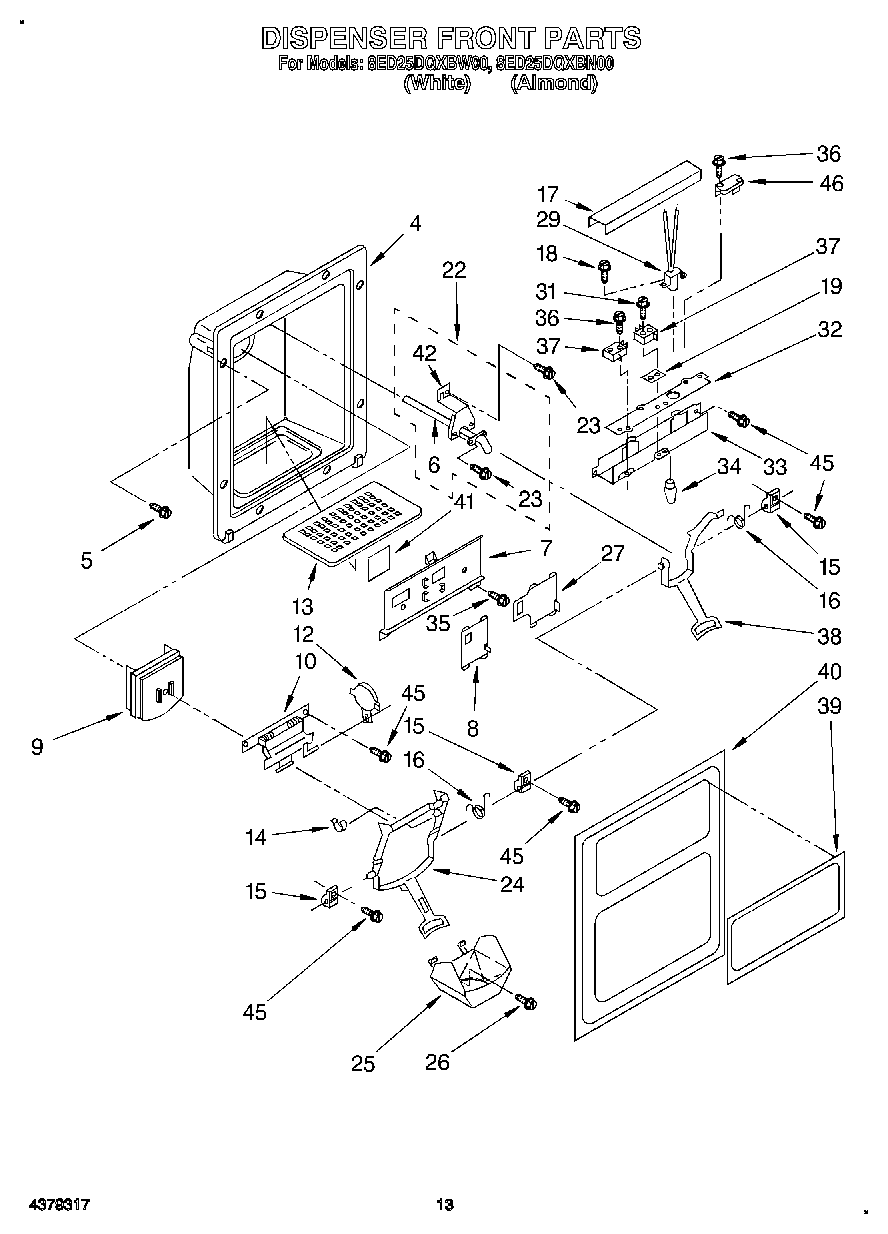

8ED25DQXBN00 08 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch (Almond)
8	Slide, Cube/Crush Switch
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
24	Lever Assembly, Ice Dispenser (Almond)
25	Guide, Ice (Almond)
25	Guide, Ice
26	Screw
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
29	Lamp Holder
31	Screw, 4-40 x 1
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	WP489069 Whirlpool Compactor Screw
36	Screw,
37	814037 Whirlpool Microwave Switch
38	WPL 2159198
38	WPL 2159197
39	Plaque, Front Cover (Almond)
39	Plaque, Front Cover (White)
40	WPL 2162926
40	WPL 2162928
41	Heat Shield, Frame
42	Bracket, Water
45	WP3400906 Whirlpool Refrigerator Screw
46	WP2162361 Whirlpool Switch
