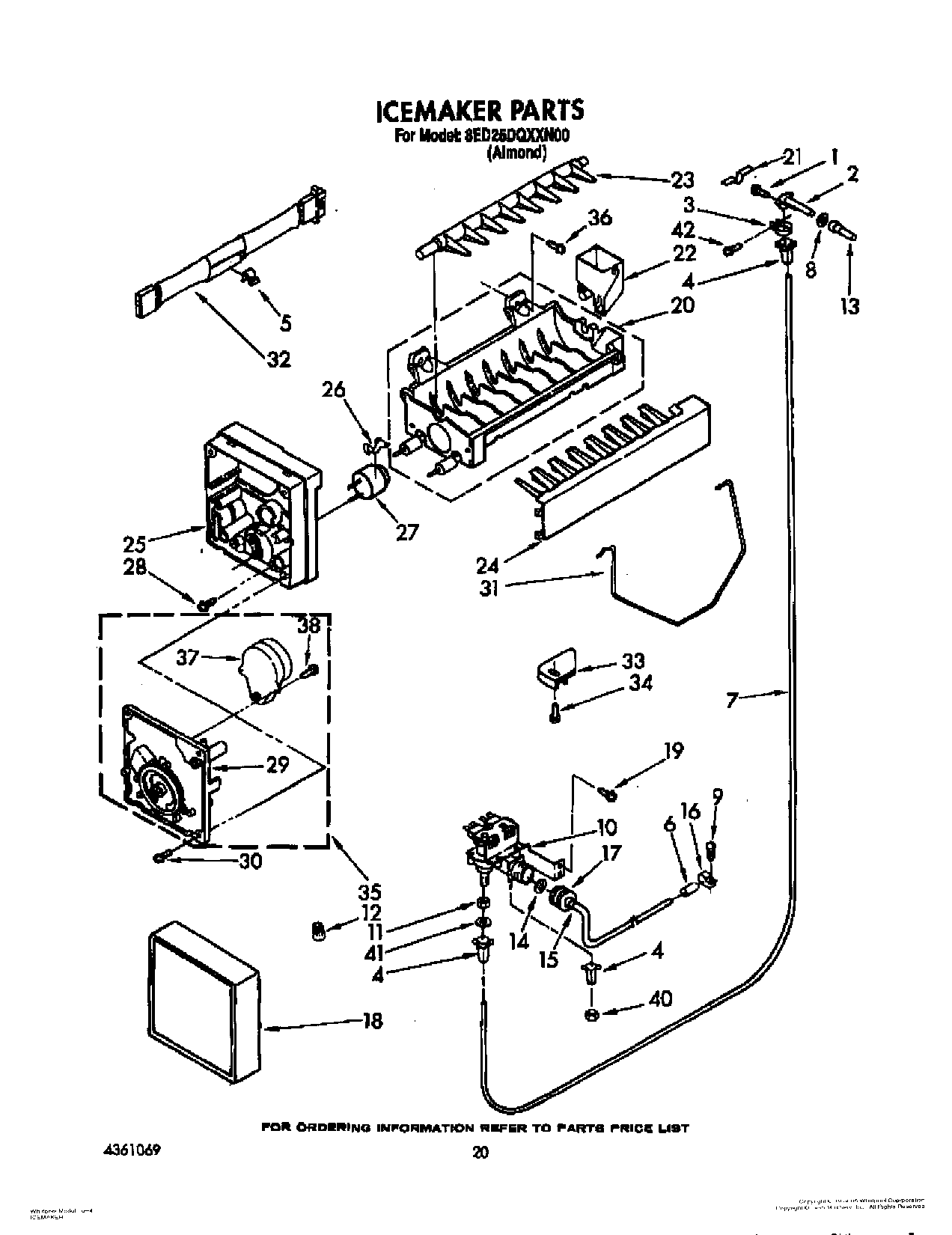

8ED25DQXXN00 13 – ICEMAKER, LIT/OPTIONAL

8ED25DQXXN00 13 – ICEMAKER, LIT/OPTIONAL

Written by

in

8ED25DQXXN00 13 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT4361069
	WPL LIT2148824
	Leveler (Thinner)
	WPL LIT628107
	350956 Whirlpool Spray Assembly
	WPL LIT2156519
	WPL LIT2148840
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	WP505587 Whirlpool Refrigerator Sealer
10	WP503695 Whirlpool Refrigerator Sealer
10	WP542638 Whirlpool Refrigerator Grease
10	TAPE, VINYL (3/4 X 108“)
10	Transformer (115-230 Volt)
10	CEMENT, ALUMILASTIC (1 1/4 OZ.)
10	Enamel, Black (1 Qt. Uncut)
10	WPL 799833
10	WPL 876029
10	72032 Whirlpool Touch Up Paint Black
10	4318046 Whirlpool Dual Water Inlet Valve
10	876370 Whirlpool Refrigerator Insulation
10	833938 Whirlpool Refrigerator Terminal
10	WP72107 Whirlpool Touchup
10	799344 Whirlpool Refrigerator Paint
10	4317943 Whirlpool Refrigerator Ice Maker Assembly
10	Almond (Uncut)
10	212643 Whirlpool Refrigerator Permagum Sealer
10	72017 Whirlpool Appliance Touch-Up Paint White
10	511873 Whirlpool Refrigerator Paint
10	606755 Whirlpool Refrigerator Bag
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Clip
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
41	“O“ Ring Seal (4)
42	“O“ Ring Seal
